MSKA21 - Exmark 21" Metro Walk-Behind Mower, Kawasaki (SN: 790000 - 849999) (2009) Engine Assembly Parts Diagram

21" Metro Walk-Behind Mower, Kawasaki

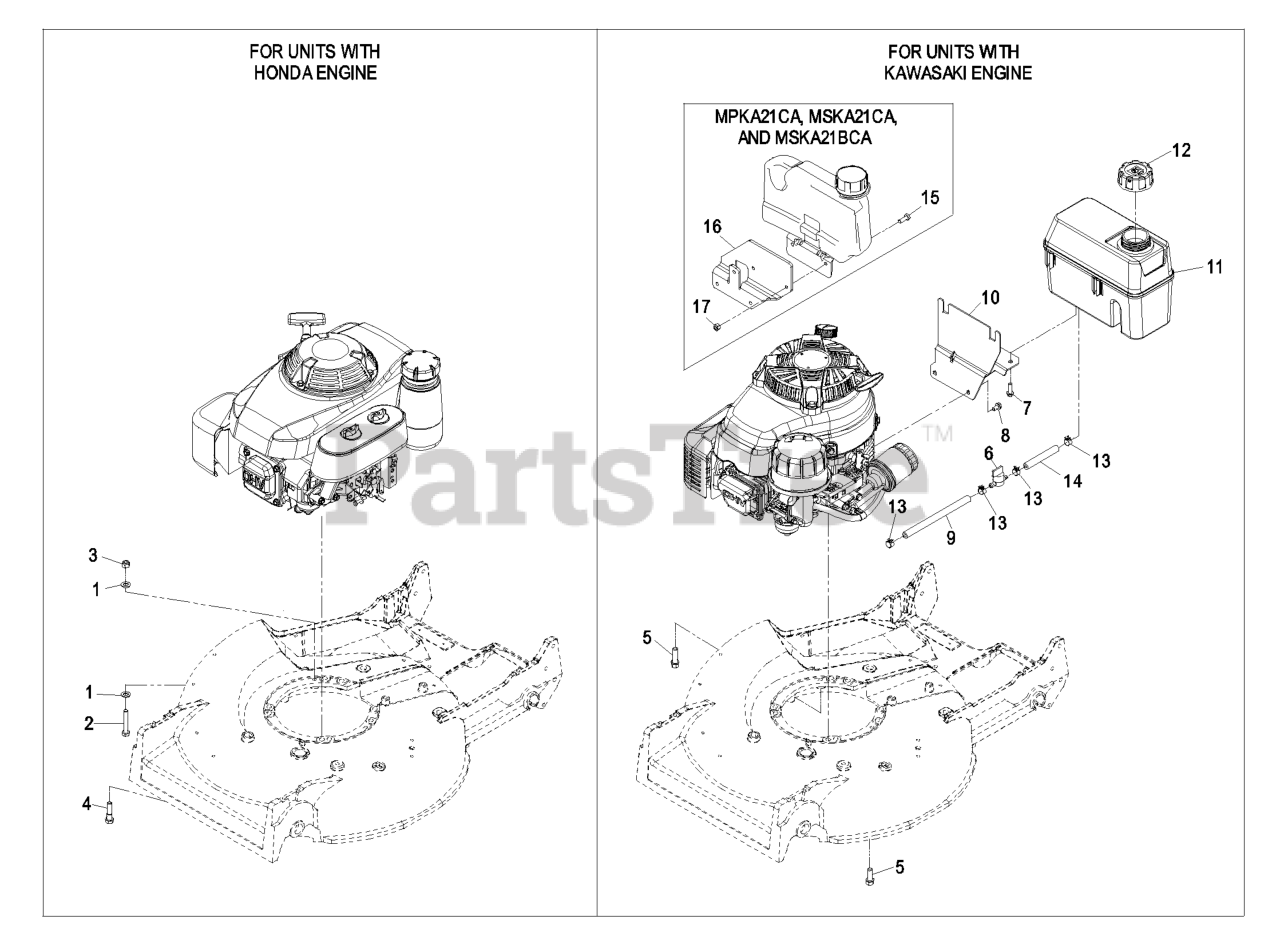

Engine Assembly Parts Diagram

  • Title

1

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

2

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

3

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Exmark 103-2678

SCREW-SHOULDER

$6.49

$

In Stock, Qty 9

0

5

Exmark 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

6

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

7

Exmark 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

8

Exmark 115-1004

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 109-0296

HOSE-FUEL

$10.99

$

In Stock, only 4 left!

0

10

Exmark 110-4950-03

115-0954-03
(Superseded to 115-0954-03)

$43.99

$

In Stock, only 3 left!

0

11

Exmark 106-0625

117-3510
(Superseded to 117-3510)

$94.99

$

Usually ships in 3-6 days

0

12

Exmark 93-7198

CAP-GAS

$15.99

$

In Stock, Qty 6

0

13

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

14

Exmark 109-0650

HOSE-FUEL

$7.99

$

In Stock, only 1 left!

0

15

Exmark 321-4

SCREW-HH

Note: For MPKA21CA, MSKA21CA, and MSKA21BCA units only.

$1.49

$

In Stock, Qty 20+

0

16

Exmark 112-9730-03

BRACKET-ADAPTER, TANK

Note: For MPKA21CA, MSKA21CA, and MSKA21BCA units only.

$

$

Not available

17

Exmark 3296-42

NUT-LOCK, NI

Note: For MPKA21CA, MSKA21CA, and MSKA21BCA units only.

$0.99

$

In Stock, Qty 20+

0
