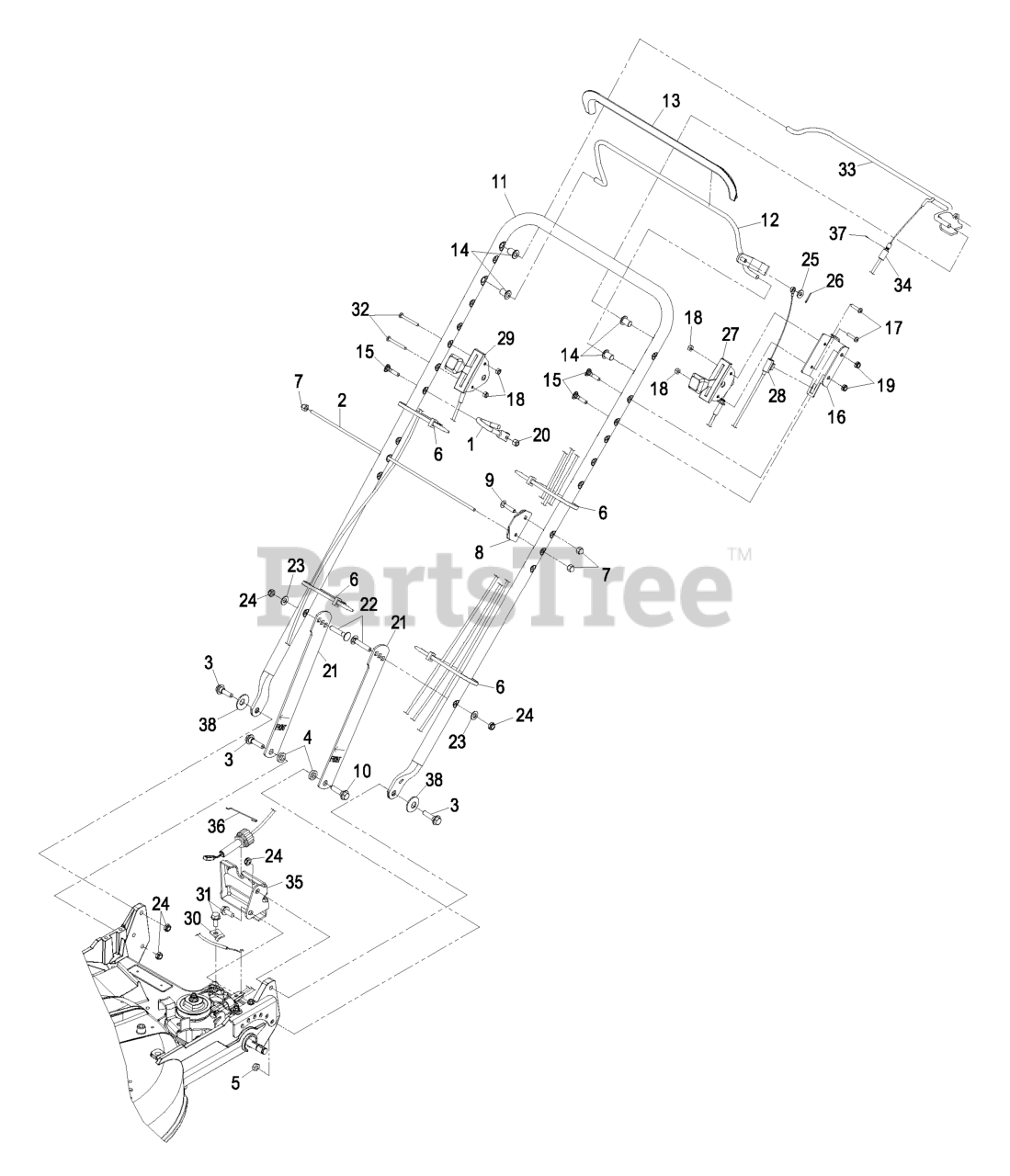

MSHN21B - Exmark 21" Metro Walk-Behind Mower, Honda (SN: 600000 - 669999) (2006) Handle Assembly For Self-Propelled Units Without Blade Brake Clutch Parts Diagram

21" Metro Walk-Behind Mower, Honda

Handle Assembly For Self-Propelled Units Without Blade Brake Clutch Parts Diagram

  • Title

1

Exmark 46-8081

GUIDE-ROPE

$22.99

$

Usually ships in 3-6 days

0

2

Exmark 103-7681

ROD,BAG SUPPORT

$

$

Not available

3

Exmark 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

4

Exmark 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

5

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 10

0

6

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

7

Exmark 32111-7

NUT-CAP

Note: For units with Kawasaki engine

$7.99

$

In Stock, only 2 left!

0

Exmark 32111-7

NUT-CAP

Note: For units with Honda engine.

$7.99

$

In Stock, only 2 left!

0

8

Exmark 104-1326

DISCONTINUED (EXMARK)
(Superseded to 104-8586)

Note: For units with Honda engine.

$

$

Not available

9

Exmark 3229-3

SCREW-CARR

Note: For units with Honda engine.

$5.49

$

Usually ships in 3-6 days

0

10

Exmark 27-7211

SCREW-SHOULDER
(Superseded to 27-7211)

$5.49

$

In Stock, only 1 left!

0

11

Exmark 103-5134-03

HANDLE

$80.99

$

Usually ships in 3-6 days

0

12

Exmark 103-7924

WLD,BAIL DEADMAN (PLATED)

$

$

Not available

13

Exmark 103-5137

PAD,DEADMAN

$

$

Not available

14

Exmark 109-2713

BUSHING

$6.49

$

In Stock, Qty 7

0

15

Exmark 92-2268

SCREW-HANDLE

$2.99

$

In Stock, only 1 left!

0

16

Exmark 103-5140-03

BRACKET,THROTTLE

$

$

Not available

17

Exmark 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

0

18

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 18

0

21

Exmark 103-4523-03

DISCONTINUED

$

$

Not available

22

Exmark 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

23

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Exmark 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Exmark 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

27

Exmark 103-4518

CABLE,THROTTLE KAWASAKI

Note: For units with Kawasaki engine

$75.99

$

In Stock, only 2 left!

0

Exmark 103-5141

109-3499
(Superseded to 109-3499)

Note: For units with Honda engine.

$

$

Not available

28

Exmark 103-4519

CABLE,BRAKE KAWASAKI

Note: For units with Kawasaki engine

$40.99

$

In Stock, only 3 left!

0

Exmark 103-5152

CABLE,BRAKE HONDA

Note: For units with Honda engine.

$52.99

$

Usually ships in 3-6 days

0

29

Exmark 103-5148

CABLE,SHIFTER

$61.99

$

Usually ships in 3-6 days

0

30

Exmark 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 3 left!

0

31

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

32

Exmark 3250-48

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

33

Exmark 103-7925

WLD,BAIL TRACTION (PLATED

$56.99

$

In Stock, only 1 left!

0

34

Exmark 103-5142

CABLE,TRACTION

$66.99

$

In Stock, Qty 9

0

35

Exmark 74-1741

BRACKET-ADJUSTMENT, TRACT

$24.99

$

Usually ships in 3-6 days

0

36

Exmark 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

37

Exmark 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

38

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 6

0
