MSHN21 - Exmark 21" Metro Walk-Behind Mower, Honda (SN: 720000 - 789999) (2008) Handle Assembly for Self-Propelled Units With Blade Brake Clutch Parts Diagram

21" Metro Walk-Behind Mower, Honda

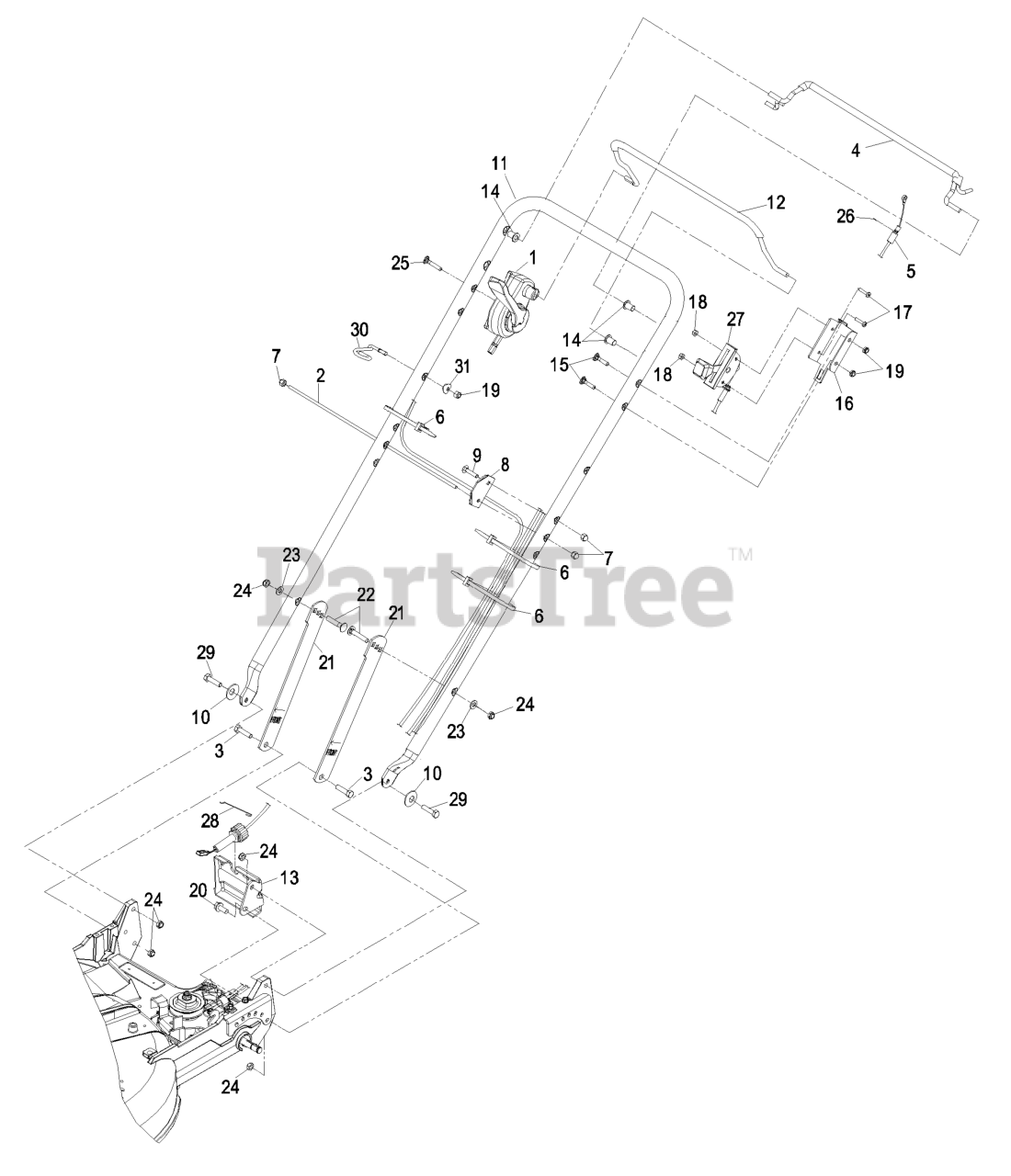

Handle Assembly for Self-Propelled Units With Blade Brake Clutch Parts Diagram

  • Title
1

Exmark 109-3068

CONTROL,BBC METRO 21

$137.99

$

In Stock, only 4 left!

0

2

Exmark 109-4982

ROD, BAG SUPPORT

$

$

Not available

3

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

4

Exmark 109-4606

ASM,TRACTION BAIL W/GRIP

$59.99

$

Usually ships in 3-6 days

0

5

Exmark 109-4845

CABLE,TRACTION M21

$70.99

$

In Stock, only 3 left!

0

6

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

7

Exmark 32111-7

NUT-CAP

Note: For units with Kawasaki engine.

$7.99

$

In Stock, only 2 left!

0

Exmark 32111-7

NUT-CAP

Note: For MSHN21B units

$7.99

$

In Stock, only 2 left!

0

8

Exmark 104-1326

DISCONTINUED (EXMARK)
(Superseded to 104-8586)

Note: For MSHN21B units

$

$

Not available

9

Exmark 3229-3

SCREW-CARR

Note: For MSHN21B units

$5.49

$

Usually ships in 3-6 days

0

10

Exmark 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

11

Exmark 109-2676-03

109-8360-03
(Superseded to 109-8360-03)

$

$

Not available

12

Exmark 109-7584

BAIL, BBC COATED

$38.99

$

Usually ships in 3-6 days

0

13

Exmark 74-1741

BRACKET-ADJUSTMENT, TRACT

$24.99

$

Usually ships in 3-6 days

0

14

Exmark 109-2713

BUSHING

$6.49

$

In Stock, Qty 7

0

15

Exmark 109-8144

BOLT-HANDLE

$

$

Not available

16

Exmark 109-5574-03

BRACKET, THROTTLE

$

$

Not available

17

Exmark 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

0

18

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 16

0

21

Exmark 109-2677-03

LATCH,HANDLE

$

$

Not available

22

Exmark 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

23

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Exmark 33113-045

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

26

$2.99

$

In Stock, Qty 20+

0

27

Exmark 103-4518

CABLE,THROTTLE KAWASAKI

Note: For MSKA21B units

$75.99

$

In Stock, only 2 left!

0

Exmark 109-7876

CABLE, THROTTLE KAWASAKI

Note: (CA) For MSKA21BCA units.

$

$

Not available

Exmark 109-3499

CABLE, THROTTLE HONDA

Note: For MSHN21B units

$

$

Not available

28

Exmark 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

29

Exmark 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

30

Exmark 114-2775

GUIDE-ROPE

$10.99

$

Usually ships in 3-6 days

0

31

Exmark 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0
