MSC 13950 - Toro Low Flow Hydraulic Kit (SN: 316000001 - 316999999) (2016) LIFT CYLINDER AND MANIFOLD ASSEMBLY Parts Diagram

Low Flow Hydraulic Kit

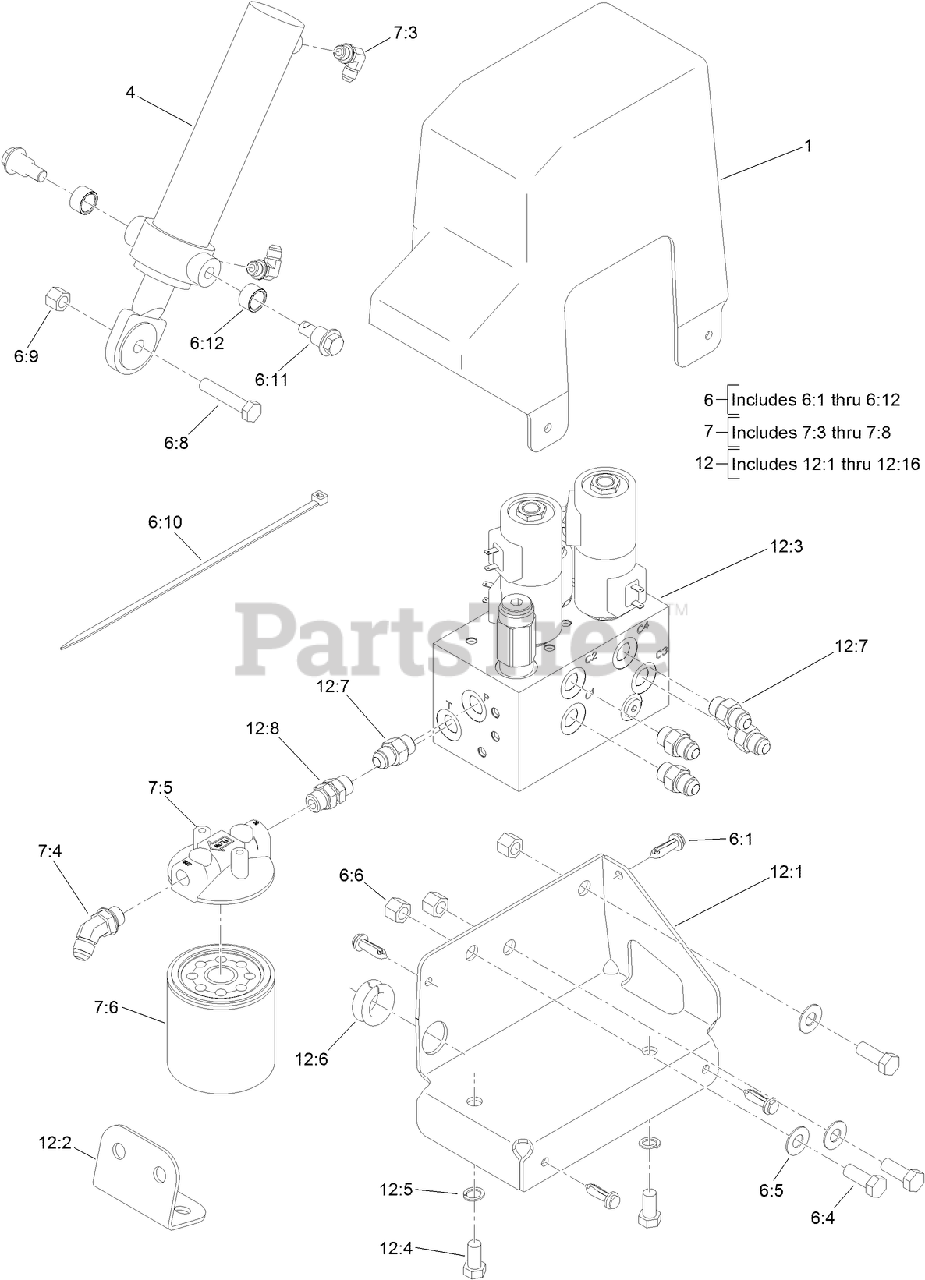

LIFT CYLINDER AND MANIFOLD ASSEMBLY Parts Diagram

  • Title

1

Toro HYD13941

COVER,MANIFOLD,GRANDSTAND

$114.99

$

Usually ships in 3-6 days

0

4

Toro HYD13944

CYLINDER,LIFT,2X8

$624.99

$

Usually ships in 3-6 days

0

6

Toro HDW13946

KIT-HDW,GRANDSTAND,VEHICLE SIDE

$55.99

$

Usually ships in 3-6 days

0

6:1

Toro HDW17303

TUFLOK RIVET

$1.99

$

Usually ships in 3-6 days

0

6:4

Toro HDW01717

HHCS,3/8-16X1 NC GR5 PLT

$1.49

$

Usually ships in 3-6 days

0

6:5

Toro HDW05859

WASHER,FLAT,3/8ST/ST 18-8

$1.49

$

Usually ships in 3-6 days

0

6:6

Toro HDW01720

NUT,3/8-16,NYL INS,YZN

$1.49

$

Usually ships in 3-6 days

0

6:8

Toro HDW05917

HHCS,1/2-13X2-1/2,GR5,PLT

$1.49

$

Usually ships in 3-6 days

0

6:9

Toro HDW01748

NUT,1/2-13,NYL INS,YZN

$1.49

$

Usually ships in 3-6 days

0

6:10

Toro MSC04088

CABLE TIES, (15) COUNT, 50#, 15-1/2,

$6.49

$

Usually ships in 3-6 days

0

6:11

Toro HDW13947

BOLT,SHOULDER,PIVOT

$34.99

$

Usually ships in 3-6 days

0

6:12

Toro HDW13948

BUSHING,.75X.75

$8.99

$

Usually ships in 3-6 days

0

7

Toro HYD13931

KIT-HOSE,GRANDSTAND,VEHICLE SIDE

$245.99

$

Usually ships in 3-6 days

0

7:3

Toro HYD13925

FITTING,90,6-MORB X 6-M37JIC

$12.99

$

Usually ships in 3-6 days

0

7:4

Toro HYD13934

FITTING,45,6-MORB X 6-M37JIC

$14.99

$

In Stock, only 1 left!

0

7:5

Toro HYD13935

HEAD,FILTER,-06ORB

$49.99

$

In Stock, only 1 left!

0

7:6

Toro HYD13936

ELEMENT,FILTER,WINTER
(Superseded to 1-633752)

$34.99

$

In Stock, only 1 left!

0

7:7

Toro HYD13937

HOSE,1/2FORF 90 SHORT X 3/8FJIC X 38

Note: Not illustrated

$78.99

$

Usually ships in 3-6 days

0

7:8

Toro HYD13938

HOSE,1/2FORF 90 LONG X 3/8FJIC X 45

Note: Not illustrated

$134.99

$

Usually ships in 3-6 days

0

12

Toro MSC13955

MANIFOLD ASM,GRANDSTAND

$2789.99

$

Usually ships in 3-6 days

0

12:1

Toro HYD13942-03

BRACKET,HYD MAN,GRANDSTAND

$55.99

$

Usually ships in 3-6 days

0

12:2

Toro HYD13943-03

MOUNTING BRACKET,BULKHEAD

$18.99

$

Usually ships in 3-6 days

0

12:3

Toro HYD13959

MANIFOLD,HYD,CONT. FLOW,2 CYL

$1938.99

$

Usually ships in 3-6 days

0

12:4

Toro HDW01743

HHCS,3/8-16X3/4 GR5 PLT

$1.49

$

Usually ships in 3-6 days

0

12:5

Toro HDW01718

WASHER,3/8,SPLIT LOCK,YZN

$1.49

$

Usually ships in 3-6 days

0

12:6

Toro TGS05834

GROMMET,3/4 ID X 1OD X 1/4GROOVE,TGS

$2.99

$

Usually ships in 3-6 days

0

12:7

Toro HYD13932

FITTING,STRAIGHT,6-MORB X 6-M37JIC

$7.49

$

In Stock, only 1 left!

0

12:8

Toro HYD13933

FITTING,STRAIGNT,6-MORB X 6-MORB

$25.99

$

In Stock, only 1 left!

0

12:10

Toro HYD13940

HOSE,3/8FJIC X 3/8FJIC90 X 50

Note: Not illustrated

$105.99

$

Usually ships in 3-6 days

0

12:11

Toro HYD13159

FITTING,BULKHEAD,1/4MJIC X 1/4MNPT

Note: Not illustrated

$20.99

$

Usually ships in 3-6 days

0

12:12

Toro HYD13160

FITTING,QUICK CONNECT,FEMALE,1/4FNPT

Note: Not illustrated

$50.99

$

Usually ships in 3-6 days

0

12:13

Toro HYD13161

FITTING,QUICK CONNECT,MALE,1/4FNPT

Note: Not illustrated

$23.99

$

Usually ships in 3-6 days

0

12:14

Toro HYD12231

DUST CAP,FEMALE,QUICK CONNECT,UTV

Note: Not illustrated

$8.49

$

Usually ships in 3-6 days

0

12:15

Toro HYD12230

DUST PLUG,MALE,QUICK CONNECT,UTV

Note: Not illustrated

$8.49

$

Usually ships in 3-6 days

0

12:16

Toro MSC13901

CONTROL HARNESS, GRANDSTAND
(Superseded to MSC13819)

Note: Not illustrated

$92.99

$

Usually ships in 3-6 days

0

12:9

Toro HYD13939

HOSE,1/4FJIC X 3/8FJIC90 X 37

Note: Not illustrated

$90.99

$

Usually ships in 3-6 days

0
