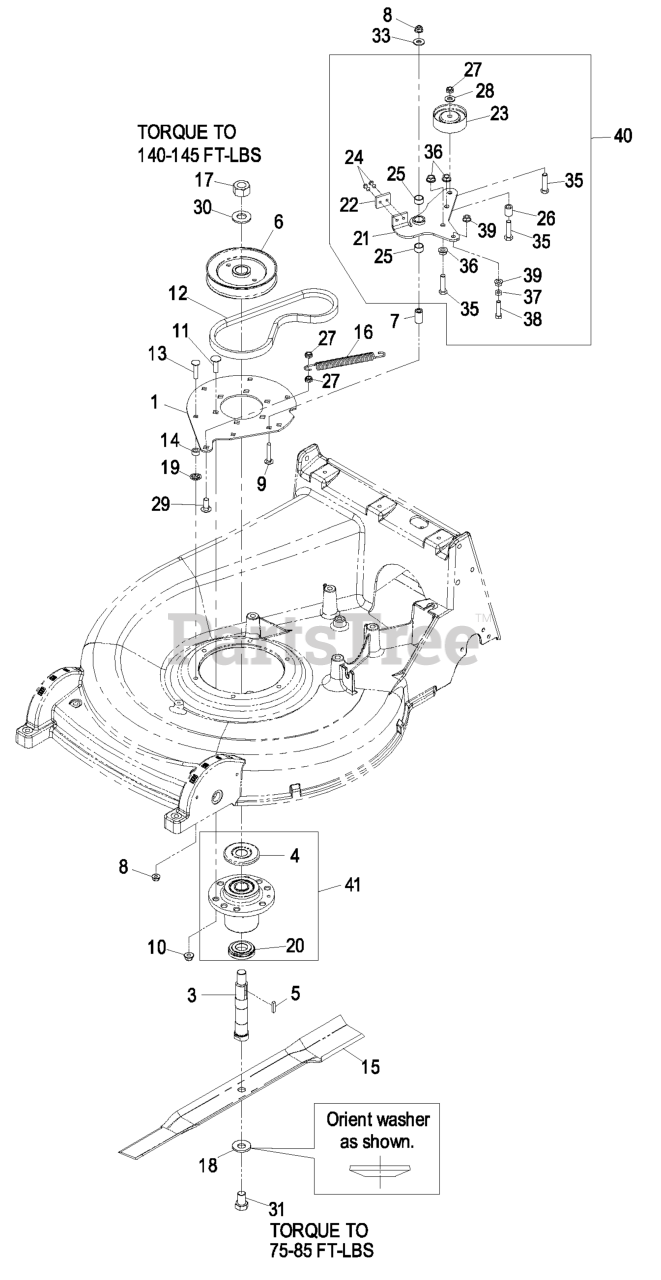

MS6KA26B - Exmark 26" Metro Walk-Behind Mower, 6hp Kawasaki (SN: 850000 - 919999) (2010) Blade & Spindle Assembly Parts Diagram

26" Metro Walk-Behind Mower, 6hp Kawasaki

Blade & Spindle Assembly Parts Diagram

  • Title

1

Exmark 116-0092-03

PLATE-ADAPTER, HOUSING

$

$

Not available

3

Exmark 109-2650

SHAFT-SPINDLE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindle & screw, spindle & bearings and spindle & sheave and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$107.99

$

Usually ships in 3-6 days

0

4

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindle & screw, spindle & bearings and spindle & sheave and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$5.49

$

In Stock, only 2 left!

0

5

Exmark 1-807268

KEY-RECTANGLE

$2.99

$

In Stock, Qty 14

0

6

Exmark 116-0821

SHEAVE-SPLIT, STEEL (W/HU

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindle & screw, spindle & bearings and spindle & sheave and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$72.99

$

Usually ships in 3-6 days

0

7

Exmark 103-7108

BUSHING-ARM, IDLER

$26.99

$

Usually ships in 3-6 days

0

8

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

9

Exmark 116-0629

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

10

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

12

Exmark 116-0823

BELT
(Superseded to 116-0823-SL)

$47.99

$

Usually ships in 3-6 days

0

13

Exmark 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

14

Exmark 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

15

Exmark 109-0343

BLADE

$52.99

$

In Stock, Qty 10

0

Exmark 103-6422

BLADE, METRO 26

Note: Requires installation of mulch kit for proper mulching. Mulch kit P/N MK26.

$33.99

$

In Stock, only 1 left!

0

16

Exmark 103-7896

SPRING-BRAKE

$21.99

$

Usually ships in 3-6 days

0

17

Exmark 3217-46

NUT-HH

$12.99

$

In Stock, Qty 13

0

18

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

19

Exmark 78-7170

RING-RETAINING

$1.49

$

In Stock, Qty 17

0

20

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

21

Exmark 116-1408

ASM,IDLER ARM W/BSHGS

Note: Includes items #22, #24, & #25.

$148.99

$

Usually ships in 3-6 days

0

22

Exmark 116-0959

PAD-BRAKE

$

$

Not available

23

Exmark 109-3546

PULLEY-IDLER

$66.99

$

Usually ships in 3-6 days

0

24

Exmark 103-0138

RIVET-POP

$1.49

$

In Stock, Qty 18

0

25

Exmark 103-6111

BEARING

$7.99

$

In Stock, Qty 6

0

26

Exmark 1-633080

BUSHING-LEVER, LIFT

$10.99

$

Usually ships in 3-6 days

0

27

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

28

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

30

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 15

0

31

Exmark 103-1026

SCREW-CAP

$5.49

$

In Stock, Qty 13

0

33

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

37

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

38

Exmark 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

39

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

40

Exmark 116-0096

IDLER ARM ASM

$245.99

$

Usually ships in 3-6 days

0

41

Exmark 103-8280

KIT, CUTTER HOUSING

$254.99

$

In Stock, only 3 left!

0

42

Exmark 109-3559

ASM,CUTTER HOUSING COMPLE

Note: Complete cutter housing assembly contains items, #3, #5, #6, #17, #18, #30, #31, & #41.

$

$

Not available
