MS6KA26B - Exmark 26" Metro Walk-Behind Mower, 6hp Kawasaki (SN: 790000 - 849999) (2009) Deck and Wheel Assembly (Cont.) (Part 2) Parts Diagram

26" Metro Walk-Behind Mower, 6hp Kawasaki

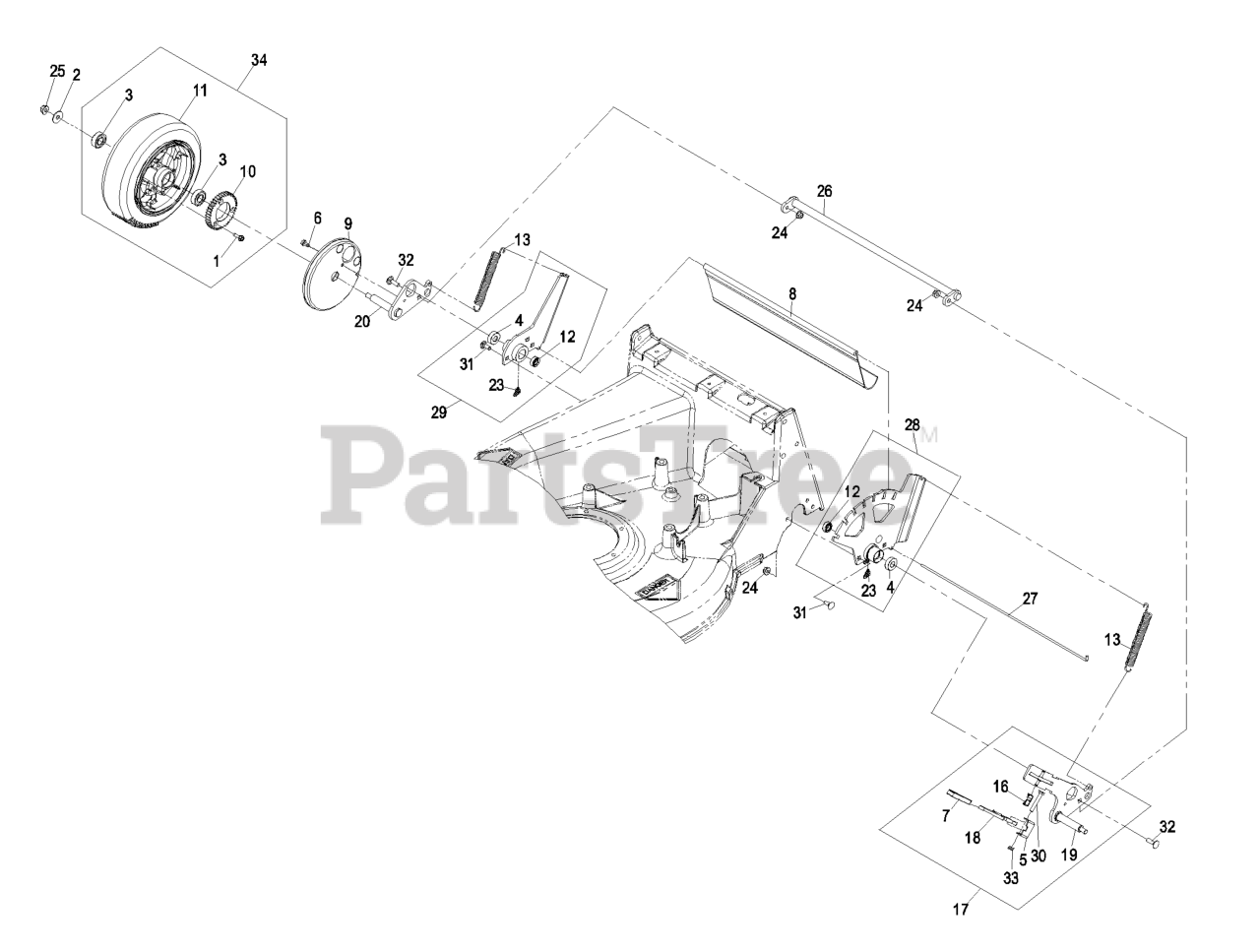

Deck and Wheel Assembly (Cont.) (Part 2) Parts Diagram

  • Title

1

Exmark 116-0606

SCREW-TORX

$9.49

$

In Stock, Qty 6

0

2

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 13

0

3

Exmark 103-6103

BEARING-BALL

$25.99

$

In Stock, Qty 5

0

4

Exmark 103-6110

BEARING-AXLE, REAR

$54.99

$

Usually ships in 3-6 days

0

5

Exmark 103-6158

BRACKET-PIVOT, LIFT

$20.99

$

Usually ships in 3-6 days

0

6

Exmark 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

7

Exmark 103-6165

COVER-HANDLE

$5.99

$

Usually ships in 3-6 days

0

8

Exmark 109-5974

SHIELD-REAR

$13.99

$

Usually ships in 3-6 days

0

9

Exmark 103-6441

COVER-GEAR

$17.99

$

In Stock, only 2 left!

0

10

Exmark 103-6445

GEAR-DRIVEN

$43.99

$

In Stock, only 2 left!

0

11

Exmark 103-9975

ASM,10" TIRE AND WHEEL

$93.99

$

In Stock, Qty 7

0

12

Exmark 103-7654

SEAL-AXLE

$17.99

$

Usually ships in 3-6 days

0

13

Exmark 103-7659

SPRING-ASSIST, LIFT

$21.99

$

Usually ships in 3-6 days

0

16

Exmark 103-7897

SPRING-LATCH

$18.99

$

In Stock, only 1 left!

0

17

Exmark 103-8225

ASM,REAR ADJUSTER

$285.99

$

Usually ships in 3-6 days

0

18

Exmark 103-8226

LEVER-LIFT

$29.99

$

Usually ships in 3-6 days

0

19

Exmark 103-8227

ARM-AXLE, LH

$140.99

$

Usually ships in 3-6 days

0

20

Exmark 103-8229

ARM-AXLE, RH

$140.99

$

Usually ships in 3-6 days

0

23

Exmark 103-8864

FITTING-GREASE

$9.49

$

Usually ships in 3-6 days

0

24

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

25

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Exmark 109-2456-03

ROD-TORQUE

$84.99

$

Usually ships in 3-6 days

0

27

Exmark 109-2458

ROD-SHIELD

$13.99

$

Usually ships in 3-6 days

0

28

Exmark 109-2833

LH BEARING SUPPORT ASM

$223.99

$

Usually ships in 3-6 days

0

29

Exmark 109-2834

RH BEARING SUPPORT ASM

$223.99

$

Usually ships in 3-6 days

0

30

Exmark 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

32

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

33

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Exmark 112-8707

10 INCH WHEEL ASM

$189.99

$

Usually ships in 3-6 days

0
