MS6KA26B - Exmark 26" Metro Walk-Behind Mower, 6hp Kawasaki (SN: 720000 - 789999) (2008) Engine Assembly Parts Diagram

26" Metro Walk-Behind Mower, 6hp Kawasaki

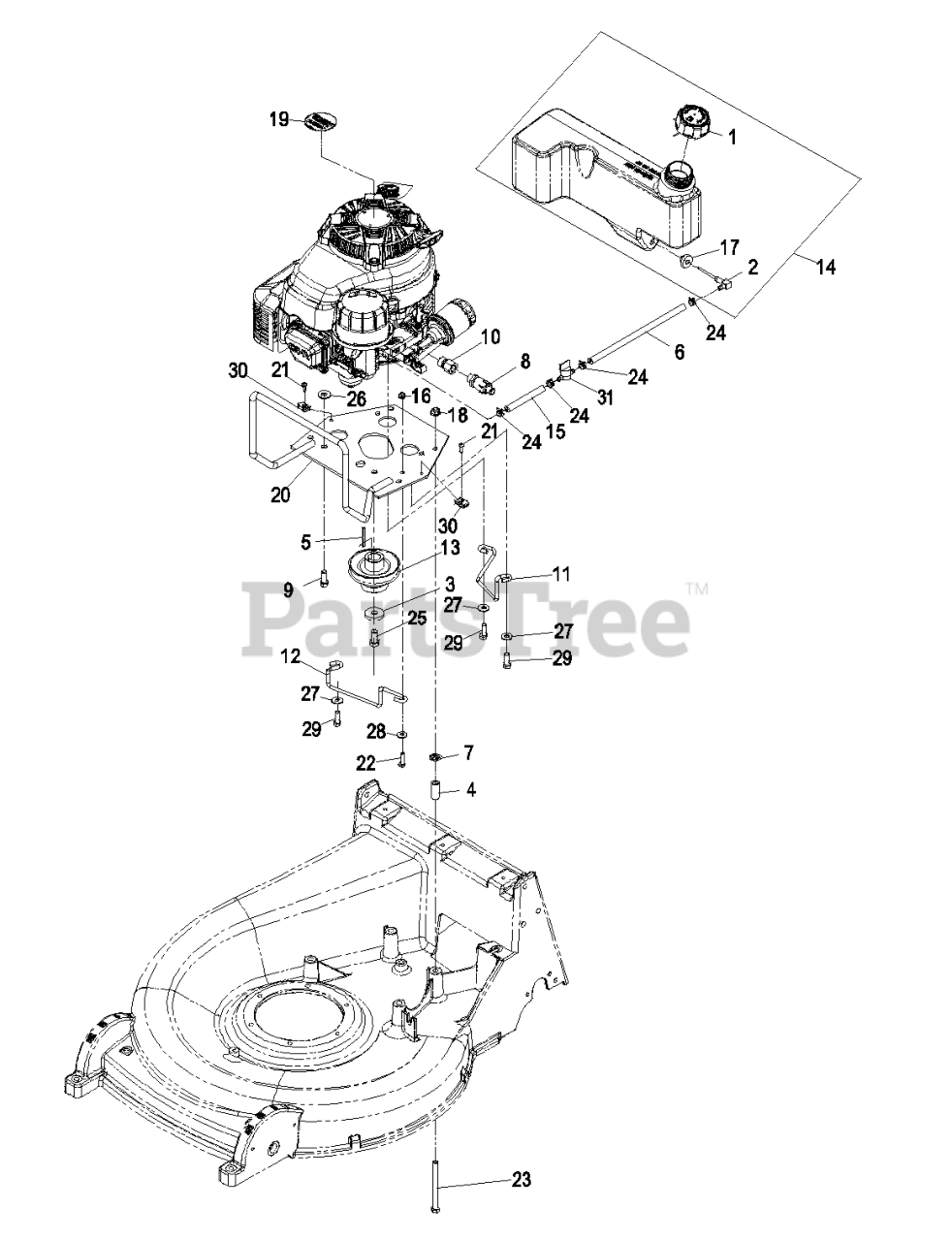

Engine Assembly Parts Diagram

  • Title

1

Exmark 1-513508

CAP-FUEL

Note: For MS6KA26B units only.

$27.99

$

In Stock, only 1 left!

0

2

Exmark 1-543277

ELBOW-TANK, FUEL

Note: For MS6KA26B units only.

$11.99

$

In Stock, Qty 5

0

3

Exmark 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 6

0

4

Exmark 1-633082

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

5

Exmark 7-0036

KEY-SQUARE

$

$

Not available

6

Exmark 109-0294

HOSE-FUEL

Note: For MS6KA26B units only.

$6.99

$

In Stock, only 1 left!

0

7

Exmark 78-7170

RING-RETAINING

$1.49

$

In Stock, Qty 17

0

8

Exmark 92-6877

VALVE-DRAIN, OIL

Note: Use a Teflon Pipe Sealant or equivalent on threads of drain valve.

$41.99

$

In Stock, only 1 left!

0

9

Exmark 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

10

Exmark 103-1966

ADAPTER

Note: Use a Teflon Pipe Sealant or equivalent on threads of drain valve.

$18.99

$

In Stock, only 1 left!

0

11

Exmark 103-6135

GUIDE-BELT, BLADE

$11.99

$

In Stock, only 1 left!

0

12

Exmark 103-6136

GUIDE-BELT, TRANSMISSION

$11.99

$

Usually ships in 3-6 days

0

13

Exmark 103-7397

PULLEY-ENGINE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) in bore of item #13. DO NOT use a copper or nickel based anti-seize.

$132.99

$

Usually ships in 3-6 days

0

14

Exmark 109-7235

ASM,FUEL TANK M26 W/CAP

Note: For MS6KA26B units only.

$

$

Not available

15

Exmark 109-0295

HOSE-FUEL

Note: For MS6KA26B units only.

$3.49

$

Usually ships in 3-6 days

0

16

Exmark 104-7201

NUT-HF

Note: For MS6KA26B units only.

$1.49

$

In Stock, Qty 20+

0

17

Exmark 104-7789

BUSHING

Note: For MS6KA26B units only.

$20.99

$

In Stock, only 1 left!

0

18

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Exmark 109-6528

DECAL

$6.49

$

In Stock, only 2 left!

0

20

Exmark 109-2455-03

116-0972-03
(Superseded to 116-0972-03)

$

$

Not available

21

Exmark 63-8590

SCREW

$1.49

$

In Stock, only 4 left!

0

22

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

24

Exmark 2412-98

CLAMP-HOSE

Note: For MS6KA26B units only.

$1.49

$

In Stock, Qty 20+

0

25

Exmark 3212-4

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on items #25 & #29.

$3.49

$

In Stock, Qty 20+

0

26

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

27

Exmark 3256-71

WASHER-FLAT

$1.49

$

In Stock, Qty 5

0

28

Exmark 3256-78

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

29

Exmark 33114-025

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on items #25 & #29.

$1.99

$

In Stock, Qty 20+

0

30

Exmark 10706-9

Nut, Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

31

Exmark 1-603770

VALVE-FUEL

Note: For MS6KA26B units only.

$8.49

$

In Stock, Qty 7

0
