MS6KA26B - Exmark 26" Metro Walk-Behind Mower, 6hp Kawasaki (SN: 670000 - 719999) (2007) Handle Assembly Parts Diagram

26" Metro Walk-Behind Mower, 6hp Kawasaki

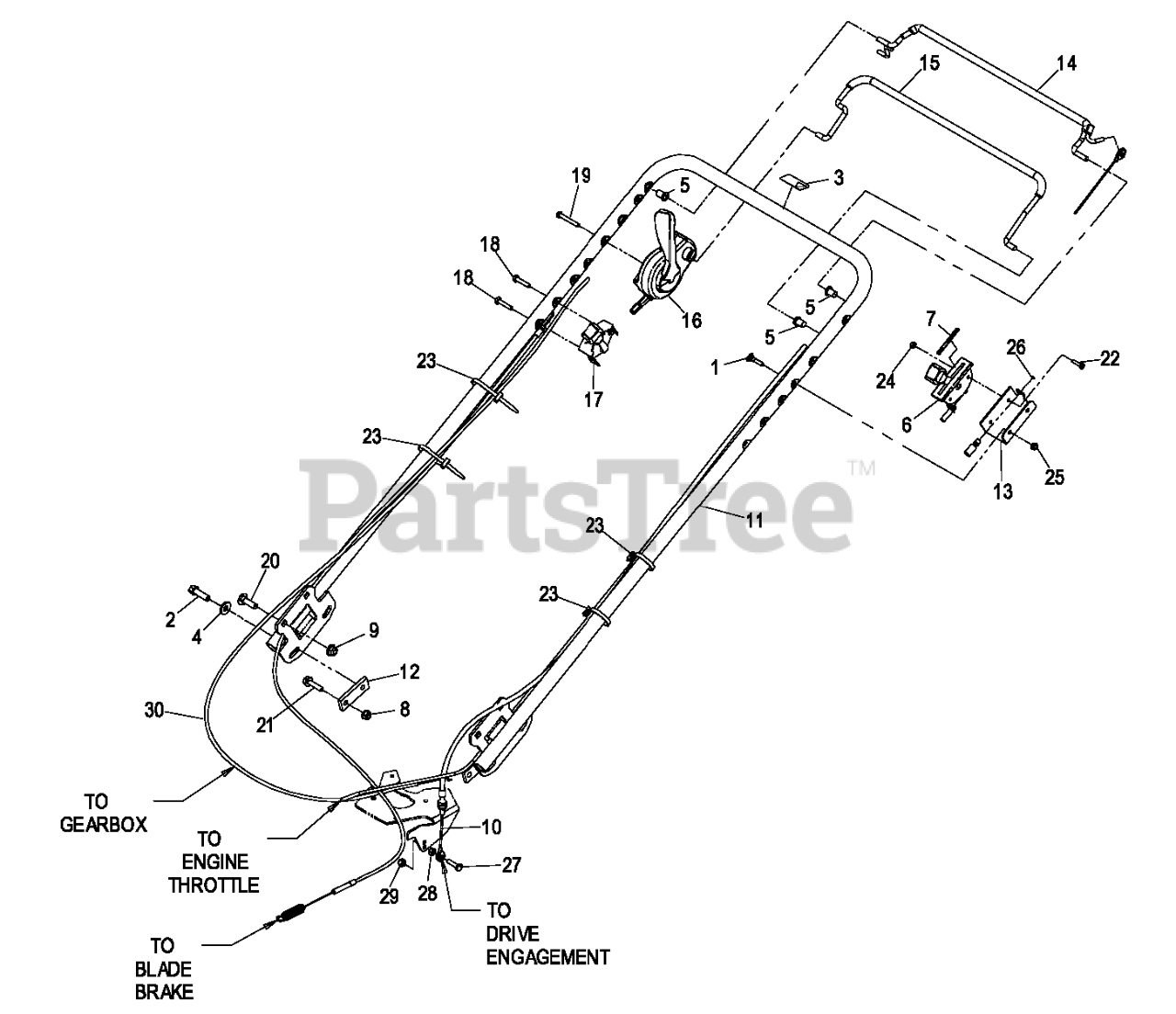

Handle Assembly Parts Diagram

  • Title

1

Exmark 92-2268

SCREW-HANDLE

$2.99

$

In Stock, only 1 left!

0

2

Exmark 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

3

Exmark 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

4

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

5

Exmark 109-2713

BUSHING

$6.49

$

In Stock, Qty 7

0

6

Exmark 103-6123

CONTROL-THROTTLE

$88.99

$

Usually ships in 3-6 days

0

7

Exmark 103-6328

DECAL-THROTTLE / CHOKE

$19.99

$

Usually ships in 3-6 days

0

8

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

9

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 109-2212

CABLE-TRACTION

$60.99

$

In Stock, Qty 6

0

11

Exmark 109-0472

ASM,HANDLE W/DECALS

$168.99

$

In Stock, only 3 left!

0

12

Exmark 109-2643-03

NUT-HANDLE

$6.49

$

Usually ships in 3-6 days

0

13

Exmark 109-2821-03

BRACKET-CONTROL

$39.99

$

Usually ships in 3-6 days

0

14

Exmark 109-2825

116-0389
(Superseded to 116-0389)

$60.99

$

In Stock, only 1 left!

0

15

Exmark 109-2826

BAIL-BBC (WITH GRIP)

$44.99

$

Usually ships in 3-6 days

0

16

Exmark 109-2827

CONTROL-BBC

$159.99

$

In Stock, only 2 left!

0

17

Exmark 110-5026

116-0504
(Superseded to 116-0504)

$96.99

$

Usually ships in 3-6 days

0

18

Exmark 321-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0

19

Exmark 33113-045

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

20

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

21

Exmark 3234-36

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

22

Exmark 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

0

23

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

24

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Exmark 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

27

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Exmark 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

29

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

30

Exmark 109-4115

CABLE-SHIFTER

$61.99

$

Usually ships in 3-6 days

0
