MS6KA26B - Exmark 26" Metro Walk-Behind Mower, 6hp Kawasaki (SN: 600000 - 669999) (2006) Deck And Wheel Assembly (Part 2) Parts Diagram

26" Metro Walk-Behind Mower, 6hp Kawasaki

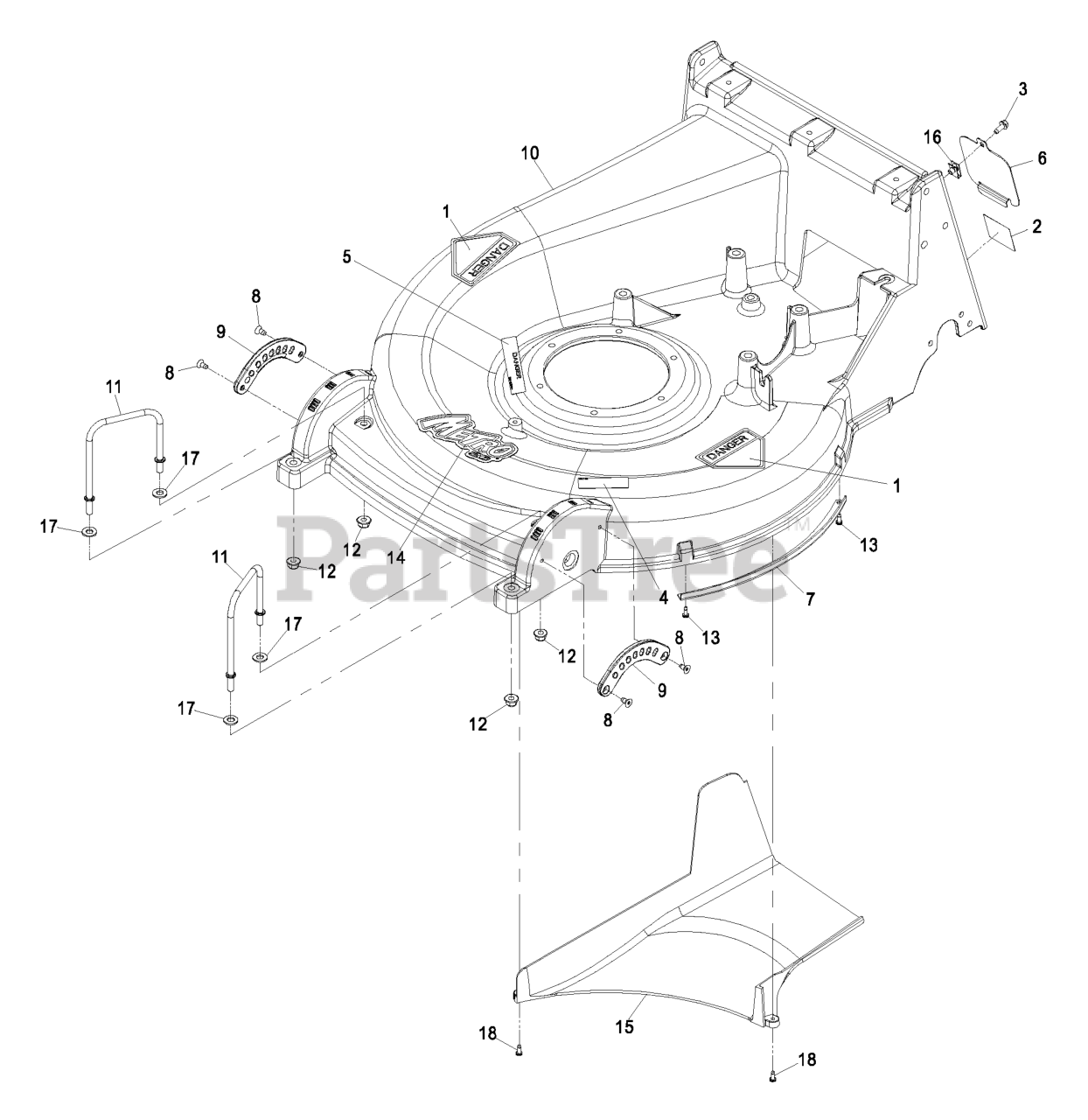

Deck And Wheel Assembly (Part 2) Parts Diagram

  • Title

1

Exmark 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

2

Exmark 109-3756

DECAL,SERVICE M26

$

$

Not available

3

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 7

0

4

Exmark 68-7410

DECAL-BLADE

$12.99

$

In Stock, only 1 left!

0

5

Exmark 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

6

Exmark 103-6116

COVER

$

$

Not available

7

Exmark 103-6131

GUARD-EDGE

$38.99

$

Usually ships in 3-6 days

0

8

Exmark 103-6145

SCREW

$5.49

$

In Stock, Qty 10

0

9

Exmark 103-6460

QUADRANT-FRONT

$26.99

$

Usually ships in 3-6 days

0

10

Exmark 109-0059

ASM,26 DECK W/DECALS
(Superseded to 109-5476)

$908.99

$

Usually ships in 3-6 days

0

11

Exmark 103-8875

116-6944
(Superseded to 116-6944)

$29.99

$

Usually ships in 3-6 days

0

12

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Exmark 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, only 3 left!

0

14

Exmark 109-0046

DECAL,METRO 26

$

$

Not available

15

Exmark 109-2832

116-1405
(Superseded to 116-1405)

$75.99

$

In Stock, only 2 left!

0

16

Exmark 10706-9

Nut, Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

17

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

18

Exmark 110-0863

SCREW-TORX

$9.49

$

In Stock, only 1 left!

0
