MS-41 BPD - Echo Manual Sprayer, Backpack (SN: N08010001001 - N08010999999) Pump Parts Diagram

Manual Sprayer, Backpack

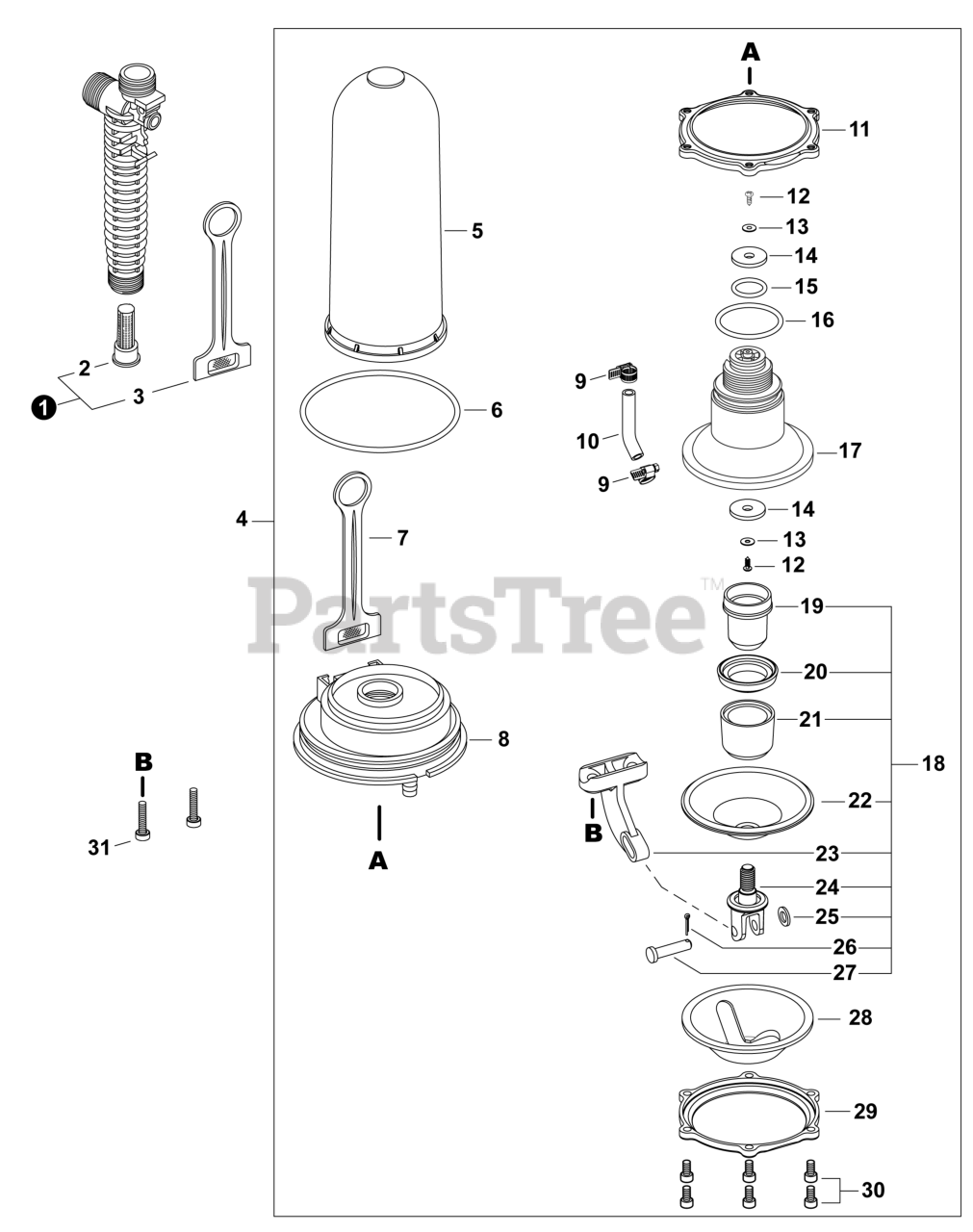

Pump Parts Diagram

  • Title

1

Echo 99944100481

FILTER KIT

$9.49

$

In Stock, only 1 left!

0

2

Echo CN011059

FILTER, SPRAY GUN

$4.49

$

In Stock, Qty 15

0

3

FILTER, IN-TANK

$

$

Not available

4

Echo 99944100523

PUMP ASSY, PISTON-DIAPHRAGM

$108.99

$

In Stock, only 3 left!

0

5

CHAMBER, PRESSURE

$

$

Not available

6

Echo CN010150-1

O-RING, PRESSURE CHAMBER

$7.99

$

Usually ships in 2-4 days

0

7

FILTER, IN-TANK

$

$

Not available

8

BASE, PRESSURE CHAMBER

$

$

Not available

9

Echo CN010987

CLAMP, HOSE

$1.49

$

Usually ships in 2-4 days

0

10

TUBE

$

$

Not available

11

CLAMP, PUMP

$

$

Not available

12

Echo CN011029

SCREW, CYLINDER

$1.49

$

Usually ships in 2-4 days

0

13

Echo CN011030

WASHER, CYLINDER

$1.49

$

Usually ships in 2-4 days

0

14

SEAL, VALVE

$

$

Not available

15

Echo CN010151-1

O-RING, CYLINDER - SMALL

$2.49

$

Usually ships in 2-4 days

0

16

Echo CN011033-1

O-RING, CYLINDER - LARGE

$5.49

$

Usually ships in 2-4 days

0

17

PUMP, DIAPHRAGM

$

$

Not available

18

Echo 99944100524

PISTON COLLAR ASSY

$76.99

$

Usually ships in 2-4 days

0

19

PISTON, INNER

$

$

Not available

20

SEAL

$

$

Not available

21

PISTON

$

$

Not available

22

DIAPHRAGM

$

$

Not available

23

LEVER, PIVOT

$

$

Not available

24

HINGE, PUMP

$

$

Not available

25

Echo CN011245

WASHER, LEVER

$1.49

$

Usually ships in 2-4 days

0

26

Echo CN011246

PIN, COTTER

$1.49

$

Usually ships in 2-4 days

0

27

Echo CN011244

PIN, LEVER

$1.99

$

Usually ships in 2-4 days

0

28

COVER, PUMP

$

$

Not available

29

CLAMP, PUMP

$

$

Not available

30

SCREW 5×14

$

$

Not available

31

Echo CN011020

SCREW, LEVER

$1.49

$

Usually ships in 2-4 days

0
