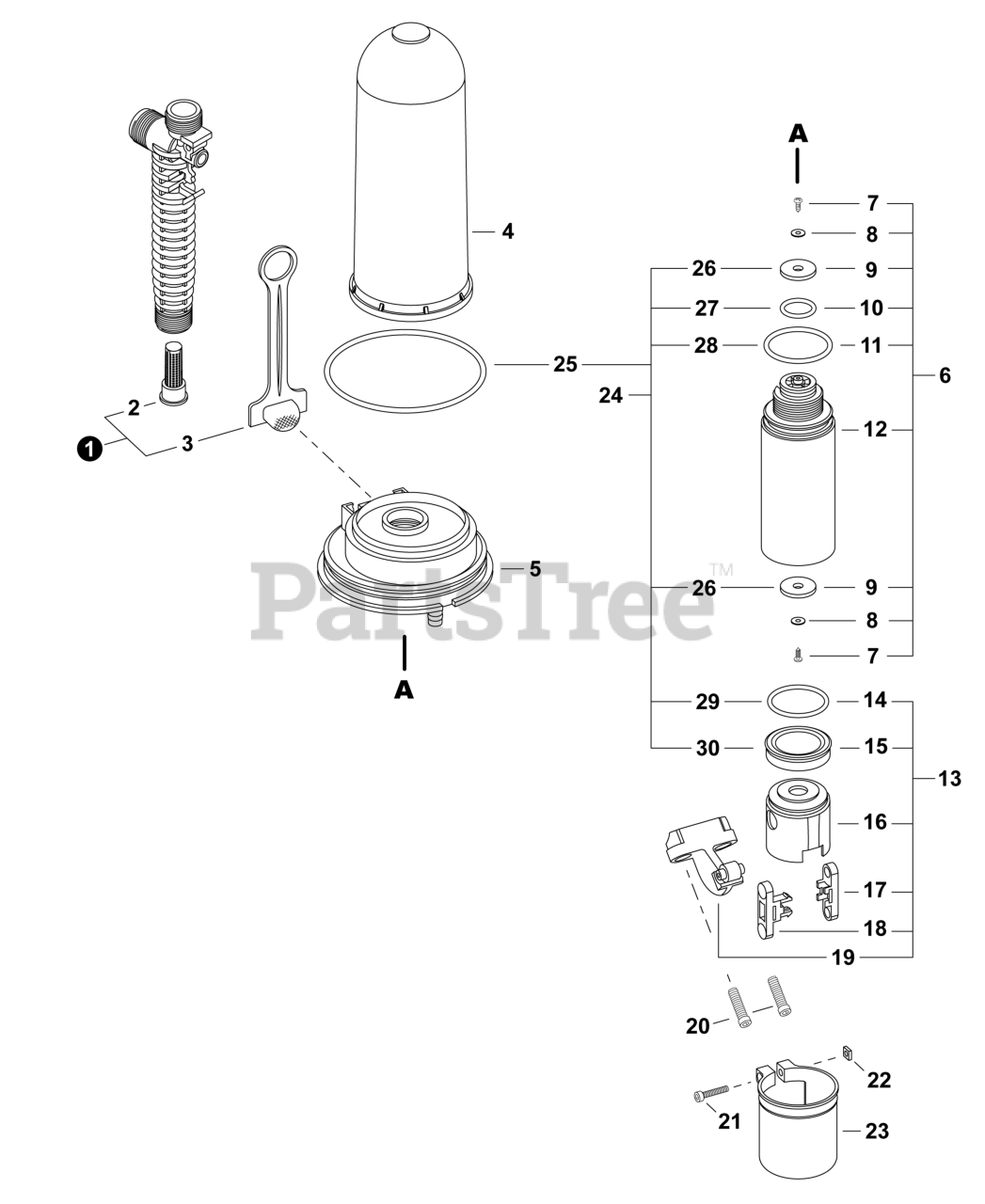

MS-41 BP - Echo Manual Sprayer, Backpack (SN: N07901001001 - N07901999999) Pump Parts Diagram

Manual Sprayer, Backpack

Pump Parts Diagram

  • Title
1

Echo 99944100481

FILTER KIT

Note: Includes Items 2-4

$9.49

$

In Stock, only 1 left!

0

2

Echo CN011059

FILTER, SPRAY GUN

$4.49

$

In Stock, Qty 15

0

3

Echo CN011941

FILTER, IN-TANK
(Superseded to 99944100481)

$9.49

$

In Stock, only 1 left!

0

4

Echo N/A (NO DISPONIBLE)

BASE, PRESSURE CHAMBER

$

$

Currently unavailable

5

Echo N/A (NO DISPONIBLE)

BASE, PRESSURE CHAMBER

$

$

Currently unavailable

6

Echo 99944100474

CYLINDER ASSY, PISTON

Note: Includes Items 7-12

$23.99

$

Usually ships in 2-4 days

0

7

Echo CN011029

SCREW, CYLINDER

$1.49

$

Usually ships in 2-4 days

0

8

Echo CN011030

WASHER, CYLINDER

$1.49

$

Usually ships in 2-4 days

0

9

SEAL, VALVE

$

$

Not available

10

Echo CN010151-1

O-RING, CYLINDER - SMALL

$2.49

$

Usually ships in 2-4 days

0

11

Echo CN011033-1

O-RING, CYLINDER - LARGE

$5.49

$

Usually ships in 2-4 days

0

12

CYLINDER, PISTON

$

$

Not available

13

Echo 99944100475

PISTON ASSY

Note: Includes Items 14-19

$36.99

$

Usually ships in 2-4 days

0

14

Echo CN011018

SPRING, SEAL

$3.99

$

Usually ships in 2-4 days

0

15

SEAL, PISTON

$

$

Not available

16

PISTON

$

$

Not available

17

ROD, CONNECTING (A)

$

$

Not available

18

ROD, CONNECTING (B)

$

$

Not available

19

Echo CN011019

LEVER, PIVOT

$3.99

$

Usually ships in 2-4 days

0

20

Echo CN011020

SCREW, LEVER

$1.49

$

Usually ships in 2-4 days

0

21

$1.49

$

Usually ships in 2-4 days

0

22

$1.49

$

Usually ships in 2-4 days

0

23

Echo CN011023

CAP, DUST

$6.99

$

Usually ships in 2-4 days

0

24

Echo 99944100471

REPAIR KIT, PUMP

Note: Includes Items 25-30

$23.99

$

Usually ships in 2-4 days

0

25

Echo CN010150-1

O-RING, PRESSURE CHAMBER

$7.99

$

Usually ships in 2-4 days

0

26

SEAL, VALVE

$

$

Not available

27

Echo CN010151-1

O-RING, CYLINDER - SMALL

$2.49

$

Usually ships in 2-4 days

0

28

Echo CN011033-1

O-RING, CYLINDER - LARGE

$5.49

$

Usually ships in 2-4 days

0

29

Echo CN011018

SPRING, SEAL

$3.99

$

Usually ships in 2-4 days

0

30

SEAL, PISTON

$

$

Not available
