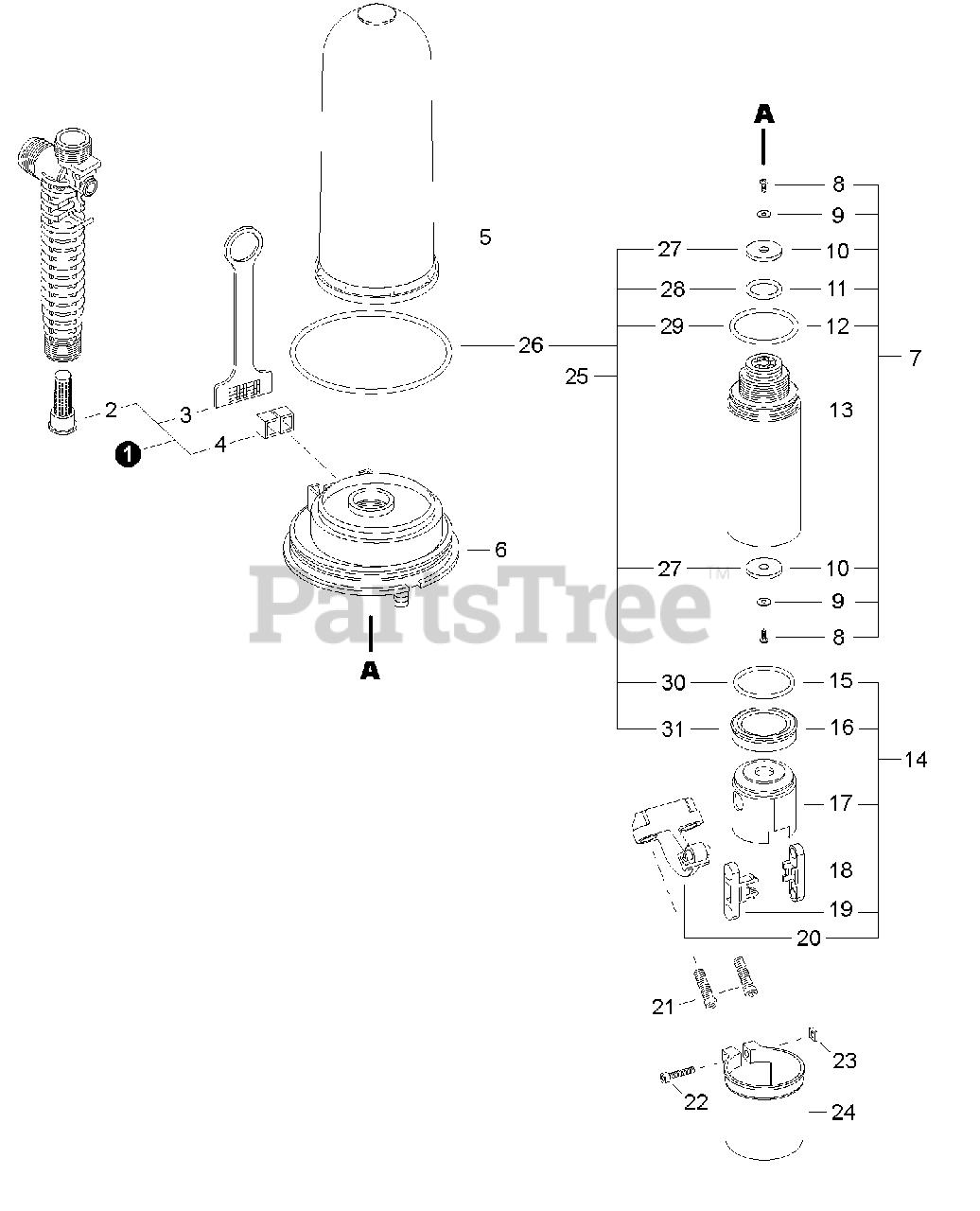

MS-40 BP - Echo Manual Sprayer, Backpack (SN: MSP10001001 - MSP10999999) Pump Parts Diagram

Manual Sprayer, Backpack

Pump Parts Diagram

  • Title

1

Echo 99944100481

FILTER KIT

$9.49

$

In Stock, only 1 left!

0

1

Echo 99944100481

FILTER KIT

$9.49

$

In Stock, only 1 left!

0

2

Echo CN011059

FILTER, SPRAY GUN

$4.49

$

In Stock, Qty 15

0

2

Echo CN011059

FILTER, SPRAY GUN

$4.49

$

In Stock, Qty 15

0

3

Echo CN011080

FILTER, IN-TANK
(Superseded to CN011941)

$9.49

$

In Stock, only 1 left!

0

3

Echo CN011080

FILTER, IN-TANK
(Superseded to CN011941)

$9.49

$

In Stock, only 1 left!

0

4

Echo CN011081

FILTER, CARTRIDGE
(Superseded to CN011941)

$9.49

$

In Stock, only 1 left!

0

4

Echo CN011081

FILTER, CARTRIDGE
(Superseded to CN011941)

$9.49

$

In Stock, only 1 left!

0

5

------------------

CHAMBER, PRESSURE

Note: N/A (no disponible)

$

$

Not available

5

------------------

CHAMBER, PRESSURE

Note: N/A (no disponible)

$

$

Not available

6

------------------

BASE, PRESSURE CHAMBER

Note: N/A (no disponible)

$

$

Not available

6

------------------

BASE, PRESSURE CHAMBER

Note: N/A (no disponible)

$

$

Not available

7

Echo 99944100474

CYLINDER/PISTON ASSY

$23.99

$

Usually ships in 2-4 days

0

7

Echo 99944100474

CYLINDER/PISTON ASSY

$23.99

$

Usually ships in 2-4 days

0

8

Echo CN011029

SCREW, CYLINDER

$1.49

$

Usually ships in 2-4 days

0

8

Echo CN011029

SCREW, CYLINDER

$1.49

$

Usually ships in 2-4 days

0

9

Echo CN011030

WASHER

$1.49

$

Usually ships in 2-4 days

0

9

Echo CN011030

WASHER

$1.49

$

Usually ships in 2-4 days

0

10

SEAL, VALVE

$

$

Not available

10

SEAL, VALVE

$

$

Not available

11

O-RING, CYLINDER - SMALL

$

$

Not available

11

O-RING, CYLINDER - SMALL

$

$

Not available

12

O-RING, CYLINDER - LARGE

$

$

Not available

12

O-RING, CYLINDER - LARGE

$

$

Not available

13

------------------

CYLINDER

$

$

Not available

13

------------------

CYLINDER

$

$

Not available

14

Echo 99944100475

PISTON ASSY

$36.99

$

Usually ships in 2-4 days

0

14

Echo 99944100475

PISTON ASSY

$36.99

$

Usually ships in 2-4 days

0

15

Echo CN011018

SPRING, SEAL

$3.99

$

Usually ships in 2-4 days

0

15

Echo CN011018

SPRING, SEAL

$3.99

$

Usually ships in 2-4 days

0

16

SEAL, PISTON

$

$

Not available

16

SEAL, PISTON

$

$

Not available

17

PISTON

$

$

Not available

17

PISTON

$

$

Not available

18

ROD, CONNECTING - A

$

$

Not available

18

ROD, CONNECTING - A

$

$

Not available

19

ROD, CONNECTING - B

$

$

Not available

19

ROD, CONNECTING - B

$

$

Not available

20

Echo CN011019

LEVER, PIVOT

$3.99

$

Usually ships in 2-4 days

0

20

Echo CN011019

LEVER, PIVOT

$3.99

$

Usually ships in 2-4 days

0

21

Echo CN011020

SCREW, LEVER

$1.49

$

Usually ships in 2-4 days

0

21

Echo CN011020

SCREW, LEVER

$1.49

$

Usually ships in 2-4 days

0

22

Echo CN011046

BOLT

$1.49

$

Usually ships in 2-4 days

0

22

Echo CN011046

BOLT

$1.49

$

Usually ships in 2-4 days

0

23

Echo CN011014

NUT

$1.49

$

Usually ships in 2-4 days

0

23

Echo CN011014

NUT

$1.49

$

Usually ships in 2-4 days

0

24

Echo CN011023

CAP, DUST

$6.99

$

Usually ships in 2-4 days

0

24

Echo CN011023

CAP, DUST

$6.99

$

Usually ships in 2-4 days

0

25

Echo 99944100471

REPAIR KIT, PUMP

$23.99

$

Usually ships in 2-4 days

0

25

Echo 99944100471

REPAIR KIT, PUMP

$23.99

$

Usually ships in 2-4 days

0

26

O-RING, PRESSURE CHAMBER

$

$

Not available

26

O-RING, PRESSURE CHAMBER

$

$

Not available

27

SEAL, VALVE

$

$

Not available

27

SEAL, VALVE

$

$

Not available

28

O-RING, CYLINDER - SMALL

$

$

Not available

28

O-RING, CYLINDER - SMALL

$

$

Not available

29

O-RING, CYLINDER - LARGE

$

$

Not available

29

O-RING, CYLINDER - LARGE

$

$

Not available

30

Echo CN011018

SPRING, SEAL

$3.99

$

Usually ships in 2-4 days

0

30

Echo CN011018

SPRING, SEAL

$3.99

$

Usually ships in 2-4 days

0

31

SEAL, PISTON

$

$

Not available

31

SEAL, PISTON

$

$

Not available
