MS-30 H - Echo Manual Sprayer (SN: MSP10001001 - MSP10999999) Pump Parts Diagram

Manual Sprayer

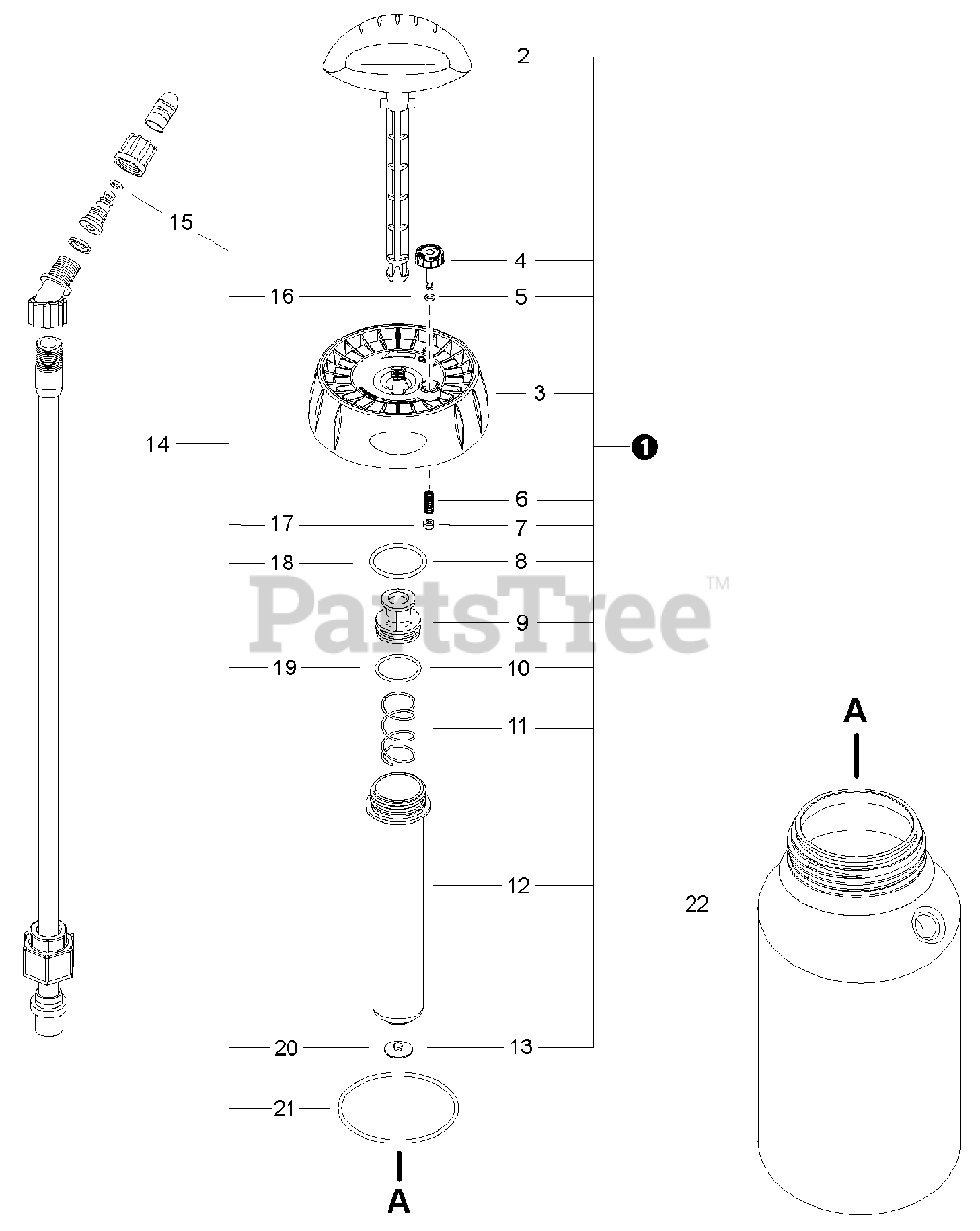

Pump Parts Diagram

  • Title

1

Echo 99944100512

PUMP ASSY

$60.99

$

Usually ships in 2-4 days

0

1

Echo 99944100512

PUMP ASSY

$60.99

$

Usually ships in 2-4 days

0

2

HANDLE, PUMP

$

$

Not available

2

HANDLE, PUMP

$

$

Not available

3

------------------

CAP, TANK

$

$

Not available

3

------------------

CAP, TANK

$

$

Not available

4

------------------

CAP

$

$

Not available

4

------------------

CAP

$

$

Not available

5

O-RING, PRV

$

$

Not available

5

O-RING, PRV

$

$

Not available

6

SPRING, PRV

$

$

Not available

6

SPRING, PRV

$

$

Not available

7

RING, RETAINING - PRV

$

$

Not available

7

RING, RETAINING - PRV

$

$

Not available

8

O-RING, BARREL

$

$

Not available

8

O-RING, BARREL

$

$

Not available

9

PLUNGER, PUMP

$

$

Not available

9

PLUNGER, PUMP

$

$

Not available

10

O-RING, PLUNGER

$

$

Not available

10

O-RING, PLUNGER

$

$

Not available

11

SPRING, PUMP

$

$

Not available

11

SPRING, PUMP

$

$

Not available

12

------------------

BARREL, PUMP

$

$

Not available

12

------------------

BARREL, PUMP

$

$

Not available

13

VALVE, CHECK

$

$

Not available

13

VALVE, CHECK

$

$

Not available

14

Echo 99944100487

PUMP REPAIR KIT

$29.99

$

Usually ships in 2-4 days

0

14

Echo 99944100487

PUMP REPAIR KIT

$29.99

$

Usually ships in 2-4 days

0

15

O-RING, NOZZLE

$

$

Not available

15

O-RING, NOZZLE

$

$

Not available

16

O-RING, PRV

$

$

Not available

16

O-RING, PRV

$

$

Not available

17

RING, RETAINING - PRV

$

$

Not available

17

RING, RETAINING - PRV

$

$

Not available

18

O-RING, BARREL

$

$

Not available

18

O-RING, BARREL

$

$

Not available

19

O-RING, PLUNGER

$

$

Not available

19

O-RING, PLUNGER

$

$

Not available

20

VALVE, CHECK

$

$

Not available

20

------------------

VALVE, CHECK

$

$

Not available

21

Echo CN010546

O-RING

$7.99

$

Usually ships in 2-4 days

0

21

Echo CN010546

O-RING

$7.99

$

Usually ships in 2-4 days

0

22

TANK, SPRAYER

Note: N/A (no disponible)

$

$

Not available

22

TANK, SPRAYER

Note: N/A (no disponible)

$

$

Not available
