MS 2560 SE (41ADZ34C768) - Murray String Trimmer Engine Assembly Parts Diagram

String Trimmer

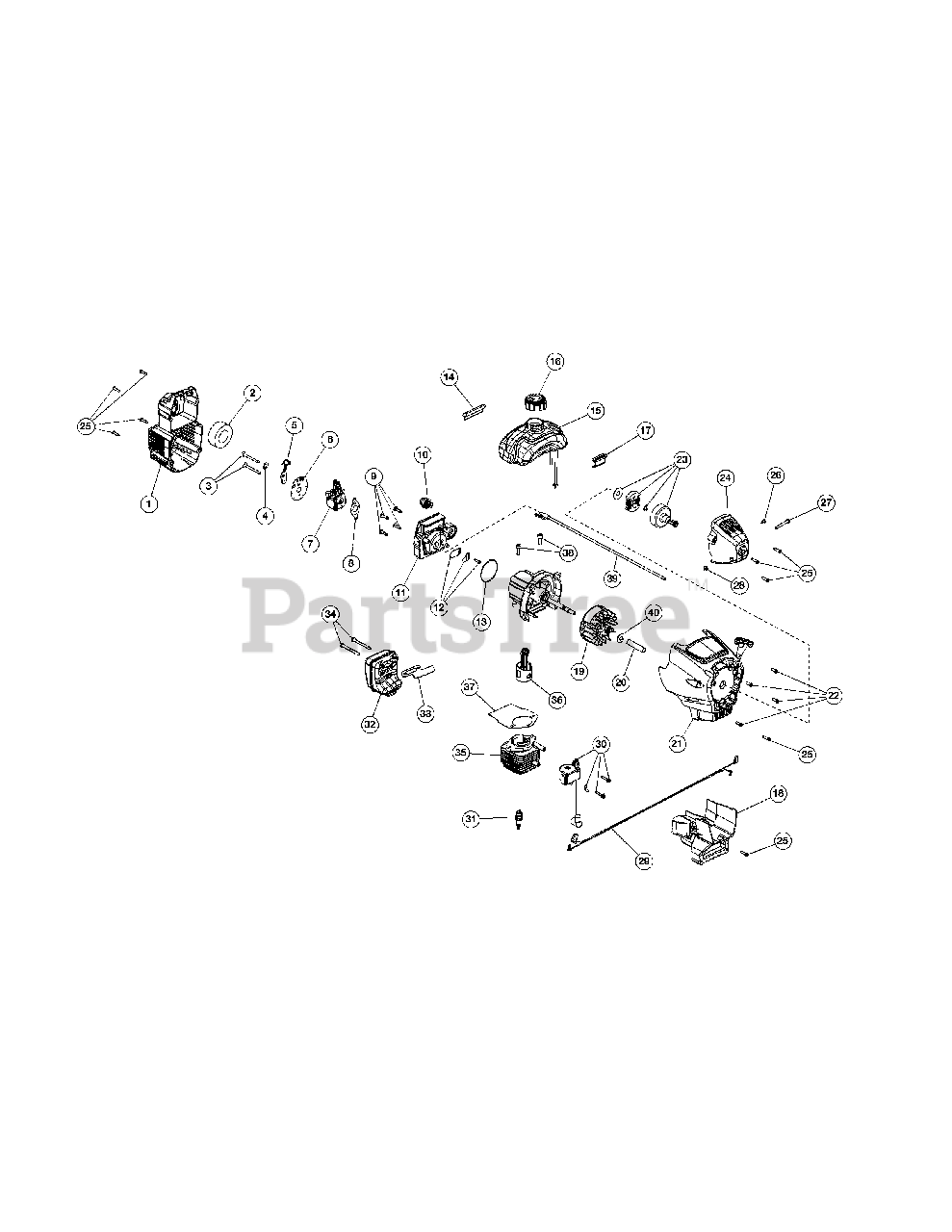

Engine Assembly Parts Diagram

  • Title

1

MTD 753-04511

Air Cleaner Cover Assembly (Incl. 2 & 25)

$38.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

Note: No Longer Available

$

$

Not available

4

MTD 936-0271

Wavey Washer

$4.49

$

In Stock, Qty 10

0

5

MTD 753-04418

Choke Lever Assembly

$

$

Not available

6

MTD 753-04419

Choke Plate Assembly (Incl. 5)

$

$

Not available

7

MTD 753-05133

Carburetor Assembly (Incl. 8)

$81.99

$

Usually ships in 3-6 days

0

8

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

9

MTD 791-181860

Carb Mount Screw

Note: No Longer Available

$

$

Not available

10

MTD 791-683974B

Primer & Hose Assembly

$22.99

$

In Stock, Qty 18

0

11

MTD 753-1196

Carb Mount Assembly (Incl. 9, 12 & 13)

$

$

Not available

12

MTD 791-684451

Reed Assembly

$

$

Not available

13

MTD 721-04163

O-Ring

$3.99

$

In Stock, Qty 7

0

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

MTD 753-04606

Fuel Tank Assembly (Incl. 16)

$

$

Not available

16

MTD 791-182529

Fuel Cap Assembly

$21.99

$

In Stock, only 4 left!

0

17

MTD 791-145308

Front Mounting Pad

Note: No Longer Available

$

$

Not available

18

MTD 753-05091

Shroud Extension & Stand (Incl. 25)

$19.99

$

Usually ships in 3-6 days

0

19

MTD 753-05240

Flywheel Assembly

$76.99

$

In Stock, only 2 left!

0

20

MTD 791-181525

Spacer

$22.99

$

Usually ships in 3-6 days

0

21

MTD 753-05403

Starter Housing Assembly (Incl. 22 & 25)

$20.99

$

In Stock, only 1 left!

0

22

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

23

MTD 753-05860

Clutch Rotor Assembly

$25.99

$

In Stock, Qty 10

0

24

MTD 753-04497

Clutch Cover Assembly (Incl. 25-28)

$

$

Not available

25

MTD 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

26

MTD 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

27

MTD 753-04003

Clamping Screw
(Superseded to 9689A)

$11.99

$

Usually ships in 3-6 days

0

28

MTD 712-0161

Clamping Nut

$4.49

$

In Stock, only 2 left!

0

29

MTD 753-05025

Wire Leads and Sleeve

$13.99

$

Usually ships in 3-6 days

0

30

MTD 753-04336

Module Assembly

$107.99

$

Usually ships in 3-6 days

0

31

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 3 left!

0

32

MTD 753-05169

Muffler Assembly

Note: (Incl. 33, 34 & Spark Arrestor)

$112.99

$

Usually ships in 3-6 days

0

33

MTD 791-180980

Exhaust Gasket

$7.99

$

Usually ships in 3-6 days

0

34

MTD 710-04188A

Muffler Mounting Bolts

$4.49

$

Usually ships in 3-6 days

0

35

MTD 753-04814

Cylinder Assembly (Incl. 37 & 38)

$83.99

$

In Stock, only 1 left!

0

36

MTD 753-04367

Piston and Rod Assembly

$

$

Not available

37

MTD 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

38

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

39

MTD 753-04405

Throttle Cable

$7.99

$

Usually ships in 3-6 days

0

40

MTD 753-06247

Washer

$3.49

$

In Stock, only 1 left!

0

MTD 753-1209

Piston Ring Set

Note: (not shown)

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04812

Short Block Assembly

Note: (Incl. Crankcase, 9, 31 & 35-38)(not shown)

$208.99

$

Usually ships in 3-6 days

0
