MS 2560 (41DDZ22C768) - Murray String Trimmer General Assembly Parts Diagram

String Trimmer

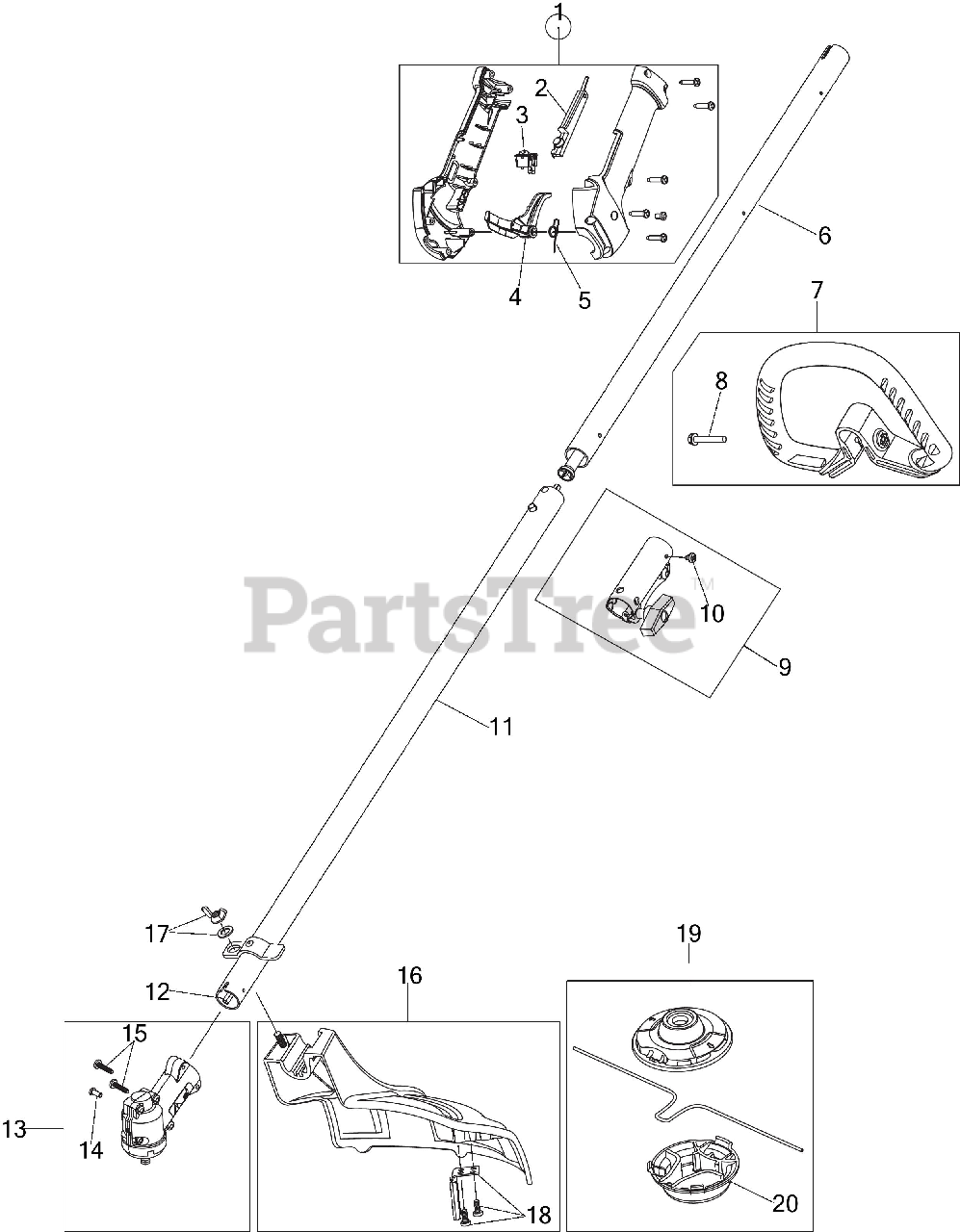

General Assembly Parts Diagram

  • Title

1

MTD 753-06790

THROTTLE GRIP ASSEMBLY

Note: (Includes 2-5)

$12.99

$

In Stock, Qty 6

0

2

MTD 731-08433B-5

LOCK OUT LEVER

$3.49

$

Usually ships in 3-6 days

0

3

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

4

MTD 753-06861

THROTTLE TRIGGER

$3.49

$

In Stock, Qty 6

0

5

MTD 753-05007

SPRING TRIG

$5.49

$

In Stock, only 3 left!

0

6

MTD 753-06880

BOOM ASSEMBLY UPR

$19.99

$

In Stock, only 1 left!

0

7

MTD 753-06039

HANDLE ASSEMBLY

Note: (Includes 8)

$11.99

$

Usually ships in 3-6 days

0

8

MTD 753-06040

BOLT 1/4-20X1 1/2

$6.99

$

In Stock, only 1 left!

0

9

MTD 753-08212

E-Z LINK COUPLER
(Superseded to 753-1190)

Note: (Includes 10)

$23.99

$

In Stock, only 1 left!

0

10

MTD 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, only 3 left!

0

11

MTD 753-08356

BOOM ASSEMBLY LOWER

$24.99

$

In Stock, only 1 left!

0

12

MTD 753-05267

LOWERIBLE DRIVE SHAFT

$42.99

$

In Stock, only 1 left!

0

13

MTD 753-08180

GEARBOX LCBC

Note: (Includes 14 & 15)

$45.99

$

In Stock, only 3 left!

0

14

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, only 2 left!

0

15

MTD 791-182195

SCREW

$7.49

$

In Stock, Qty 20+

0

16

MTD 753-08354

GUARD ASSEMBLY

Note: (Includes 17 & 18)

$16.99

$

In Stock, only 2 left!

0

17

MTD 753-04282

BLADE GUARD MOUNTING HARDWARE

$25.99

$

In Stock, only 1 left!

0

18

MTD 753-08355

BLADE ASSEMBLY W/HDW

$4.49

$

In Stock, Qty 20+

0

19

MTD 753-08169

HEAD ASSEMBLY FIXED LIN

Note: (Includes 20)

$13.99

$

In Stock, Qty 10

0

20

MTD 753-08170

HEAD FIXED LINE BT

$4.99

$

In Stock, Qty 20+

0
