MS 2560 (41DDZ22C768) - Murray String Trimmer Engine Assembly Parts Diagram

String Trimmer

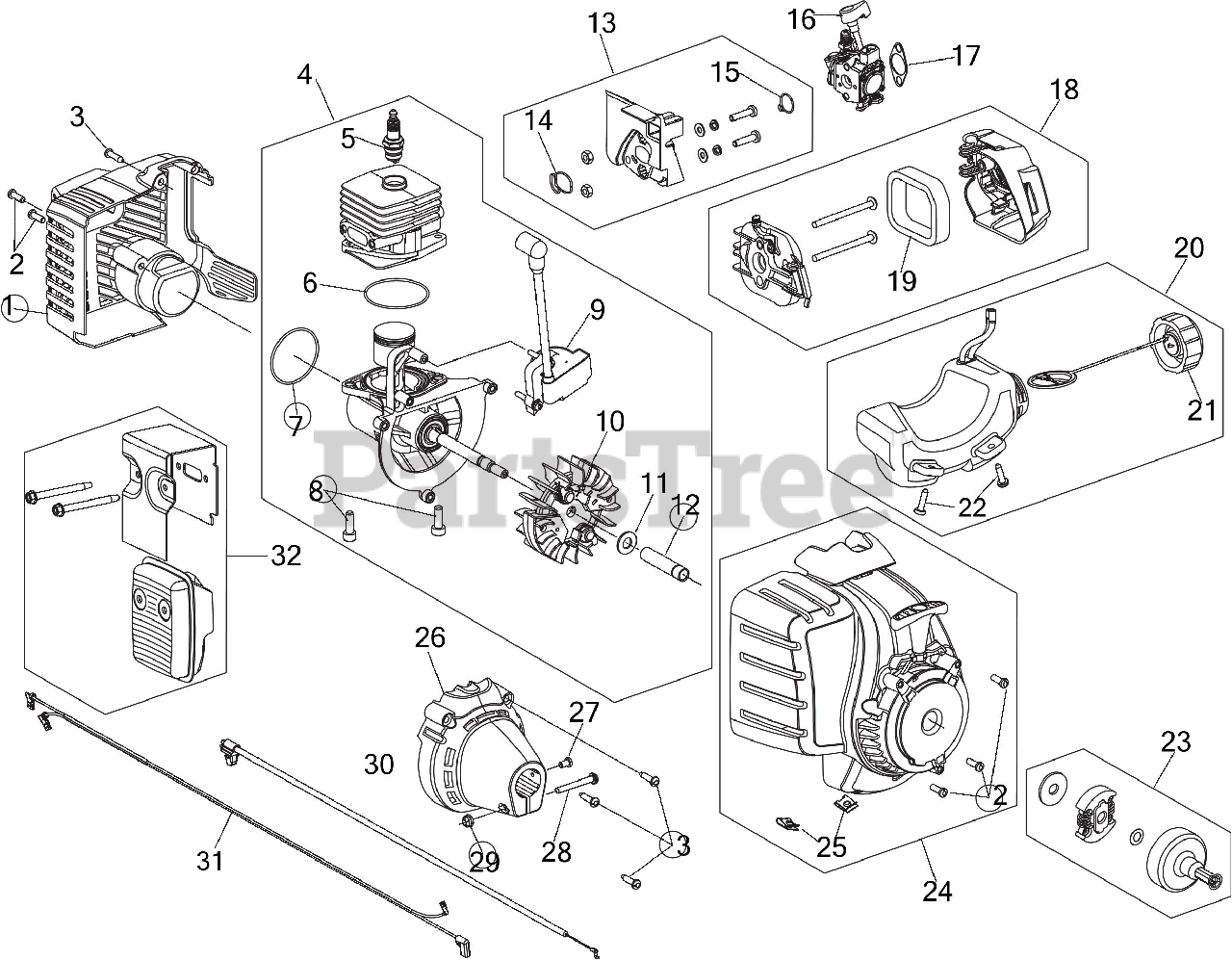

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06194

REAR ENGINE CVR

Note: (Includes 2 & 3)

$8.49

$

In Stock, only 4 left!

0

2

MTD 791-181862

SCREW:10-32X.562:#8P
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

3

MTD 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, only 4 left!

0

4

MTD 753-06924

SHORTBLOCK

$75.99

$

In Stock, only 2 left!

0

5

MTD 753-06847

SPARK PLUG

Note: (Includes 5-12)

$7.49

$

In Stock, Qty 20+

0

6

MTD 753-06275

O-RING

$2.99

$

In Stock, Qty 13

0

7

MTD 753-06174

O-RING

$2.99

$

In Stock, Qty 20+

0

8

MTD 791-182723

SCREW, 1/4-20 x .75

$4.49

$

In Stock, Qty 13

0

9

MTD 753-06763

MODULE 27CC DIG

$27.99

$

In Stock, only 2 left!

0

10

MTD 753-06175

FLYWHEEL ASSEMBLY

$19.99

$

In Stock, only 2 left!

0

11

MTD 753-06247

BELL WASHER

$3.49

$

In Stock, only 1 left!

0

12

MTD 753-06218

SPACER

$2.99

$

In Stock, only 1 left!

0

13

MTD 753-06189

INTAKE ASSEMBLY

Note: (Includes 14 & 15)

$7.99

$

In Stock, only 1 left!

0

14

MTD 753-06184

O-RING

$3.49

$

In Stock, only 1 left!

0

15

MTD 753-06185

O-RING

$3.49

$

In Stock, Qty 20+

0

16

MTD 751-15112

CARBURETOR
(Superseded to 753-06288)

$37.99

$

In Stock, Qty 6

0

17

MTD 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

18

MTD 753-06500

AIRCLEANER COVER ASSEMBLY

Note: (Includes 19)

$6.49

$

In Stock, Qty 10

0

19

MTD 753-06417

AIR FLITER

$2.99

$

In Stock, Qty 20+

0

20

MTD 753-06183

FUEL TANK ASSEMBLY

Note: (Includes 21 & 22)

$13.99

$

In Stock, Qty 20+

0

21

MTD 791-182612

FUEL CAP ASSEMBLY

$20.99

$

In Stock, Qty 9

0

22

MTD 791-181930

SCREW 10-6 x .75

$6.99

$

In Stock, only 1 left!

0

23

MTD 753-05860

SMALL CLUTCH ASSEMBLY W/SMALL DRUM

$25.99

$

In Stock, Qty 10

0

24

MTD 753-08168

STARTER HOUSING ASSEMBLY

Note: (Includes 2 & 25)

$

$

Not available

25

MTD 791-182366

NUT, TINNERMAN U-T

$5.99

$

In Stock, only 1 left!

0

26

MTD 753-06181

CLUTCH COVER

Note: (includes 3)

$3.99

$

Usually ships in 3-6 days

0

27

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, Qty 5

0

28

MTD 753-04003

SCREW
(Superseded to 9689A)

$11.99

$

Usually ships in 3-6 days

0

29

N/A

CLAMP NUT (NOT SERVICEABLE)

$

$

Not available

30

MTD 753-06188

THROTTLE CABLE

$7.99

$

In Stock, Qty 6

0

31

MTD 753-06187

WIRE LEADS

$

$

Not available

32

MTD 753-06418

MUFFLER ASSEMBLY
(Superseded to 753-08745)

$26.99

$

Usually ships in 3-6 days

0
