MS 2560 (41BDZ22C768) - Murray String Trimmer General Assembly Parts Diagram

String Trimmer

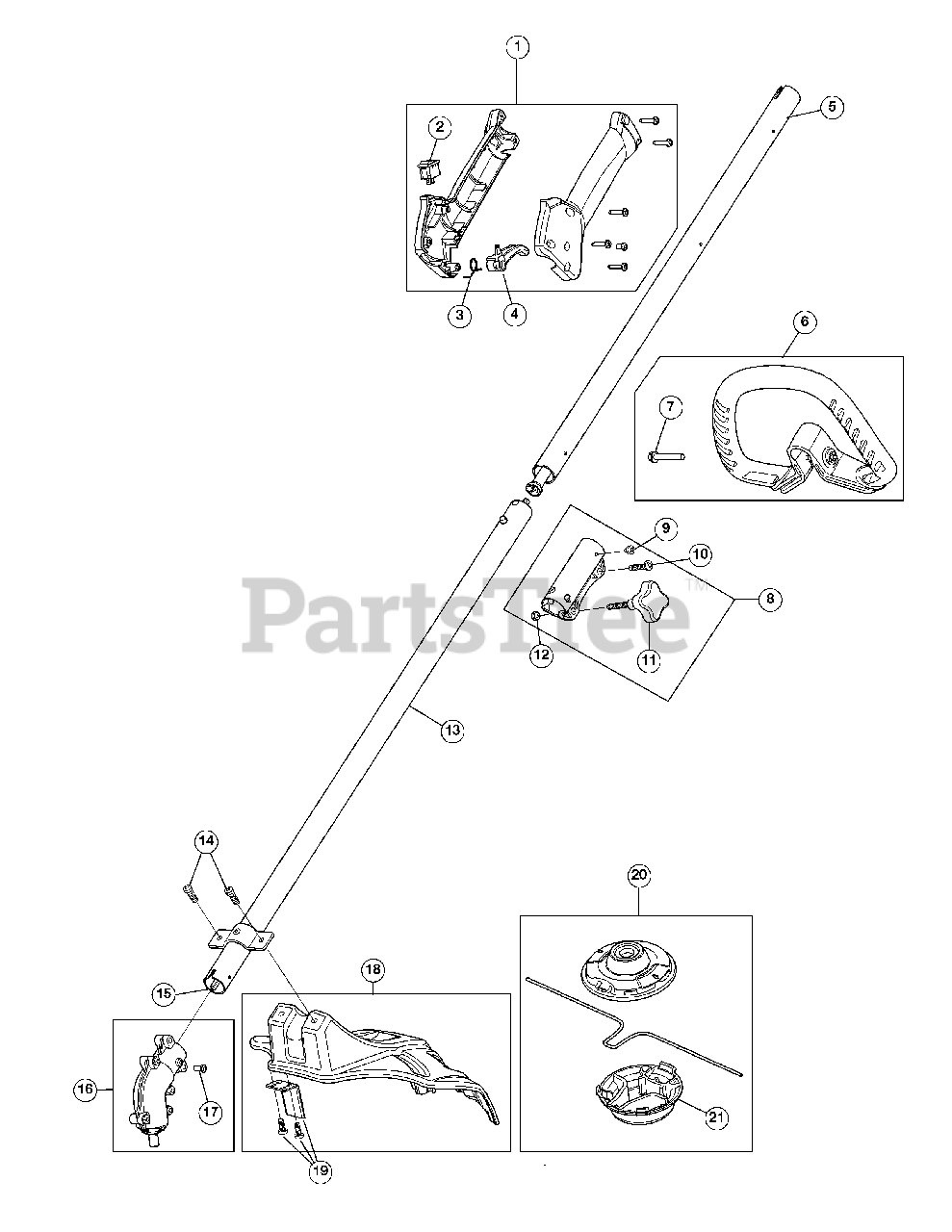

General Assembly Parts Diagram

  • Title

1

MTD 753-06790

Throttle Housing Assembly (Incl. 2 - 4)

$12.99

$

In Stock, Qty 6

0

2

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

5

MTD 753-04344

Upper Shaft Housing Assembly

$85.99

$

In Stock, only 3 left!

0

6

MTD 753-06039

D-Handle (Incl. 7)

$11.99

$

Usually ships in 3-6 days

0

7

MTD 753-06040

D-Handle Bolt

$6.99

$

In Stock, only 1 left!

0

8

MTD 753-1190

Split Boom Coupler (Incl. 9 - 12)

$23.99

$

In Stock, only 1 left!

0

9

MTD 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, Qty 6

0

10

MTD 791-181617

Screw

$5.49

$

In Stock, Qty 11

0

11

MTD 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$

$

Not available

12

MTD 712-04018A

Knob Retainer Nut

$4.49

$

In Stock, Qty 5

0

13

MTD 753-06139

Lower Shaft Housing Assembly

$20.99

$

In Stock, Qty 20+

0

14

MTD 753-06125

Shield Mounting Screws

$6.99

$

In Stock, only 4 left!

0

15

MTD 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

16

MTD 753-06882

Gear Box Assembly (Incl. 17, 20 & 21)

$59.99

$

In Stock, only 1 left!

0

17

MTD 7039

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

18

MTD 753-06123

Shield Assembly (Incl. 14 & 19)

$20.99

$

In Stock, Qty 10

0

19

MTD 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 5

0

20

MTD 753-08169

Cutting Head Assembly (Incl. 21)

$13.99

$

In Stock, Qty 10

0

21

MTD 753-08170

Glide Cap

$4.99

$

In Stock, Qty 20+

0
