MS 2049 AV (41BY09AG077) - McCulloch Chainsaw Powerhead Assembly Parts Diagram

Chainsaw

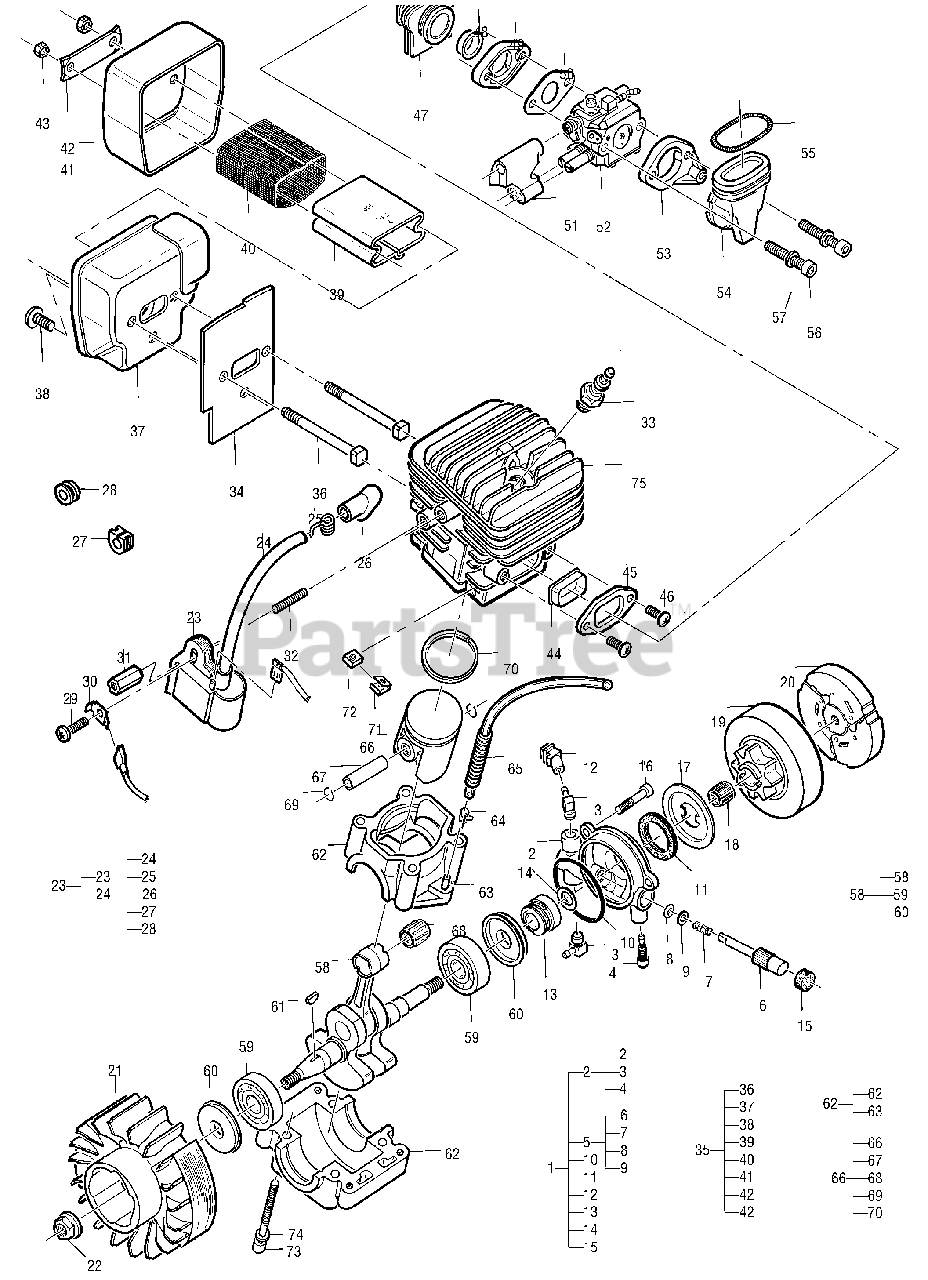

Powerhead Assembly Parts Diagram

  • Title

1

MTD MC-301912-00

Kit, Oil Pump Asy

$

$

Not available

2

Pump Asy, Oil

$

$

Not available

3

MTD MC-322182-00

Fitting

$

$

Currently unavailable

4

MTD MC-322635-00

Screw, Adj

$

$

Currently unavailable

5

MTD MC-301913-00

Kit, Gear/Plunger Asy

$

$

Not available

6

Piston/Gear Asy

$

$

Not available

7

Spring, Comp

$

$

Not available

8

O-ring

$

$

Not available

9

MTD MC-110582-00

Washer
(Superseded to MC-9WFB-5.25-08)

$

$

Not available

10

MTD MC-111162-00

O-Ring, 1.625x.06

$

$

Not available

11

MTD MC-323435-00

Washer, Felt

$

$

Not available

12

MTD MC-322864-00

Connector, Oil Pump

$

$

Not available

13

MTD MC-322662-00

Gear, Worm

$

$

Not available

14

MTD MC-322884-00

Washer

$

$

Not available

15

MTD MC-323126-00

Seal, Felt

$

$

Not available

16

MTD MC-111108-00

Screw, #8 Plast
(Superseded to 710-04554)

$

$

Not available

17

MTD MC-322856-00

Washer, Clutch Drum
(Superseded to MC-9WDZ-0.722)

$

$

Not available

18

MTD MC-111104-00

Bearing, 10x13x13mm

$

$

Not available

19

MTD MC-301338-00

Drum/Sprocket Asy, .325x8T

$

$

Not available

20

MTD MC-300726-01

Clutch Asy, Old, Threaded

$

$

Not available

20

MTD MC-9228-310210

Clutch Asy, New, No Thread

$

$

Not available

21

MTD MC-322848-00

Flywheel

$

$

Not available

22

MTD MC-110961-00

Nut, Hex 5/16-24
(Superseded to MC-9NAB-5/16-24)

$

$

Not available

23

MTD MC-301759-00

Ignition Asy

$

$

Not available

24

MTD MC-223884-00

Kit, Spark Plug Wire

$

$

Not available

25

MTD MC-102556-00

Connector, Spark

$

$

Currently unavailable

26

MTD MC-95266-00

Boot, Spark Plug

$

$

Currently unavailable

27

MTD MC-215533-01-00

Grommet, H/T Lead

Note: Not used

$

$

Currently unavailable

28

MTD MC-110995-00

Grommet, S/Plug Wire

Note: Not used

$

$

Currently unavailable

29

MTD MC-217936-00

Screw, Tr 10-24x.75 Torx
(Superseded to 710-04491)

$

$

Not available

30

MTD MC-322881-00

Contact, Ground

$

$

Currently unavailable

31

MTD MC-322854-00

Spacer, Nut 10-24x.834

$

$

Not available

32

MTD MC-322855-00

Stud, 10-24x1.105
(Superseded to MC-9191-310201)

$

$

Not available

33

MTD MC-92879-00

Spark Plug, RDJ8J

$

$

Not available

34

MTD MC-322853-00

Baffle, Muffler Gasket

$

$

Not available

35

MTD MC-300923-00

Muffler Asy

$

$

Not available

36

MTD MC-300720-00

Screw, Muffler

$

$

Currently unavailable

37

Body Asy, Muffler

$

$

Not available

38

MTD MC-217935-00

Screw, 10-24x.5 Tr Torx
(Superseded to 710-04549)

$

$

Not available

39

Baffle, Muffler

$

$

Not available

40

MTD MC-300719-00

Screen, Spark Arrester

$

$

Not available

41

Body, Muffler, Outer

$

$

Not available

42

MTD MC-301609-00

Lock Plate

$

$

Not available

43

MTD MC-216649-00

Nut, 10-24 Hex Lock

$

$

Currently unavailable

44

MTD MC-322655-00

Eyelet, Boot
(Superseded to MC-9131-310202)

$

$

Not available

45

MTD MC-322649-00

Flange, Boot
(Superseded to MC-9014-310203)

$

$

Not available

46

MTD MC-219881-00

Screw, 10-24x.62 Tr Hd Torx

$

$

Currently unavailable

47

MTD MC-322648-00

Boot, Carburetor
(Superseded to MC-9124-310202)

$

$

Not available

48

MTD MC-322656-00

Eyelet, Carburetor

$

$

Not available

49

MTD MC-322650-00

Flange, Carburetor
(Superseded to MC-9014-310204)

$

$

Not available

50

MTD MC-323536-00

Gasket, Carburetor
(Superseded to MC-9014-310202)

$

$

Not available

51

MTD MC-322879-00

Boot, Carburetor
(Superseded to MC-9124-310203)

$

$

Not available

52

Carburetor Asy

Note: SEE "Carburetor Assembly"

$

$

Not available

53

MTD MC-322652-00

Bracket, Carburetor
(Superseded to MC-9014-310201)

$

$

Not available

54

MTD MC-322653-00

Boot, Intake
(Superseded to MC-9124-310204)

$

$

Not available

55

MTD MC-322654-00

Spring, Garter

$

$

Not available

56

MTD MC-111105-00

Screw, 10-24, Carb Clamp
(Superseded to 710-04503)

$

$

Not available

57

MTD MC-216635-00

Washer, Special #10

$

$

Not available

58

C'shaft/Con Rod/Bearing Asy

$

$

Not available

59

MTD MC-215946-00

Bearing, Ball

$

$

Not available

60

MTD MC-300222-00

Seal, Crankshaft
(Superseded to MC-9157-310201)

$

$

Not available

61

MTD MC-102164-00

Key, Wdf #206

$

$

Not available

62

Crankcase/Fitting Asy

Note: 11600465-00; 11-00600465-02; 11600465-07; 11600465-09; 11600465-01; 11600465-03; 11600465-08; 11600465-12

$

$

Not available

63

Fitting, Pulse Line

$

$

Not available

64

MTD MC-323395-01

Clamp, Wire, Hose 1/4"

$

$

Currently unavailable

65

MTD MC-323433-00

Conduit, Flex
(Superseded to MC-9059-310201)

$

$

Not available

66

Piston Asy, 46cc

$

$

Not available

66

Piston Asy, 49cc

Note: 11600465-09; 11600465-12; 11600498-13

$

$

Not available

67

Pin, Piston

Note: 11600498-01; 11600498-03; 11600498-08; 11600498-13; 11600498-02; 11600498-04; 11600498-09

$

$

Not available

68

Bearing, Piston Pin

$

$

Not available

69

Ring, Retaining

$

$

Not available

70

Ring, Piston, 46cc

$

$

Not available

70

Ring, Piston, 49cc

$

$

Not available

71

MTD MC-300292-00

Retainer, Nut
(Superseded to MC-9014-310001)

$

$

Not available

72

MTD MC-218005-00

Nut, 10-24 Sq
(Superseded to MC-9NDC-10/24)

$

$

Not available

73

MTD MC-111095-00

Screw, 10-24x2.75 Torx

$

$

Not available

74

MTD MC-216683-00

Washer, #10 Special

$

$

Not available

75

MTD MC-301926-00

Short Block Asy

$

$

Not available
