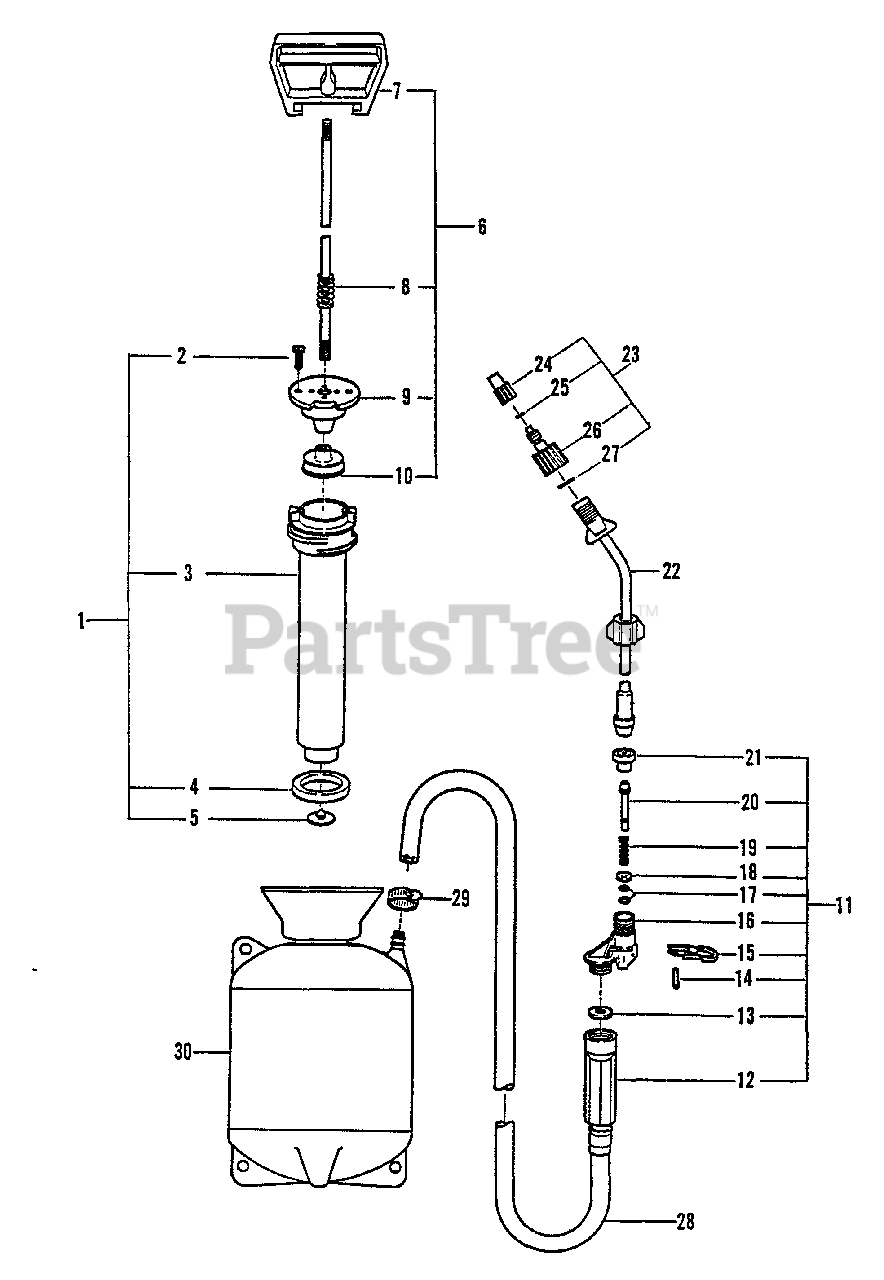

MS-2 - Echo Manual Sprayer Unit Complete Parts Diagram

Manual Sprayer

Unit Complete Parts Diagram

  • Title

1

Echo 2310961400

PUMP ASSY

Note: Includes Items 2 - 6

$

$

Not available

2

Echo 2310010000

SCREW
(Superseded to Discontinued)

$

$

Not available

3

Echo 2310030000

CYLINDER, PUMP
(Superseded to Discontinued)

$

$

Not available

4

Echo 2310040000

GASKET, PURGE
(Superseded to Discontinued)

Note: Included in Std Repair Kit

$

$

Not available

4

Echo 2310042200

GASKET, PURGE
(Superseded to Discontinued)

Note: Included in Opt Repair Kit

$

$

Not available

5

Echo 2310150000

VALVE, CHECK
(Superseded to Discontinued)

$

$

Not available

6

Echo 2310961401

HANDLE AND PISTON ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 7 - 10

$

$

Not available

7

Echo 2310280000

HANDLE, PUMP
(Superseded to Discontinued)

$

$

Not available

8

Echo 2310050000

SPRING

Note: Included in Std & Opt Repair Kit

$1.99

$

Usually ships in 2-4 days

0

9

Echo 2310020000

COVER, PUMP
(Superseded to Discontinued)

$

$

Not available

10

Echo 2310181401

PISTON ASSY
(Superseded to Discontinued)

$

$

Not available

11

Echo 2310550100

SHUT-OFF VALVE ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 12-21

$

$

Not available

12

Echo 99944100160

HANDLE

Note: When Ordered Separately, Includes Hose, Item 28

$

$

Not available

13

Echo 2310351600

WASHER

Note: Not Used When Opt. Filter is Installed

$0.99

$

Usually ships in 2-4 days

0

14

------------------

PIN

Note: Order Item 12, Not Serviced Separately

$

$

Not available

15

------------------

TRIGGER

Note: Use Item 12, Not Serviced Separately

$

$

Not available

16

Echo 99944100170

VALVE

Note: Includes Items 14, 15, 17 - 20

$

$

Not available

17

Echo 2310520000

O-RING

Note: Included in Std Repair Kit

$2.49

$

Usually ships in 2-4 days

0

17

Echo 2310522200

O-RING
(Superseded to Discontinued)

Note: Included in Opt Repair Kit

$

$

Not available

18

------------------

WASHER

Note: Order Item 12, Not Serviced Separately

$

$

Not available

19

------------------

SPRING

Note: Order Item 12, Not Serviced Separately

$

$

Not available

20

------------------

SPINDLE

Note: Order Item 12, Not Serviced Separately

$

$

Not available

21

Echo 2310500000

SEAT, VALVE

$1.99

$

Usually ships in 2-4 days

0

22

Echo 99944100130

EXTENSION, 16" STD (BRASS)

$

$

Not available

23

Echo 99944100150

NOZZLE (PLASTIC) STD

Note: Includes Items 24 - 26

$

$

Not available

Echo 99944100250

NOZZLE (BRASS) OPT

Note: Includes Items 24 - 27

$

$

Currently unavailable

24

------------------

CAP - PLASTIC

Note: Use Item 23, Not Serviced Separately

$

$

Not available

Echo 2310950000

CAP - BRASS

$6.49

$

Usually ships in 2-4 days

0

25

Echo 2310920000

O-RING

Note: Included in Std Repair Kit

$2.99

$

Usually ships in 2-4 days

0

Echo 2310922200

O-RING

Note: Included in Opt Repair Kit

$3.49

$

Usually ships in 2-4 days

0

26

------------------

BODY

Note: Use Item 23, Not Serviced Separately

$

$

Not available

27

Echo 2310890000

O-RING

Note: Included in Std Repair Kit

$2.99

$

Usually ships in 2-4 days

0

Echo 2310892200

O-RING
(Superseded to Discontinued)

Note: Included in Opt Repair Kit

$

$

Not available

28

Echo 2361460000

HOSE - 39"

$11.99

$

Usually ships in 2-4 days

0

29

Echo 2360090000

CLAMP, HOSE
(Superseded to Discontinued)

$

$

Not available

30

------------------

TANK

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

Echo 99944100280

REPAIR KIT, STD

Note: Includes All Std Seals, Refer to Literature for Illustration and Specific Application

$

$

Not available

Echo 99944100270

REPAIR KIT, OPT

Note: Includes Viton Equivalent of all Std Rubber Seals, Refer to Literature for Illustration and Specific Application

$

$

Not available

Echo 99944100180

FILTER

Note: Refer to Literature for Illustration and Specific Application

$

$

Not available

Echo 99944100260

NOZZLE, FAN SPRAY

Note: Refer to Literature for Illustration and Specific Application

$

$

Not available

Echo 99944100140

STRAP, PADDED

Note: Refer to Literature for Illustration and Specific Application

$

$

Not available

Echo 99944100120

Adj. Pressure Regulator

Note: Refer to Literature for Illustration and Specific Application

$

$

Not available

Echo 99944100050

TWIN NOZZLE ASSY - 6"

Note: Refer to Literature for Illustration and Specific Application

$

$

Not available

Echo 99944100060

TWIN NOZZLE ASSY - 11"

Note: Refer to Literature for Illustration and Specific Application

$

$

Not available

Echo 99944100070

NOZZLE, DUAL SWIVEL

Note: Refer to Literature for Illustration and Specific Application

$

$

Currently unavailable

Echo 99944100080

Weed Shield

Note: Refer to Literature for Illustration and Specific Application

$

$

Not available

Echo 99944100090

3 Nozzle Spray Boom

Note: Refer to Literature for Illustration and Specific Application

$

$

Not available
