MS 18542 (96044000800) - Murray 42" Lawn Tractor (2013) Drive Group (96044000800drive) Parts Diagram

42" Lawn Tractor

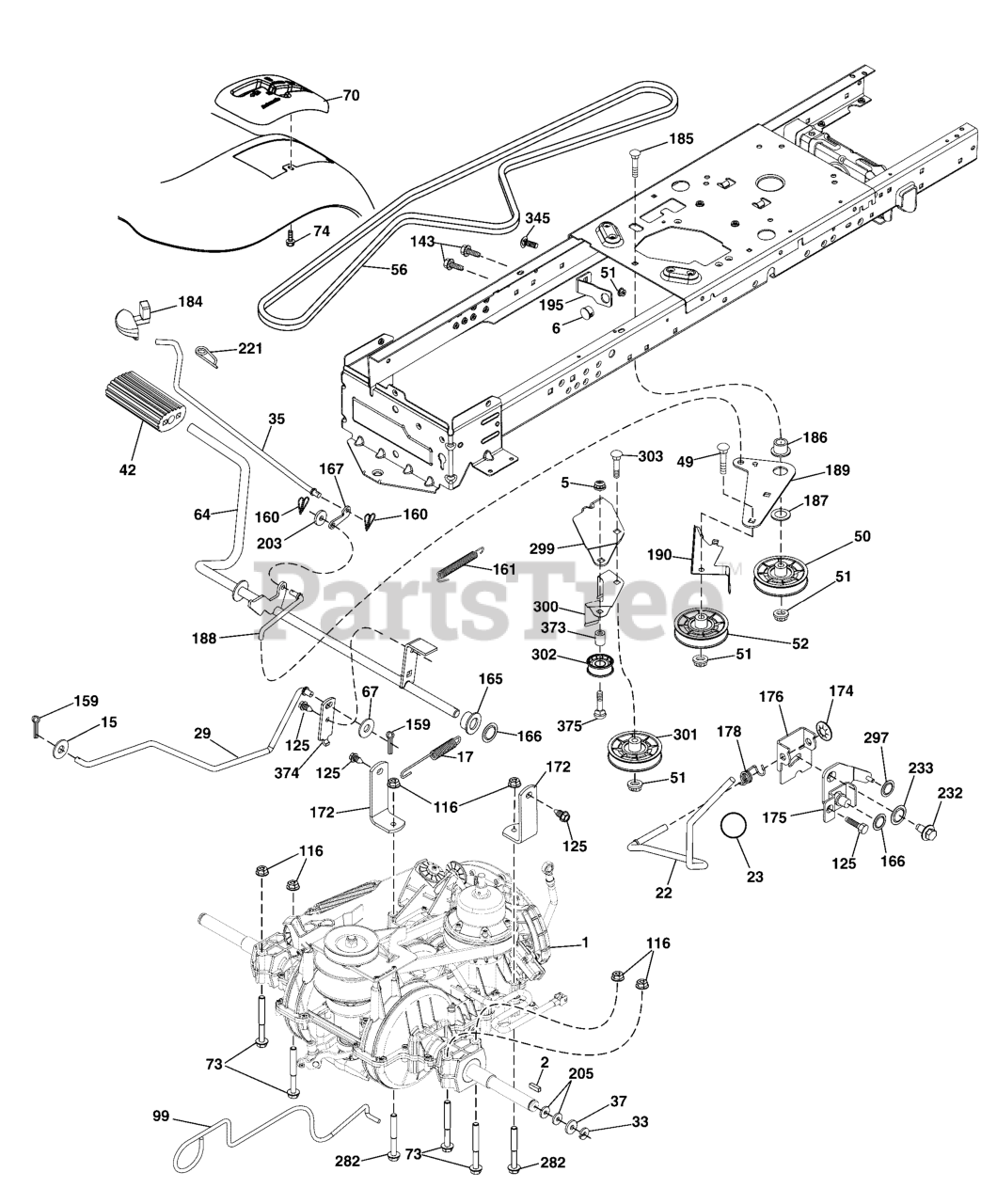

Drive Group (96044000800drive) Parts Diagram

  • Title

1

TRANSAXLE, Gentrans Variator

Note: (580486301)(Order parts from transaxle manufacturer.)

$

$

Not available

2

Murray 704998

KEY, Square, 2.0 x .1845/.1865

$9.49

$

Usually ships in 2-12 days

0

5

Murray 709431

NUT, Crownlock

$5.99

$

In Stock, only 1 left!

0

6

Murray 708034

BUSHING, Snap

$7.99

$

In Stock, only 1 left!

0

15

Murray 709228

WASHER, 13/32 x 13/16 x 16 Ga.

$4.49

$

Usually ships in 2-12 days

0

17

Murray 584954001

SPRING, Brake

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$22.99

$

Usually ships in 3-10 days

0

22

Murray 421063

ROD, Shift

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$

$

Not available

23

Murray 140845

KNOB

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$

$

Not available

29

Murray 584823101

ROD, Brake

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$12.99

$

Usually ships in 3-10 days

0

33

Murray 709020

E-RING, #5133-75

$4.99

$

Usually ships in 2-12 days

0

35

Murray 705117

ROD, Brake Parking Lt. Tex

$13.99

$

Usually ships in 2-12 days

0

37

Murray 709218

WASHER, .793 x 1.637 x 060

$4.49

$

Usually ships in 2-12 days

0

42

Murray 709453

COVER, Pedal Black Round

$8.99

$

Usually ships in 2-12 days

0

49

Murray 709418

BOLT, 3/8-16 UNC x 1-3/4 Gr 5

$6.49

$

In Stock, only 1 left!

0

50

Murray 770315

IDLER, Flat

$39.99

$

In Stock, only 1 left!

0

51

Murray 709088

NUT, Hex Flangelock, 3/8-16

$8.99

$

In Stock, only 3 left!

0

52

Murray 770314

IDLER, V-Groove

$31.99

$

Usually ships in 2-12 days

0

56

Murray 197253

BELT, Drive, 100.97"

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$

$

Not available

64

Murray 580401501

SHAFT, Assembly Pedal Brake Control

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$

$

Not available

67

Murray 709227

WASHER, 13/32 x 13/16 x 12 Ga.

$4.99

$

Usually ships in 2-12 days

0

70

Murray 415688X428

CONSOLE

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$

$

Not available

73

Murray 709436

BOLT, Hex Flange Head, 5/16-18 Gr 5

$4.49

$

Usually ships in 2-12 days

0

74

Murray 709081

SCREW, Hex Washer 1/4 X 1/2 UNC
(Superseded to 705019)

$4.99

$

Usually ships in 2-12 days

0

99

Murray 435935

ROD, Bypass

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$

$

Not available

116

Murray 708491

NUT, Lock Hex Flange, 5/16-18

$7.99

$

Usually ships in 2-12 days

0

125

Murray 705321

SCREW, 5/16-18 x 3/4
(Superseded to 709742)

$8.99

$

Usually ships in 2-12 days

0

143

Murray 709162

SCREW, Thread Rolling, 5/16-18 x 1/2

$5.49

$

Usually ships in 2-12 days

0

159

Murray 709446

PIN, Cotter 1/8 x 3/4

$4.99

$

Usually ships in 2-12 days

0

160

Murray 705029

CLIP, Retainer, Dia. 290

$8.99

$

Usually ships in 2-12 days

0

161

Murray 704989

SPRING, Return Clutch, 6.75

$22.99

$

Usually ships in 2-12 days

0

165

Murray 708279

BUSHING, Shaft Brake Hand

$6.49

$

Usually ships in 2-12 days

0

166

Murray 705245

NUT, Push, .625

$5.99

$

Usually ships in 2-12 days

0

167

Murray 705165

LATCH, Brake Parking

$8.99

$

Usually ships in 2-12 days

0

172

Murray 583974201

STRAP, Torque Lh/Rh

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$6.99

$

In Stock, only 1 left!

0

174

Murray 708304

NUT, Push, .500

$6.49

$

In Stock, only 1 left!

0

175

Murray 415677

SHAFT, Assembly Shift

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$

$

Not available

176

Murray 708280

ARM, Clevis Rod Shift

$10.99

$

Usually ships in 2-12 days

0

178

Murray 708313

SPRING, Shift Gt 2006

$6.49

$

Usually ships in 2-12 days

0

184

Murray 196439X667

HANDLE, Parking Brake, .505

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$

$

Not available

185

Murray 709420

BOLT, 3/8-16 UNC x 2-3/4 Gr 5

$6.49

$

In Stock, only 1 left!

0

186

Murray 705070

SPACER, Retainer

$11.99

$

Usually ships in 2-12 days

0

187

Murray 709233

WASHER, 13/32 x 2 x 10 Ga.

$6.49

$

In Stock, only 1 left!

0

188

Murray 705078

LINK, Clutch Ground Drive

$11.99

$

Usually ships in 2-12 days

0

189

Murray 705068

BELLCRANK, Groundrive Nesting

$10.99

$

Usually ships in 2-12 days

0

190

Murray 705069

KEEPER, Bellcrank Drive Ground

$9.49

$

Usually ships in 2-12 days

0

195

Murray 581504601

BRACKET, Brake

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$7.99

$

Usually ships in 3-10 days

0

203

Murray 708477

WASHER, 11/32 x 11/16 x 16 Ga.

$12.99

$

Usually ships in 2-12 days

0

205

Murray 709030

WASHER, 25/32 x 1-5/8 x 16 Ga.
(Superseded to 704995)

$7.99

$

In Stock, Qty 6

0

221

Murray 705155

RETAINER, Spring Clip Handle

$5.99

$

Usually ships in 2-12 days

0

232

Murray 708504

BOLT, Fin Hex, 7/16-14 x 1 Gr 5

$6.49

$

Usually ships in 2-12 days

0

233

Murray 708379

WASHER, Serrated

$6.99

$

Usually ships in 2-12 days

0

282

Murray 74490548

SCREW, Thread Rolling, 5/16-18 x 3

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$

$

Not available

297

Murray 420223

NUT, Push, 1/4

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$

$

Not available

299

Murray 415683

BRACKET, Mount Idler

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$5.99

$

Usually ships in 3-10 days

0

300

Murray 415681

KEEPER, Idler Rear

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$

$

Not available

301

Murray 415680

PULLEY, Idler V-Groove

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$

$

Not available

302

Murray 581420501

PULLEY, Idler Flat, 2.0 Od

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$26.99

$

In Stock, only 3 left!

0

303

Murray 709419

BOLT, Round Head Square Neck, 3/8-16 x 2-1/4

$5.49

$

In Stock, only 1 left!

0

345

Murray 709416

BOLT, Round Head Square Neck, 3/-16 x 1 Gr 5

$4.99

$

In Stock, only 1 left!

0

373

Murray 581461801

SPACER, Idler

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$4.99

$

In Stock, only 2 left!

0

374

Murray 581475201

ARM, Control Brake

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$6.49

$

Usually ships in 3-10 days

0

375

Murray 74760636

BOLT, Hex

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$2.49

$

Usually ships in 3-10 days

0
