MS 1838 AVCC (41AY88AR077) - McCulloch Chainsaw Powerhead Assembly Parts Diagram

Chainsaw

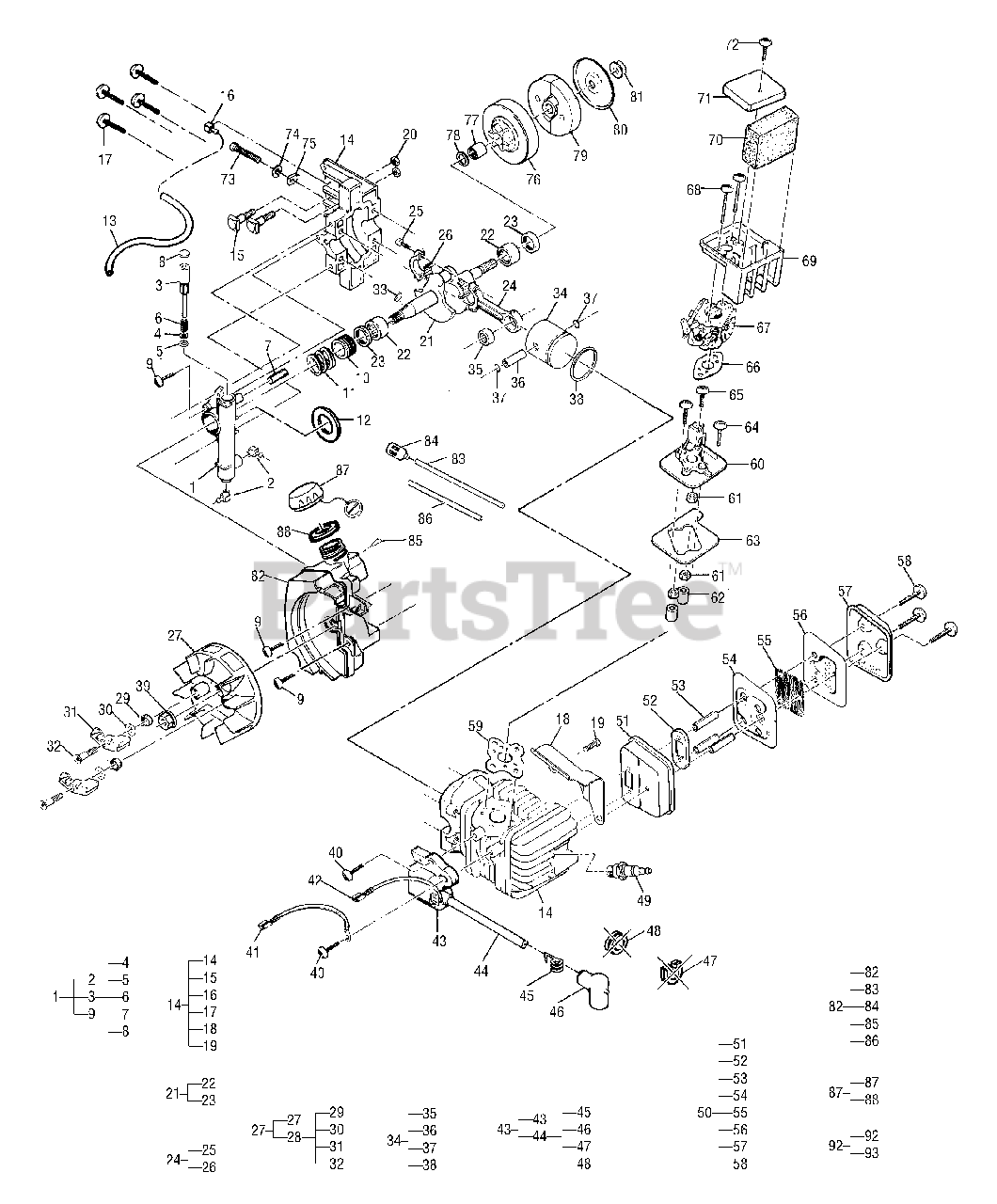

Powerhead Assembly Parts Diagram

  • Title

1

MTD MC-301304-00

Oil Pump Asy

$

$

Not available

2

MTD MC-322182-00

Fitting

$

$

Currently unavailable

3

MTD MC-301084-00

Kit, Gear/Plunger Asy

$

$

Not available

4

MTD MC-110582-00

Washer
(Superseded to MC-9WFB-5.25-08)

$

$

Not available

5

O-Ring

$

$

Not available

6

Spring

$

$

Not available

7

Pin, Dowel

$

$

Not available

8

MTD MC-322187-00

Plug, Oil Pump

$

$

Not available

9

MTD MC-111226-00

Screw, 10-24 x .62 Tr Hd Torx
(Superseded to 710-04491)

$

$

Not available

10

MTD MC-224814-00

Worm Gear

$

$

Not available

11

MTD MC-224840-00

Spring, Compression
(Superseded to MC-9024-310004)

$

$

Not available

12

MTD MC-300295-00

Seal, Foam, Oil Pump
(Superseded to MC-9252-310003)

Note: Contents of 38cc Shortblock Asy, PN 301284, must be used.

$

$

Not available

13

MTD MC-300288-00

Connecting Hose

$

$

Not available

14

MTD MC-301284-00

Short Block Asy

Note: 32/35cc piston and cylinder are no longer available: for replacement parts, the 38cc Shortblock Asy, PN 301284, must be used; Contents of 38cc Shortblock Asy, PN 301284, must be used.

$

$

Not available

15

MTD MC-83856-01

Bolt, Bar

Note: Contents of 38cc Shortblock Asy, PN 301284, must be used.

$

$

Not available

16

MTD MC-300257-00

Fitting

Note: Contents of 38cc Shortblock Asy, PN 301284, must be used.

$

$

Not available

17

MTD MC-111083-00

Screw, 12-24 x 1.0 Hx Wshr Hd
(Superseded to 710-04537)

Note: Contents of 38cc Shortblock Asy, PN 301284, must be used.

$

$

Not available

18

MTD MC-323923-00

Baffle, Air
(Superseded to MC-9082-310101)

Note: Contents of 38cc Shortblock Asy, PN 301284, must be used.

$

$

Not available

19

MTD MC-111054-00

Screw, 10-24x.625

Note: Contents of 38cc Shortblock Asy, PN 301284, must be used.

$

$

Not available

20

MTD MC-110676-00

Nut, Hx 1/4-28 Flange
(Superseded to MC-9NHC-1/4)

$

$

Not available

21

Crankshaft/Bearing Asy

$

$

Not available

22

MTD MC-213282-00

Bearing, C'shaft

$

$

Not available

23

MTD MC-83859-00

Seal, C'shaft Oil
(Superseded to MC-9157-310101)

$

$

Not available

24

Connecting Rod/Bearing Asy

Note: Contents of 38cc Shortblock Asy, PN 301284, must be used.

$

$

Not available

25

Screw, Conn Rod

Note: Contents of 38cc Shortblock Asy, PN 301284, must be used.

$

$

Not available

26

Set, Roller Pins

Note: Contents of 38cc Shortblock Asy, PN 301284, must be used.

$

$

Not available

27

MTD MC-302220-00

Flywheel/Pawl Asy

$

$

Not available

28

MTD MC-300763-01

Kit, Flywheel Pawls

$

$

Not available

29

MTD MC-216982-00

Spring, Starter Pawl

$

$

Currently unavailable

30

MTD MC-111131-00

Washer, Sp .469 OD x .222 ID

$

$

Not available

31

Pawls

$

$

Not available

32

MTD MC-322721-00

Pin, Starter Pawl

$

$

Currently unavailable

33

MTD MC-102164-00

Key, Flywheel

$

$

Not available

34

Kit, Piston, 38cc

Note: 32/35cc piston and cylinder are no longer available: for replacement parts, the 38cc Shortblock Asy, PN 301284, must be used; Contents of 38cc Shortblock Asy, PN 301284, must be used.

$

$

Not available

35

Bearing, Needle- Drawn Cup

Note: Contents of 38cc Shortblock Asy, PN 301284, must be used.

$

$

Not available

36

Pin, Piston

Note: Contents of 38cc Shortblock Asy, PN 301284, must be used.

$

$

Not available

37

Ring, Snap

Note: Contents of 38cc Shortblock Asy, PN 301284, must be used.

$

$

Not available

38

Piston, Ring, 38cc

Note: Contents of 38cc Shortblock Asy, PN 301284, must be used.

$

$

Not available

39

MTD MC-110961-00

Nut, Hx 5/16-24
(Superseded to MC-9NAB-5/16-24)

$

$

Not available

40

MTD MC-217936-00

Screw, Tr 10-24 x .75 Torx
(Superseded to 710-04491)

$

$

Not available

41

MTD MC-300555-00

Wire Asy, Ground

$

$

Not available

42

MTD MC-300556-00

Wire Asy, Stop Switch
(Superseded to MC-9010-310102)

$

$

Not available

43

MTD MC-302138-00

Ignition Asy

$

$

Not available

44

MTD MC-223884-00

Kit, Plug Wire

$

$

Not available

45

MTD MC-102556-00

Connector

$

$

Currently unavailable

46

MTD MC-95266-00

Boot

$

$

Currently unavailable

47

MTD MC-110995-00

Grommet

Note: Not used on these models

$

$

Currently unavailable

48

MTD MC-215533-01

Grommet
(Superseded to MC-9012-330301)

Note: Not used on these models

$

$

Not available

49

MTD MC-322208-00

Spark Plug RDJ7Y
(Superseded to 791-610311B)

Note: Contents of 38cc Shortblock Asy, PN 301284

$14.99

$

In Stock, only 2 left!

0

50

MTD MC-301045-00

Muffler Asy

$

$

Not available

51

Body

$

$

Not available

52

Plate, Reinforcing

$

$

Not available

53

Spacer

$

$

Not available

54

Baffle, Inner Muffler

$

$

Not available

55

MTD MC-300286-00

Screen, Spark Arrester

$

$

Not available

56

Baffle, Outer

$

$

Not available

57

Cover, Muffler

$

$

Not available

58

MTD MC-111093-00

Screw, 10-24 x 1.75 Tr Hd Torx
(Superseded to 710-04552)

$

$

Not available

59

MTD MC-300265-00

Gasket, Insulator
(Superseded to MC-9082-310001)

Note: Contents of 38cc Shortblock Asy, PN 301284

$9.49

$

Usually ships in 3-6 days

0

60

MTD MC-224820-00

Insulator, Carburetor

$

$

Not available

61

MTD MC-218315-00

Nut, Hx 10-24

$

$

Not available

62

MTD MC-322188-00

Spacer, Rubber

$

$

Not available

63

MTD MC-224850-00

Seal, Foam
(Superseded to MC-9014-310005P)

$

$

Not available

64

MTD MC-217937-00

Screw, Tr 10-24 x 1.00 Torx

$

$

Not available

65

MTD MC-217936-00

Screw, Tr 10-24 x .75 Torx
(Superseded to 710-04491)

$

$

Not available

66

MTD MC-300293-00

Gasket, Carburetor

Note: Contents of 38cc Shortblock Asy, PN 301284

$

$

Not available

67

Carburetor/Choke Asy

Note: See "Carburetor Assembly (Part 1)" & "Carburetor Assembly (Part 2)"

$

$

Not available

68

MTD MC-218083-00

Screw, Tr 10-24 x 2.0 Torx
(Superseded to 710-04553)

$

$

Not available

69

MTD MC-224824-00

Box, Air Filter

$

$

Not available

70

MTD MC-224831-00

Filter, Air

$

$

Not available

71

MTD MC-224825-00

Shield, Carburetor
(Superseded to MC-9017-310004)

$

$

Not available

72

MTD MC-111055-00

Screw, 10-14 x .625 Plastite

$

$

Not available

73

MTD MC-268656-33

Gas Bar Adj Screw Nut & Ring

$

$

Not available

74

Ring, Retaining

$

$

Not available

75

Nut, Bar Adjusting

$

$

Not available

76

MTD MC-302768-00

Drum/Sprocket/Bearing Asy

$

$

Not available

77

MTD MC-91117-00

Bearing

$

$

Currently unavailable

78

MTD MC-215259-00

Washer, Sprocket
(Superseded to MC-9WFB-10.5)

$

$

Not available

79

MTD MC-301463-00

Kit, Clutch Asy

$

$

Not available

80

MTD MC-300276-00

Plate, Dust
(Superseded to MC-9077-310101)

$

$

Not available

81

MTD MC-111079-00

Nut, Clutch, 5/16-24 LH

$

$

Not available

82

MTD MC-301834-00

Fuel Tank Asy

$

$

Not available

83

MTD MC-300289-00

Hose, Fuel Pickup

$

$

Not available

84

MTD MC-216985-00

Filter, Fuel
(Superseded to MC-9182-310001)

$

$

Not available

85

MTD MC-322199-00

Valve, Duckbill

$

$

Not available

86

MTD MC-300290-00

Hose, Primer Retain

$

$

Not available

87

MTD MC-300564-00

Cap, Fuel Asr

$

$

Not available

88

Gasket, Fuel Cap

$

$

Not available
