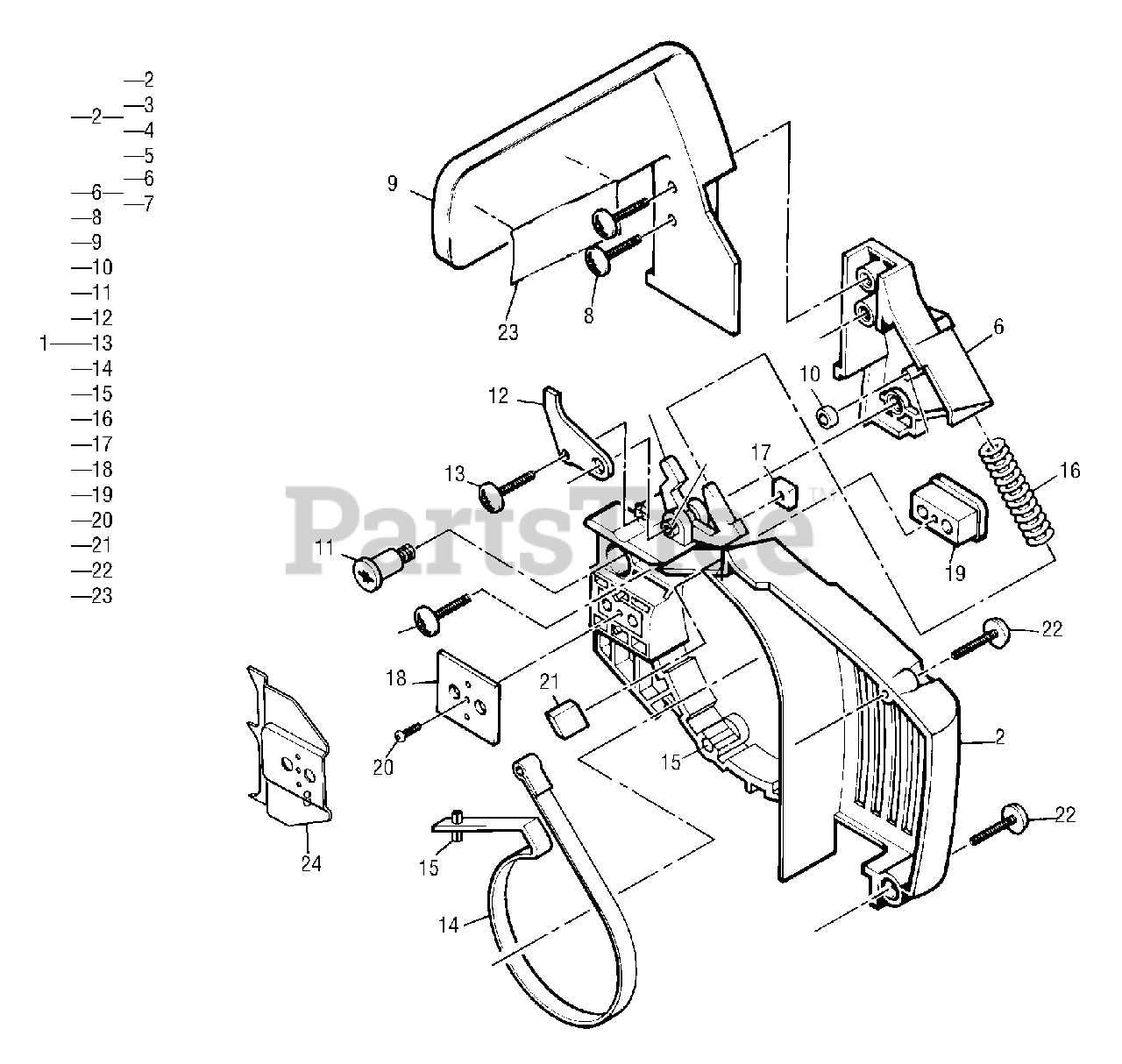

MS 1635 AVCC (41AY65AR077) - McCulloch Chainsaw Chain Brake Assembly Parts Diagram

Chainsaw

Chain Brake Assembly Parts Diagram

  • Title

1

MTD MC-301558-00

Brake Kit Asy, Yellow

$

$

Not available

2

MTD MC-301559-00

Housing Kit Asy, Yellow

$

$

Not available

3

MTD MC-216755-00

Latch, Chain Brake
(Superseded to MC-9055-310102)

$

$

Not available

4

Dowel, Spring

$

$

Not available

5

Pin, Dowel

$

$

Not available

6

MTD MC-301038-00

Lever, Actuating
(Superseded to MC-9105-310001)

Note: w/o Dowel Pin

$

$

Not available

7

Pin, Dowel

Note: (No Longer Used)

$

$

Not available

8

MTD MC-111226-00

Screw, 10-24 x .62 Tr Hd Torx
(Superseded to 710-04491)

$

$

Not available

9

MTD MC-323082-00

Guard, Hand

$

$

Not available

10

MTD MC-224849-00

Roller
(Superseded to MC-9124-310001)

$

$

Not available

11

MTD MC-224847-00

Screw, Shoulder

$

$

Not available

12

MTD MC-224848-00

Stop, Brake

$

$

Not available

13

MTD MC-300294-00

Screw, 8-16 x .75 Tr Hd Plastite
(Superseded to 710-04232)

$5.99

$

In Stock, only 2 left!

0

14

MTD MC-301037-00

Band, Brake

$

$

Not available

15

Pin, Spring (.125 x .50)

$

$

Not available

16

MTD MC-322204-00

Spring, Compression
(Superseded to MC-9024-310002)

$

$

Not available

17

MTD MC-218005-00

Nut, Square 10-24
(Superseded to MC-9NDC-10/24)

$

$

Not available

18

MTD MC-300275-00

Shield

$

$

Not available

19

MTD MC-300271-00

Spacer, Bar Pad

$

$

Not available

20

MTD MC-111101-00

Screw, 4-40 x 5/16 Taptite
(Superseded to 710-04542)

$

$

Not available

21

MTD MC-322194-00

Seal, Foam

$

$

Not available

22

MTD MC-300299-00

Screw, 8-16 x 1.0 Tr Hd Plastite
(Superseded to 710-04495)

$

$

Not available

23

MTD MC-46703-41

Label, Safety

$

$

Currently unavailable

24

MTD MC-322181-00

Spike, Bucking

Note: Optional equipment

$

$

Not available
