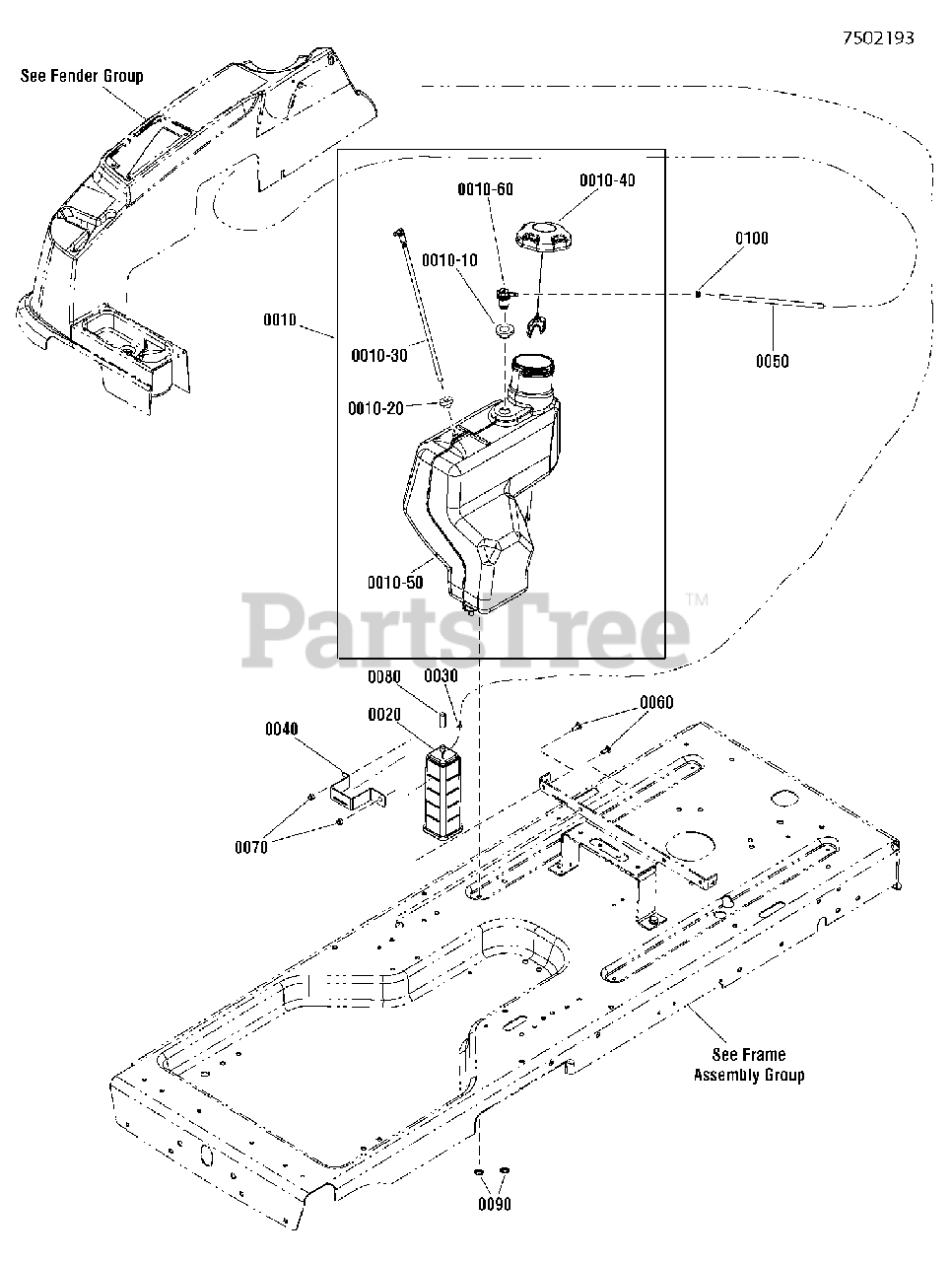

MRZT 26520 (7800850-01) - Massey Ferguson 52" Zero-Turn Mower, 26hp Briggs & Stratton Tank Emmissions Group (7502193) Parts Diagram

52" Zero-Turn Mower, 26hp Briggs & Stratton

Tank Emmissions Group (7502193) Parts Diagram

  • Title
0010

Simplicity 7104646

ASSEMBLY, Tank, Emissions
(Superseded to 7104646YP)

$292.99

$

Usually ships in 2-12 days

0

0010-10

Simplicity 209043

GROMMET
(Superseded to 799624)

$8.99

$

In Stock, Qty 16

0

0010-20

Simplicity 1726400

BUSHING, Fuel Tank, Red Rubber
(Superseded to 1726400FS)

$11.99

$

In Stock, only 2 left!

0

0010-30

Simplicity 7103536

ASSEMBLY, Elbow & Pick-Up Tube
(Superseded to 1753791YP)

$279.99

$

Usually ships in 2-12 days

0

0010-40

Simplicity 7104639

CAP, Fuel, Emissions, 3-1/2" w/Tether
(Superseded to 7104639YP)

$48.99

$

Usually ships in 2-12 days

0

0010-50

Simplicity 7103817

ASSEMBLY, Tank & Tube
(Superseded to 7104646YP)

$292.99

$

Usually ships in 2-12 days

0

0010-60

Simplicity 7104638

ASSEMBLY, Remote Vent, No Valve
(Superseded to 770046)

$16.99

$

In Stock, only 1 left!

0

0020

Simplicity 7101425

CANISTER
(Superseded to 7101425YP)

$45.99

$

In Stock, only 1 left!

0

0030

Simplicity 95855

CLAMP, Hose
(Superseded to 795230)

$3.99

$

Usually ships in 2-12 days

0

0040

Simplicity 7301099BM

BRACKET, Canister, Vapor Black
(Superseded to 7301099BZYP)

$16.99

$

Usually ships in 2-12 days

0

0050

Simplicity 7200141

HOSE, Vapor, (5MM IS x 9MM OD x 16" Long)
(Superseded to 7200141YP)

$12.99

$

Usually ships in 2-12 days

0

0060

Simplicity 80003579

BOLT, 1/4-20 X .750, Carriage, Zinc/Clear
(Superseded to 703101)

$3.99

$

In Stock, only 3 left!

0

0070

Simplicity 80002730

NUT, 1/4-20, Nylock, GRA, Zinc/Clear
(Superseded to 703232)

Note: (Was 7091603)

$4.49

$

In Stock, Qty 20+

0

0080

Simplicity 7014361

CAP, Lift Rod
(Superseded to 7014361YP)

$4.49

$

Usually ships in 2-12 days

0

0090

Simplicity 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

0100

Simplicity 7105075

CLAMP, Hose - CTL
(Superseded to 7105075YP)

$6.99

$

Usually ships in 2-12 days

0
