MRZT 26520 (7800850-00) - Massey Ferguson 52" Zero-Turn Mower, 26hp Briggs & Stratton 52" Deck Idler Group (7501581) Parts Diagram

52" Zero-Turn Mower, 26hp Briggs & Stratton

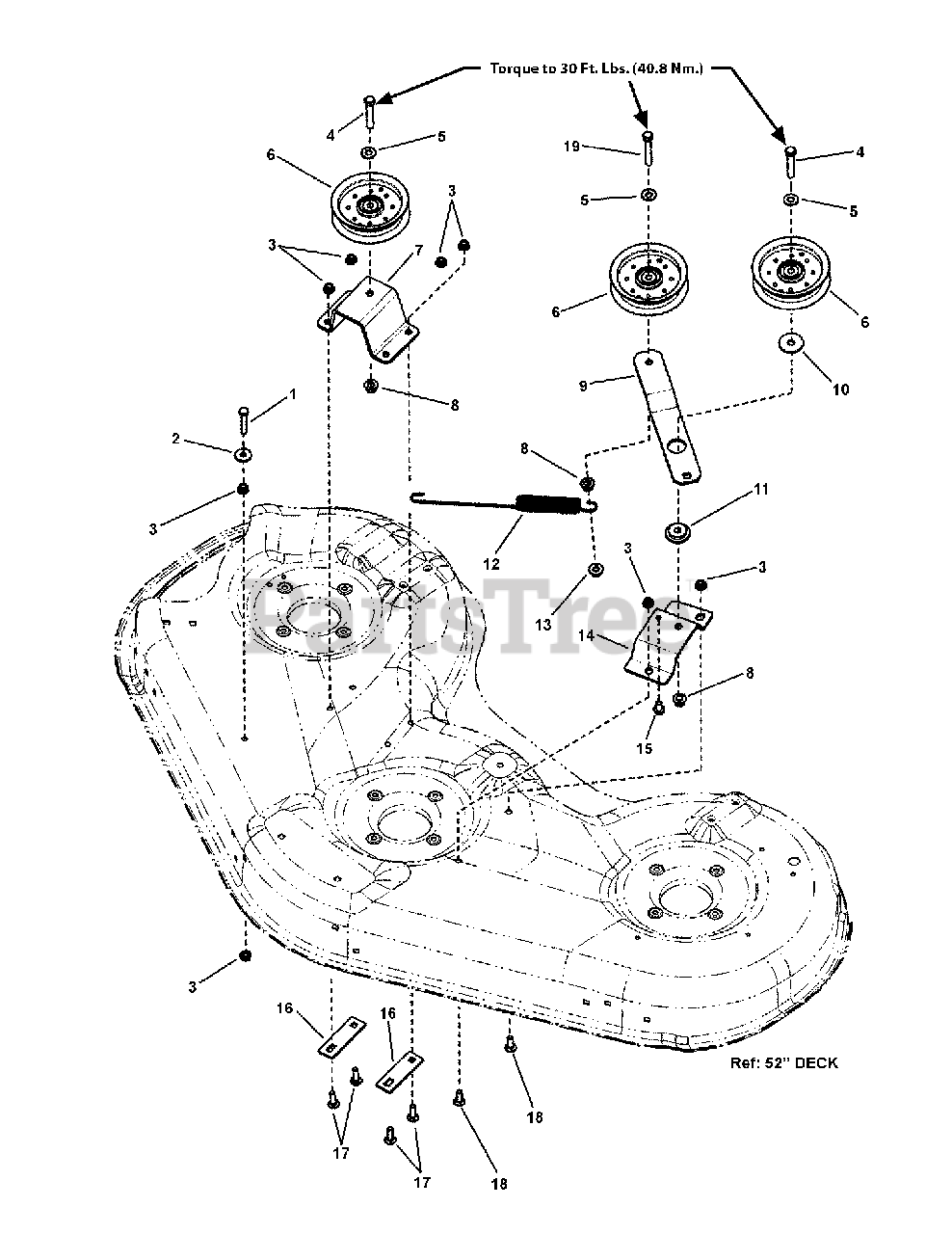

52" Deck Idler Group (7501581) Parts Diagram

  • Title

1

Simplicity 1922127

SCREW, 5/16-18 X 1-3/4"Hex Head Cap, GR 5 Yellow Zinc
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

2

Simplicity 1919381

WASHER, 5/16" Flat (.341 ID x 1.00 OD x .13 Thick) Black
(Superseded to 1919381SM)

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 1927557

NUT, 5/16-18 Hex Flange Lock, Large, Black
(Superseded to 703330)

$4.99

$

In Stock, Qty 14

0

4

Simplicity 1922130

SCREW, 3/8-16 x 2-1/2" Hex Head Cap, GR 5 Black
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

5

Simplicity 1924940

WASHER, 3/8" Flat (.41 ID x .87 OD)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 1736540

PULLEY, Idler 46/52, Mowers
(Superseded to 1736540YP)

$35.99

$

In Stock, only 2 left!

0

7

Simplicity 7301102BM

BRACKET, Idler, Rear, 46/52 RZT
(Superseded to 7301102BMYP)

$

$

Not available

8

Simplicity 1931211

NUT, 3/8-16 Hex Flange lock, GR F, BZ
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Simplicity 7301100BM

ARM, Idler, 46/52 RZT
(Superseded to 7301100BMYP)

$

$

Not available

10

Simplicity 7091331

WASHER, .406 x 1.50 x .120 Flat, Yellow Zinc
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

11

Simplicity 1714255

SPACER, .406 ID x 1.50 OD x .350 Thick, PM
(Superseded to 1714255SM)

$6.49

$

In Stock, Qty 17

0

12

Simplicity 1737415

SPRING, Extension, PTO
(Superseded to 1737415YP)

$12.99

$

In Stock, only 1 left!

0

13

Simplicity 1960339

NUT, 3/8-16 Hex Flange Lock, Large, Black
(Superseded to 1922694SM)

$6.99

$

In Stock, Qty 20+

0

14

Simplicity 1736437BM

BRACKET, Idler Mount Front 46/52, Black
(Superseded to 1736437BMYP)

$21.99

$

Usually ships in 2-12 days

0

15

Simplicity 1664847SM

SCREW, 5/16-18 x 3/4" Hex Washer Head Self-Tap, Black
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1737229BM

PLATE, Idler Bracket 46/52 Mowers
(Superseded to 1737229BMYP)

$8.49

$

Usually ships in 2-12 days

0

17

Simplicity 1931335

BOLT, 5/16-18 x 1" Round Head Short Square Neck, GR 5 Zinc
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

18

Simplicity 1931334

BOLT, 5/16-18 x 7/8" Round Head Short Square Neck, GR 5, Black
(Superseded to 704065)

$4.49

$

In Stock, Qty 6

0

19

Simplicity 1933685

SCREW, 3/8-16 x 2-1/2" Hex Head Cap GR 5 Black
(Superseded to 1933685SM)

$5.49

$

In Stock, only 1 left!

0
