MRP 216517B (84752) - Snapper 21" Walk-Behind Mower, 6.5hp DRIVE SYSTEM SELF-PROPELLED Parts Diagram

21" Walk-Behind Mower, 6.5hp

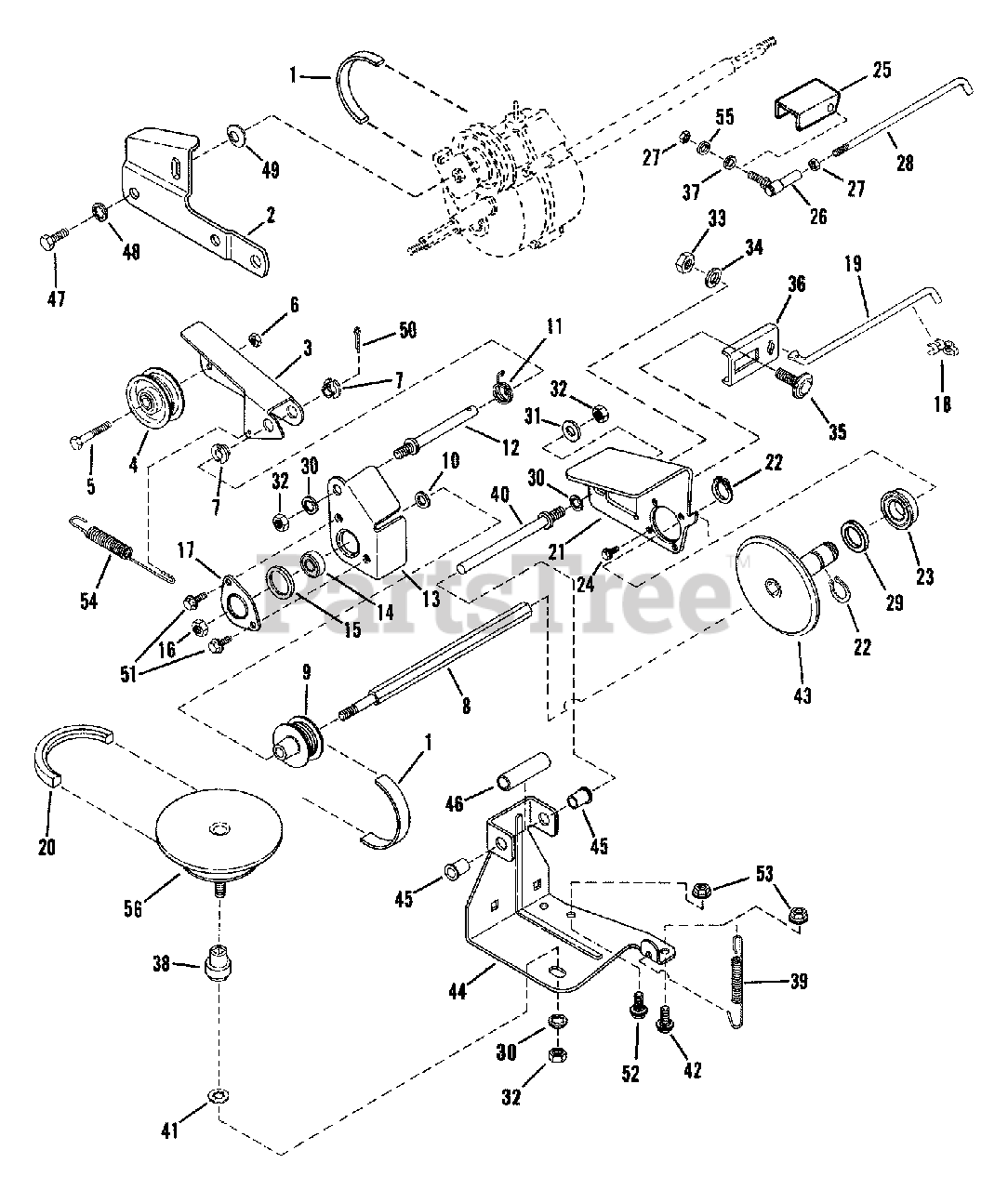

DRIVE SYSTEM SELF-PROPELLED Parts Diagram

  • Title

1

Snapper 7012354

BELT, Poly-Vee
(Superseded to 7012354YP)

$13.99

$

In Stock, Qty 12

0

2

Snapper 7034179

LINK, Differential
(Superseded to 7034179BMYP)

$20.99

$

Usually ships in 2-12 days

0

--

Snapper 7051921

ASSEMBLY, Clutch Idler
(Superseded to 7051921YP)

Note: (includes items 3 thru 7)

$108.99

$

In Stock, only 1 left!

0

3

Snapper 7032832

ARM, Clutch Idler
(Superseded to 7032832AYP)

$22.99

$

Usually ships in 2-12 days

0

4

Snapper 7012124

PULLEY, Idler
(Superseded to 7012124YP)

$18.99

$

In Stock, Qty 9

0

5

Snapper 7091025

SCREW, 1/4-28 x 1-3/8" Hex Head Cap GR5
(Superseded to 7091025YP)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7090303

NUT, 1/4-28 Hex Top Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 7

0

7

Snapper 7012117

BUSHING, 3/8" Plastic
(Superseded to 7012117SM)

$4.49

$

In Stock, Qty 11

0

8

Snapper 7072284

SHAFT, Hex Drive
(Superseded to 7072284YP)

$

$

Not available

9

Snapper 7024521

PULLEY, Poly-V, 2" O.D.
(Superseded to 7019383YP)

Note: Non Commercial Models

$54.99

$

In Stock, Qty 12

0

10

Snapper 7012316

WASHER, 3/8" Flat
(Superseded to 703946)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 7012126

SPRING, Torsion
(Superseded to 7012126YP)

$4.49

$

In Stock, only 1 left!

0

12

Snapper 7012111

STUD, Idler (3/8-24 thread)
(Superseded to 703836)

$8.49

$

In Stock, only 1 left!

0

13

Snapper 7031873

HOLDER, Bearing (Inner Half)
(Superseded to 7031873YP)

$

$

Not available

14

Snapper 7028014

BEARING, Ball, .38 I.D. Spherical O.D.
(Superseded to 7028014YP)

$17.99

$

In Stock, Qty 20+

0

15

Snapper 7011025

O-RING
(Superseded to 704008)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7090289

NUT, 3/8-24 Hex Center Lock GR5 or B
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

17

Snapper 7031809

HOLDER, Bearing (Outer Half)
(Superseded to 7031809YP)

$4.49

$

In Stock, Qty 7

0

18

Snapper 7010937

CLIP, Transfer Rod 1/4"
(Superseded to 7010937YP)

$7.49

$

In Stock, Qty 5

0

19

Snapper 7023790

ROD, Transfer
(Superseded to 7023790YP)

Note: used on Non-Euro models

$9.49

$

In Stock, Qty 11

0

--

Snapper 7051698

ASSY., Transfer Rod (Incl. items 61, 62 & 63)
(Superseded to 7051698YP)

Note: used on Self-Propelled Euro

$26.99

$

Usually ships in 2-12 days

0

20

Snapper 7046784

BELT, Engine Drive 3L (Stretch)
(Superseded to 7046784YP)

Note: used on Self-Propelled

$19.99

$

In Stock, Qty 20+

0

--

Snapper 7501000

ASSEMBLY, Driven Disc (Cantilever)
(Superseded to 7600109YP)

Note: Was 7053225, used on Self-Propelled Euro

$143.99

$

Usually ships in 2-12 days

0

21

Snapper 7035477

PLATE, Thrust

$

$

Not available

22

Snapper 7010746

RING, 5/8" External Retaining
(Superseded to 703975)

Note: used on Self-Propelled

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7026693

BALL BEARING, 3/4" I.D.
(Superseded to 707608)

Note: used on Self-Propelled

$9.49

$

In Stock, Qty 20+

0

24

Snapper 7090981

SCREW, #10-32 x 1/4" Self-Tap Machine
(Superseded to 704061)

$3.99

$

In Stock, Qty 16

0

25

Snapper 7032664

SHIELD, Hex Shaft
(Superseded to 7032664YP)

Note: used on Self-Propelled Euro

$7.99

$

Usually ships in 2-12 days

0

26

Snapper 7015753

BALL JOINT, 1/4-28
(Superseded to 7015753YP)

Note: used on Self-Propelled Euro

$10.99

$

In Stock, only 1 left!

0

27

Snapper 7090095

NUT, 1/4-28 Hex GR5
(Superseded to 7090095FS)

Note: used on Self-Propelled Euro

$3.49

$

Usually ships in 2-12 days

0

28

Snapper 7015752

LINK, Transfer
(Superseded to 7015752YP)

Note: used on Self-Propelled Euro

$22.99

$

Usually ships in 2-12 days

0

29

Snapper 7010121

WASHER, 3/4" Shim
(Superseded to 7010121YP)

$4.49

$

In Stock, Qty 6

0

30

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

31

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

32

Snapper 7091630

NUT, 3/8-24 Hex, GR B
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 1 left!

0

33

Snapper 7091511

NUT, 5/16-18 Hex GR5 or B
(Superseded to 7091511SM)

Note: Was 90196 (continued on next page)

$3.49

$

In Stock, Qty 20+

0

34

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

35

Snapper 7090316

BOLT, 5/16-18 x 3/4" Short Neck Carriage GR5
(Superseded to 703225)

Note: Was 91097

$3.99

$

In Stock, Qty 20+

0

36

Snapper 7032831

CONNECTOR, Transfer Rod
(Superseded to 7032831YP)

$

$

Not available

37

Snapper 7091294

WASHER, Flat 1/4" (European Models Only)
(Superseded to 703332)

Note: used on Self-Propelled Euro

$4.49

$

In Stock, Qty 20+

0

38

Snapper 7017696

BUSHING
(Superseded to 703971)

$5.99

$

In Stock, Qty 6

0

39

Snapper 7029025

SPRING, Wheel Drive
(Superseded to 7029025YP)

$5.99

$

In Stock, only 3 left!

0

40

Snapper 7012125

GUIDE, Thrust Plate (3/8-24 thread)
(Superseded to 703837)

$8.49

$

In Stock, only 1 left!

0

41

Snapper 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

42

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage GR5
(Superseded to 703447)

Note: Was 91026

$4.49

$

In Stock, Qty 20+

0

43

Snapper 7041855

DISC, Driven (Cantilever)
(Superseded to 7041855YP)

$41.99

$

In Stock, only 2 left!

0

--

Snapper 7059462

ASSY, Deck Bracket (Includes items 44 & 45)
(Superseded to 7600171YP)

$62.99

$

Usually ships in 2-12 days

0

44

Snapper 7033774

BRACKET, Deck
(Superseded to 7033774YP)

Note: Was 31919 (Now 17696 + 33774)

$

$

Not available

45

Snapper 7012117

BUSHING, Flange
(Superseded to 7012117SM)

$4.49

$

In Stock, Qty 11

0

46

Snapper 7021758

SPACER
(Superseded to 703941)

Note: used on Commercial models

$27.99

$

In Stock, only 4 left!

0

47

Snapper 7090534

SCREW, 5/16-18 x 1/2" Hex Head Cap, GR5
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

48

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

49

Snapper 7011724

WASHER, Spring
(Superseded to 703940)

$4.49

$

In Stock, Qty 6

0

50

Snapper 7091597

PIN, 3/32 x 1/2" Cotter
(Superseded to 703312)

Note: Was 90555

$3.99

$

In Stock, Qty 20+

0

51

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 7

0

52

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage GR5
(Superseded to 703798)

$4.49

$

In Stock, Qty 8

0

53

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

54

Snapper 7012122

SPRING, Clutch
(Superseded to 7012122YP)

$9.49

$

In Stock, Qty 20+

0

55

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

Note: used on Self-Propelled Euro

$4.49

$

In Stock, Qty 7

0

56

Snapper 7061275

KIT, Drive Disc Assembly
(Superseded to 7073528YP)

$38.99

$

In Stock, Qty 20+

0
