MRP 216014T (82526) - Snapper 21" Walk-Behind Mower, 6hp Handles & Controls (Swivel Wheel Model) Parts Diagram

21" Walk-Behind Mower, 6hp

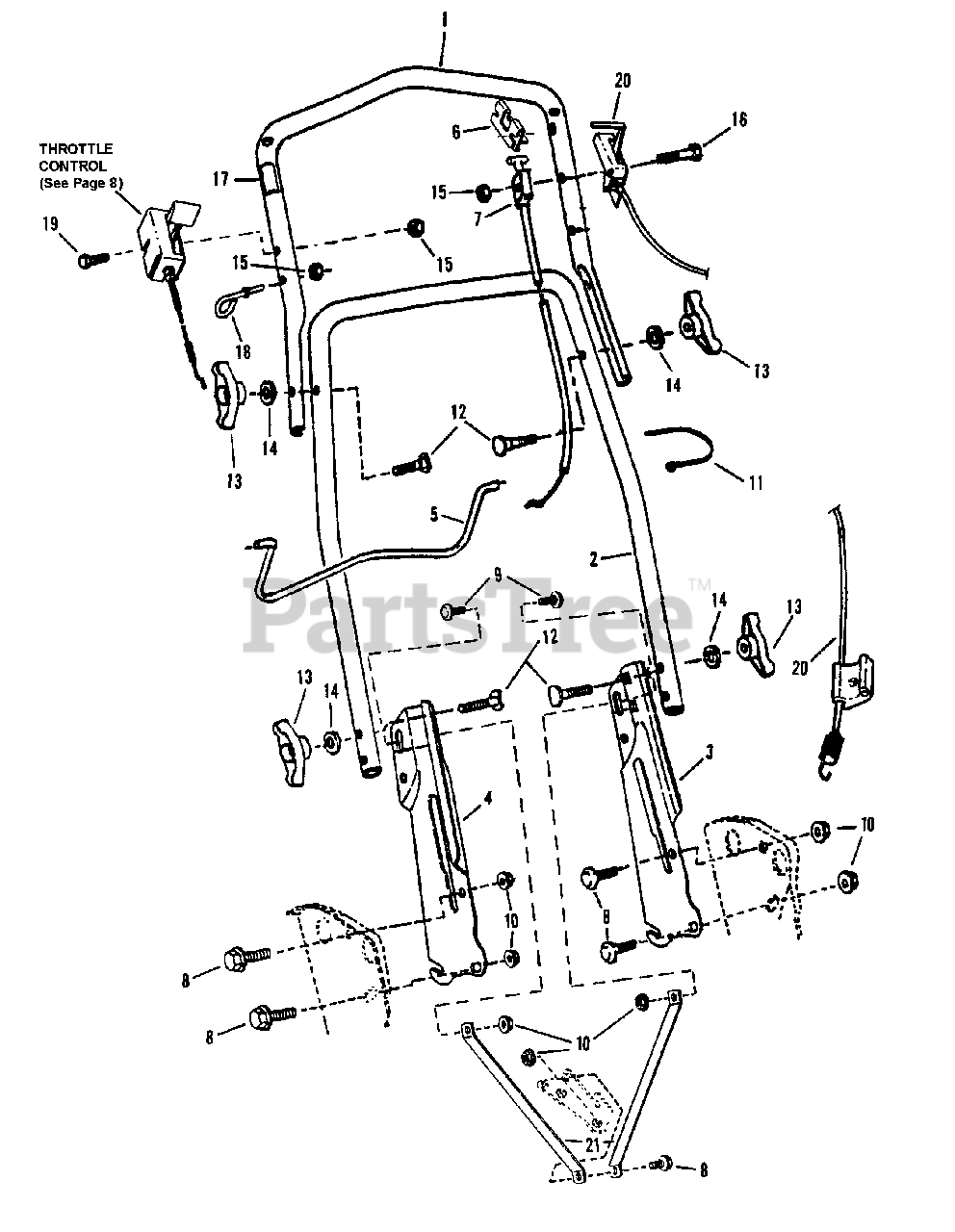

Handles & Controls (Swivel Wheel Model) Parts Diagram

  • Title

1

Snapper 7074384

HANDLE, Upper
(Superseded to 7074384YP)

Note: Was 41933, Used on Swivel

$213.99

$

Usually ships in 2-12 days

0

2

Snapper 7046737

HANDLE, Middle

Note: Used on Swivel

$

$

Currently unavailable

3

Snapper 7033985

HANDLE, Lower Left Hand
(Superseded to 7033985AYP)

Note: Used on Swivel

$43.99

$

Usually ships in 2-12 days

0

4

Snapper 7033986

HANDLE, Lower Right Hand
(Superseded to 7033986AYP)

Note: Used on Swivel

$36.99

$

In Stock, only 4 left!

0

5

Snapper 7047011

BAIL, OPC Control (12.5" Wide)
(Superseded to 7047011YP)

Note: Used on Swivel

$

$

Not available

6

Snapper 7034872

CLIP, Blade Control
(Superseded to 7034872YP)

Note: Used on Swivel

$5.99

$

In Stock, Qty 5

0

7

Snapper 7073444

CABLE, Blade Control (52-13/16")
(Superseded to 7073444YP)

Note: Was 46702, Used on Swivel

$22.99

$

In Stock, only 1 left!

0

8

Snapper 7090595

BOLT, 5/16-18 x 3/4" Flange Lock, Grade 5
(Superseded to 703354)

Note: Used on Swivel

$5.49

$

In Stock, Qty 14

0

9

Snapper 7090799

BOLT, 5/16-18 x 5/8" Carriage, Grade 5
(Superseded to 703447)

Note: Was 91026 (Used on Swivel)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070 (Used on Swivel)

$5.49

$

In Stock, Qty 20+

0

11

Snapper 7024641

TIE, Wire
(Superseded to 7024641YP)

Note: Used on Swivel

$5.99

$

In Stock, only 1 left!

0

12

Snapper 7091740

SCREW, 5/16-18 x 1-7/8 Curved Head, Grade 2
(Superseded to 7091740SM)

Note: Was 91189 (Used on Swivel)

$3.49

$

In Stock, Qty 12

0

13

Snapper 7035744

T-KNOB, 5/16-18
(Superseded to 7105085YP)

Note: Used on Swivel

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

Note: Used on Swivel

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7076978

NUT, 1/4-20 Hex, Grade 5 or B
(Superseded to 703232)

Note: Used on Swivel

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7090505

SCREW, 1/4-20 x 2" Hex Cap, Grade 5
(Superseded to 703163)

Note: Used on Swivel

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 7024211

DECAL, Blade Control (R.H. Side)
(Superseded to 7024211YP)

Note: Used on Swivel

$14.99

$

In Stock, Qty 5

0

18

Snapper 7046465

GUIDE, Rope
(Superseded to 7046465SM)

Note: Used on Swivel

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7079577

SCREW, 1/4-20 x 1-1/2" Hex Cap, Grade 5
(Superseded to 703234)

Note: Used on Swivel

$4.49

$

In Stock, only 4 left!

0

20

Snapper 7046669

CABLE, Swivel Lock
(Superseded to 7072023YP)

Note: Used on Swivel

$

$

Not available

21

Snapper 7046707

BRACES, Handle
(Superseded to 7046707YP)

Note: Used on Swivel

$34.99

$

In Stock, only 2 left!

0
