MRP 216014B (82525) - Snapper 21" Walk-Behind Mower, 6hp Front Wheels (Swivel Wheel Model) Parts Diagram

21" Walk-Behind Mower, 6hp

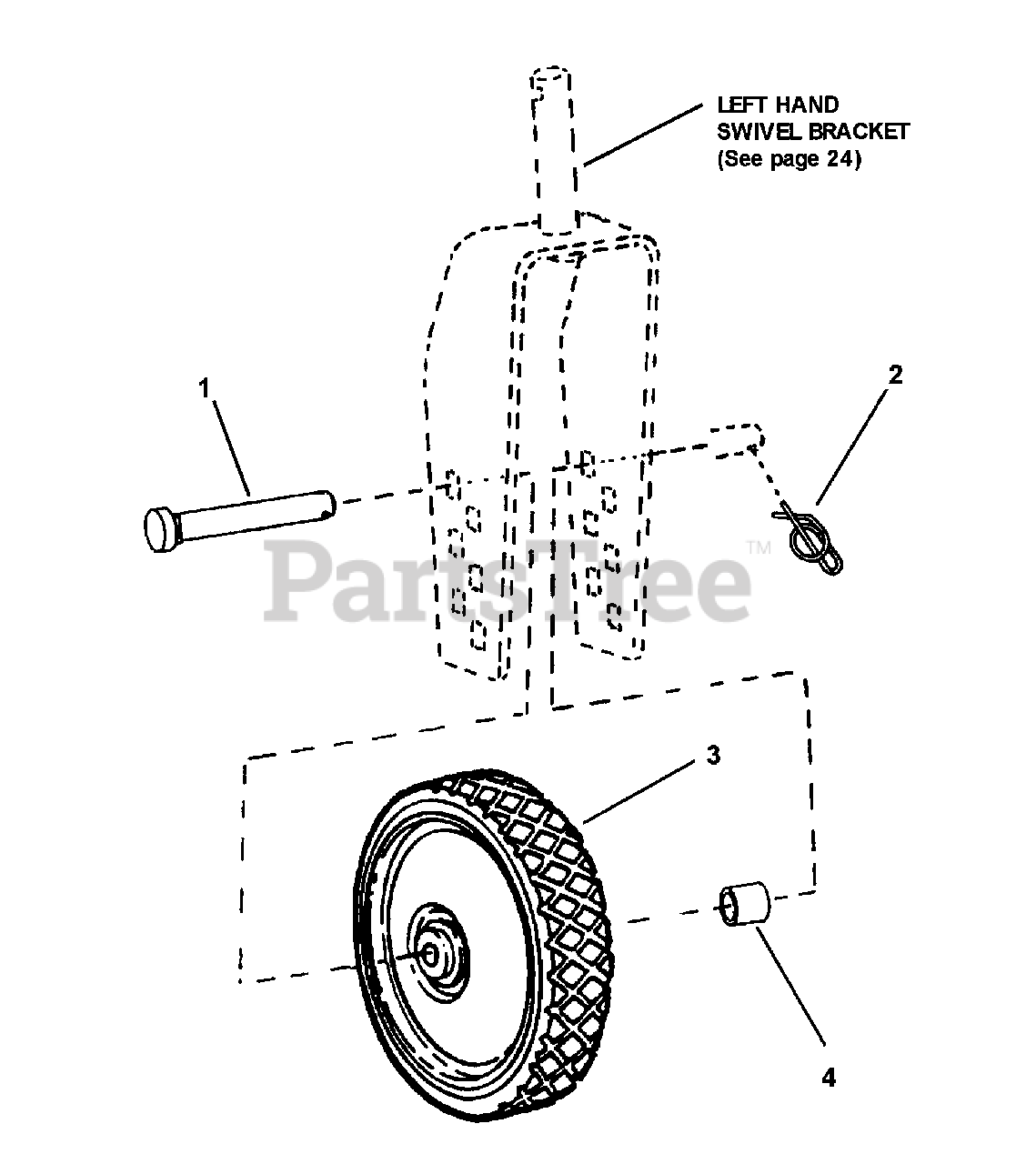

Front Wheels (Swivel Wheel Model) Parts Diagram

  • Title

1

Snapper 7046667

PIN, Wheel 7/16"x 2.75"
(Superseded to 7046667YP)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper 7046708

PIN, Swivel Wheel Lock
(Superseded to 7046708YP)

$3.99

$

In Stock, only 2 left!

0

3

Snapper 7035727

WHEEL, 8 x 1.75 Steel
(Superseded to 7035727YP)

$28.99

$

In Stock, Qty 20+

0

4

Snapper 7046666

SPACER, Wheel

$

$

Not available

Snapper 7031961

WASHER, 7/16" Flat
(Superseded to 703964)

Note: Space wheel as needed

$4.49

$

In Stock, Qty 20+

0
