MQT15068LNSN - Generac 150kW Home Standby Generator (SN: 4941730 - 4941731) (2008) Mounting Base 6.8L 150Kw (0F2975) Parts Diagram

150kW Home Standby Generator

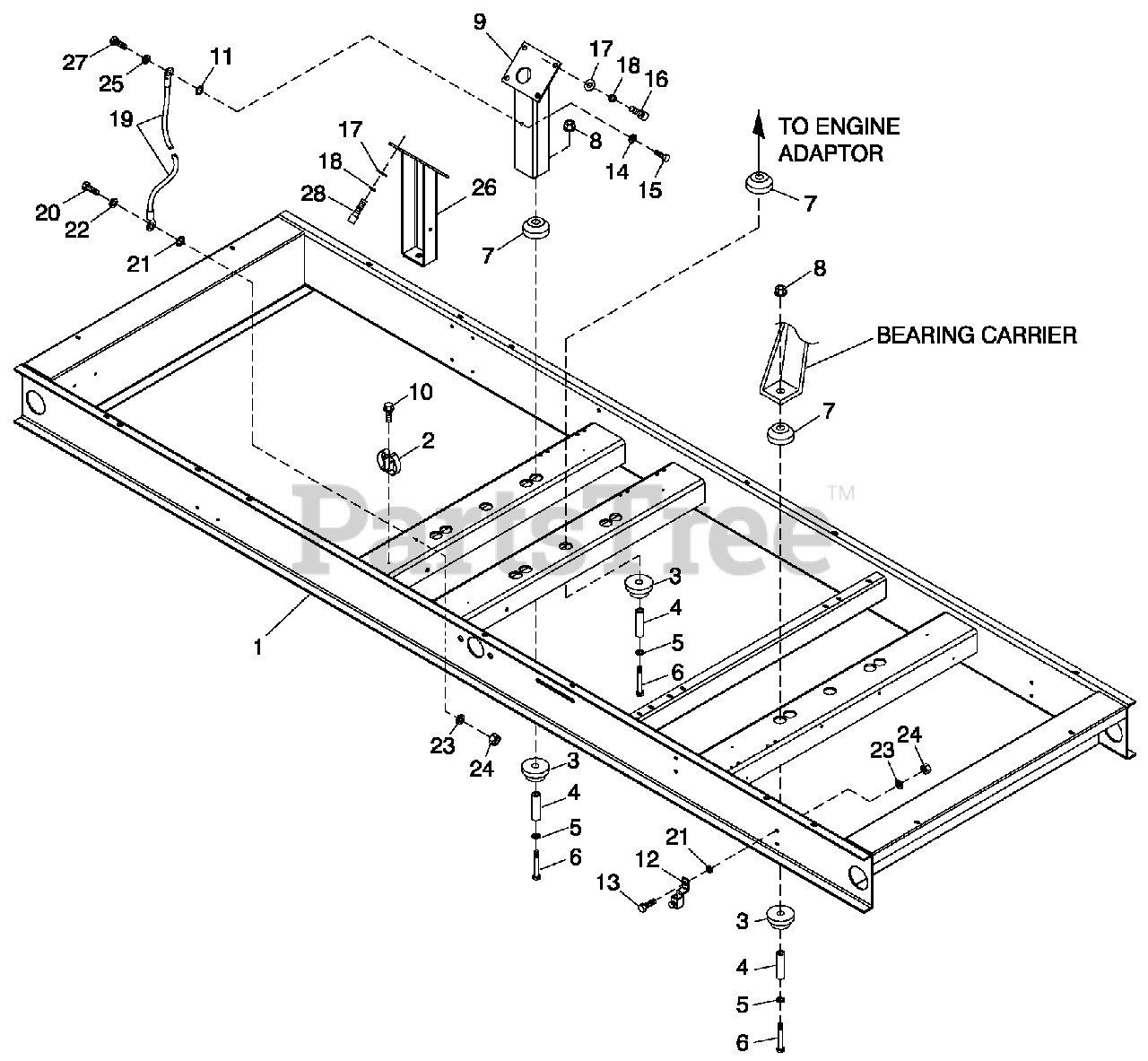

Mounting Base 6.8L 150Kw (0F2975) Parts Diagram

  • Title
1

Generac 0F6947

BASE CPL 150KW2P

$

$

Not available

2

Generac 065852

SPRING CLIP HOLDER ,37-.62

$

$

Not available

3

Generac 052252

DAMPENER VIBRATION
(Superseded to G052252)

$4.49

$

Usually ships in 2-12 days

0

4

Generac 052257

SPACER .49 X .62 X 1.87 PWDR/ZINC

$

$

Not available

5

Generac 052259

WASHER FLAT M12

$

$

Not available

6

Generac 055597

SCREW HHC M12-1.75 X 85 G8.8

$

$

Not available

7

Generac 052251A

DAMPENER VIBRATION 50 WHITE

$20.99

$

Usually ships in 2-12 days

0

8

Generac 052860

NUT LOCKING M12-1.75

$

$

Not available

9

Generac 0F2895

SUPPORT ENG 5.4L LH/RH 6.8L RH

$287.99

$

Usually ships in 2-12 days

0

10

Generac 045764

SCREW HHTT M4-0.7X8BP
(Superseded to G045764)

$0.99

$

In Stock, only 1 left!

0

11

Generac 022447

WASHER SHAKEPROOFINT1/4

$

$

Not available

12

Generac 061383

LUG SOLDERLESS 3/0-#4 X 13/32 CU

$

$

Not available

13

Generac 043107

SCREW HHC M8-1.25X 25 G8.8

$

$

Not available

14

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

15

Generac 049813

NUT HEX M6 X 1.0 G8 YEL CHR
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

16

Generac 057192

SCREW SHC M10-1.5 X 30 G12.9

$

$

Not available

17

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

18

Generac 046526

WASHER LOCK M10

$

$

Not available

19

Generac 0536210410

ASSY WIRE 14.00"

$

$

Not available

20

Generac 042909

SCREW HHC M8-1.25X 30 G8.8
(Superseded to G042909)

$0.99

$

In Stock, only 4 left!

0

21

Generac 022261

WASHER SHAKEPROOF INT 3/8

$

$

Not available

22

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

23

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$2.49

$

In Stock, Qty 10

0

24

Generac 045771

NUT HEXM8-1.25G8YEL CHR
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

25

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

26

Generac 0F2910

SUPPORT, ENGINE 6.8L LH SIDE

$180.99

$

Usually ships in 2-12 days

0

27

Generac 038750

SCREW HHC M6-1.0X 30 G8.8

$

$

Not available

28

Generac 090502

SCREW SHC M10-1.5 X 60 G12.9

$

$

Not available
