MQT15068GVAY - Generac 150kW Home Standby Generator (SN: 6359295 - 6360801) (2011) Fuel Natural Gas G3 130/150KW Emissions (0H0055) Parts Diagram

150kW Home Standby Generator

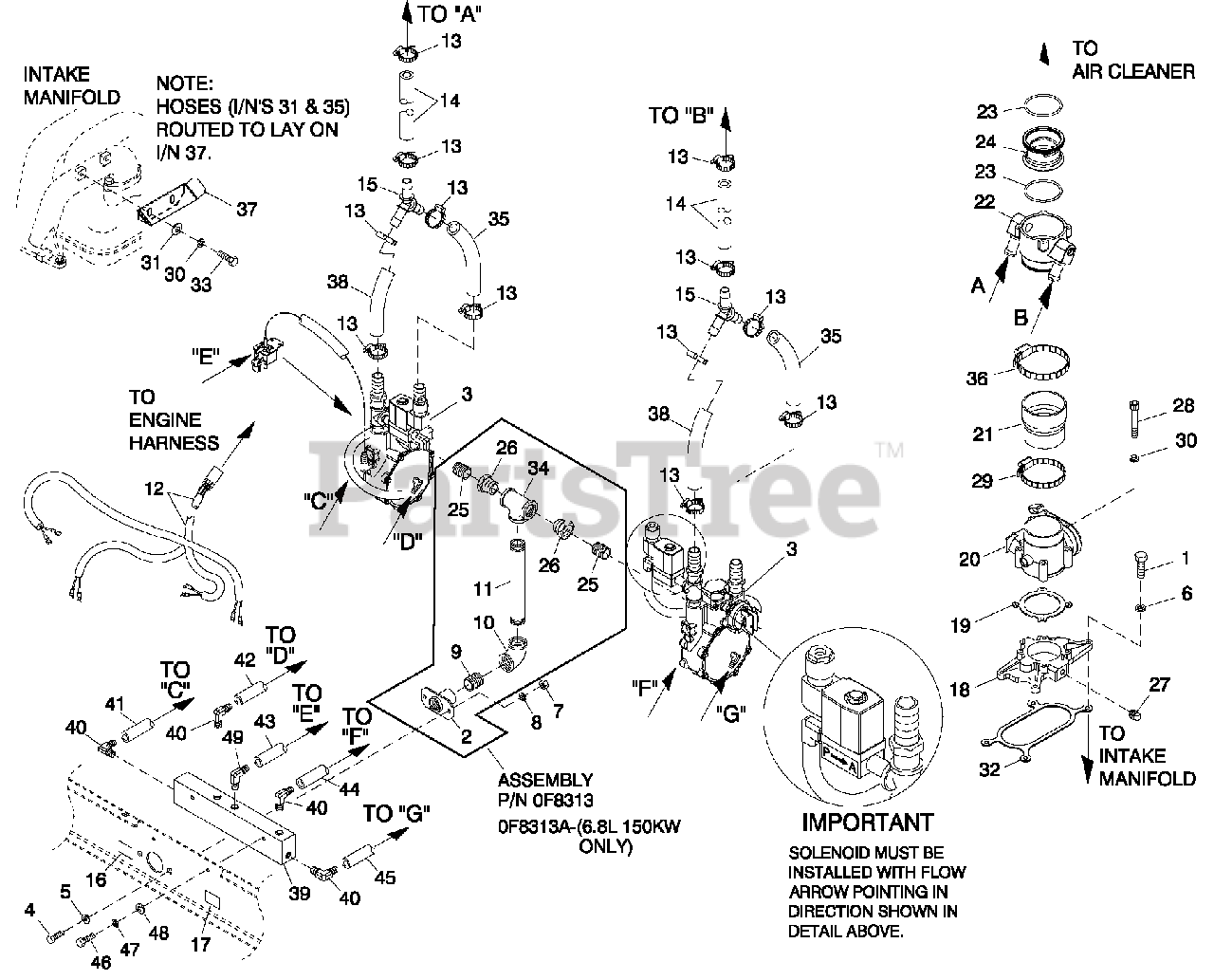

Fuel Natural Gas G3 130/150KW Emissions (0H0055) Parts Diagram

  • Title
1

Generac 033212

SCREW HHC 5/16-18 X 1-1/4 G5

$

$

Not available

2

Generac 065908

SUPPORT NAT GAS SOLENOID

$

$

Not available

3

Generac 0G9783

REG 6.8L CPL 130 KW N/G EMISS

Note: ORDER 0G97830SRV

$

$

Not available

Generac 0G9783A

REG 6.8L CPL 150 KW N/G EMISS

Note: ORDER 0G9783ASRV

$

$

Not available

4

Generac 052617

SCREW HHC M12-1.75 X 20 G8.8

$

$

Not available

5

Generac 022304

WASHER FLAT 1/2 ZINC
(Superseded to G022304)

$7.49

$

In Stock, Qty 10

0

6

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

7

Generac 045773

NUT HEX M12-1.75 G8 YEL CHR

$

$

Not available

8

Generac 022195

WASHER LOCK 1/2

$

$

Not available

9

Generac 039130

NIPPLE CLOSE 1.25 NPT X 1.625

$

$

Not available

10

Generac 030131

ELBOW 90D1-1/4 NPT

$

$

Not available

11

Generac 031015

NIPPLE PIPE 1-1/4 NPT X 3 (130 KW)

$

$

Not available

Generac 088963

NIPPLE PIPE 1.25 NPT X 5.5 BLIRN (150 KW)

$

$

Not available

12

Generac 0G5989

HARNESS, FUEL JUMPER DUAL REG

$584.99

$

Usually ships in 2-12 days

0

13

Generac 057822

CLAMP HOSE #8 .53-1.00
(Superseded to G057822)

$3.99

$

Usually ships in 2-12 days

0

14

Generac 059057

HOSE 3/4 ID SAE-30R2 (42" LG)

$

$

Not available

15

Generac 0F4408

Y CONNECTOR 500 SERIES BARBS

$12.99

$

Usually ships in 2-12 days

0

16

Generac 0D1509

DECAL INLET PRESSURE

$8.49

$

Usually ships in 2-12 days

0

17

Generac 050279

DECAL FUEL INLET NG

$

$

Not available

18

Generac 0H2353

ASSY,ADAPTER,THROTTLE BODY

Note: ORDER 0J7476

$

$

Not available

19

Generac 0E4390

GASKET GOVERNOR ACTUATOR

$2.99

$

Usually ships in 2-12 days

0

20

Generac 0E4392

ACTUATOR BOSCH 60 GOVERNOR

$753.99

$

Usually ships in 2-12 days

0

21

Generac 0F0960

REDUCER 3.0" TO 2.75" TURBO

$141.99

$

Usually ships in 2-12 days

0

22

Generac 0F3885

MIXER 40/60MM ACTUATOR ASSY

$144.99

$

Usually ships in 2-12 days

0

23

Generac 0G3167

O-RING 2-3/4X3/32X2-15/16

$1.49

$

Usually ships in 2-12 days

0

24

Generac 0F3691F

VENTURI THROTTLE 44MM (130 KW)

$5.99

$

Usually ships in 2-12 days

0

Generac 0F3691J

VENTURI THROTTLE 50MM (150 KW)

$5.49

$

Usually ships in 2-12 days

0

25

Generac 026915

NIPPLE CLOSE 3/4X1.375

$

$

Not available

26

Generac 0A8064

BSHG RDCRHEX1-1/4-3/4

$35.99

$

Usually ships in 2-12 days

0

27

Generac 026073A

PLUG STD PIPE 1/4 STEEL SQ HD

$1.99

$

Usually ships in 2-12 days

0

28

Generac 0D2157

SCREW SHC M6-1.0 X 50 C8.8

$1.49

$

Usually ships in 2-12 days

0

29

Generac 039294

CLAMP HOSE #44 2.31-3.25

$

$

Not available

30

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

31

Generac 049811

WASHER FLAT M6
(Superseded to G049811)

$0.99

$

In Stock, Qty 5

0

32

Generac 0D2698

GASKET ADAPTER THROT BODY

$48.99

$

Usually ships in 2-12 days

0

33

Generac 042568

SCREW HHC M6-1.0X 20 G8.8

$

$

Not available

34

Generac 064346

PIPE TEE 1-1/4 NPT

$

$

Not available

35

Generac 059057

HOSE 3/4 ID SAE-30R2 (12" LG)

$

$

Not available

36

Generac 066212

CLAMP HOSE #52 2.81-3.75

$

$

Not available

37

Generac 0G46350ST03

BRACKET, HOSE RISER

$38.99

$

Usually ships in 2-12 days

0

38

Generac 059057

HOSE 3/4 ID SAE-30R2 (9.5" LG)

$

$

Not available

39

Generac 0G5652

MANIFOLD, EMISSIONS VACUUM

$311.99

$

Usually ships in 2-12 days

0

40

Generac 039450

BARBED EL 90 3/16X1/8

$

$

Not available

41

Generac 077879

HOSE VACUUM 5/32 (5" LG)

$

$

Not available

42

Generac 077879

HOSE VACUUM 5/32 (7" LG)

$

$

Not available

43

Generac 077879

HOSE VACUUM 5/32 (18" LG)

$

$

Not available

44

Generac 077879

HOSE VACUUM 5/32 (6" LG)

$

$

Not available

45

Generac 077879

HOSE VACUUM 5/32 (8" LG)

$

$

Not available

46

Generac 045757

SCREW HHC M6-1.0X 25 G8.8
(Superseded to G045757)

$0.99

$

Usually ships in 2-12 days

0

47

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

48

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

49

Generac 0F1866A

BARBED EL W/VENT (.052")

$100.99

$

Usually ships in 2-12 days

0
