MPK 60 RS (59A40014727) - Cub Cadet Yanmar Tractor Mid PTO Kit Attachment PTO Kit Parts Diagram

Tractor Mid PTO Kit Attachment

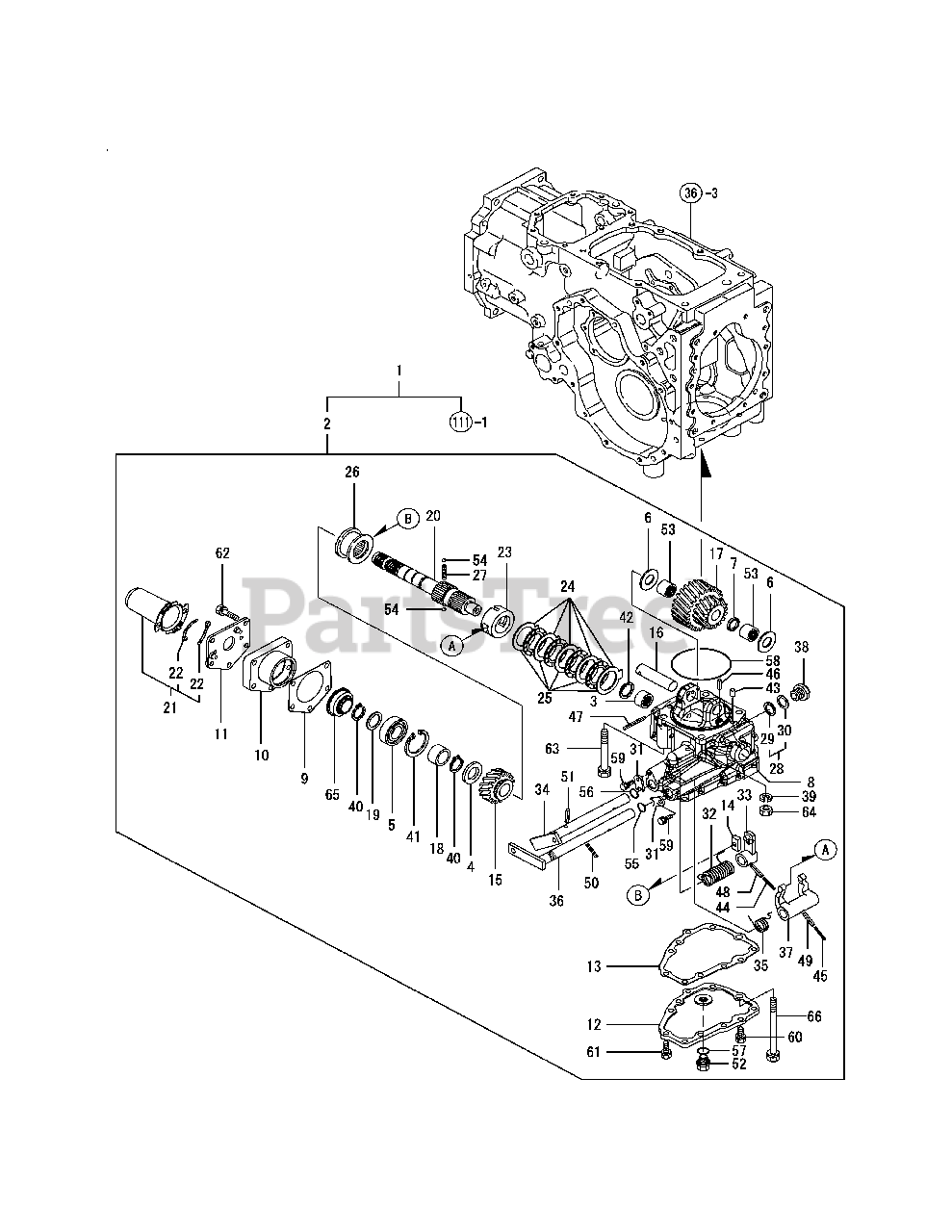

PTO Kit Parts Diagram

  • Title

1

Cub Cadet N/A

MID PTO KIT

$

$

Currently unavailable

2

Cub Cadet CY-1A8160-26610

MID PTO, MISSION KIT

$

$

Currently unavailable

3

Cub Cadet CY-194505-24160

NEEDLE 20/16

$

$

Not available

4

Cub Cadet CY-194065-25340

WASHER 25X42X4.8

$

$

Not available

5

Cub Cadet CY-194640-25390

BALL BEARING

$

$

Not available

6

Cub Cadet CY-194190-26351

WASHER 20X41X2.5

$

$

Not available

7

Cub Cadet CY-198220-26570

WASHER 20.5X25X4

$

$

Not available

8

Cub Cadet CY-198220-26711

CASE,MID PTO DRIVE

$

$

Not available

9

Cub Cadet CY-198220-26730

GASKET, CASE

$

$

Not available

10

Cub Cadet CY-198220-26740

CASE, SEAL

$

$

Not available

11

Cub Cadet CY-198220-26750

COVER

$

$

Not available

12

Cub Cadet CY-198220-26761

COVER, MID PTO CASE

$

$

Not available

13

Cub Cadet CY-198220-26771

GASKET, CASE COVER

$

$

Not available

14

Cub Cadet CY-198220-26790

SHOE. SHIFTER

$

$

Not available

15

Cub Cadet CY-198220-26800

GEAR, MID PTO DRIVE

$

$

Not available

16

Cub Cadet CY-198220-26810

SHAFT, IDLER

$

$

Not available

17

Cub Cadet CY-198220-26820

GEAR, IDLER

$

$

Not available

18

Cub Cadet CY-198220-26830

COLLAR 25X34X19.4

$

$

Not available

19

Cub Cadet CY-194190-26840

SPACER 25X36X1.6

$

$

Not available

20

Cub Cadet CY-198220-26840

SHAFT, MID PTO DRIVE

$

$

Not available

21

Cub Cadet CY-194850-26850

COVER ASSY, SHAFT

$

$

Not available

22

Cub Cadet CY-194850-26870

SPRING, SHIFT COVER

$

$

Not available

23

Cub Cadet CY-198220-26850

ACTUATOR

$

$

Not available

24

Cub Cadet CY-198220-26860

STEEL PLATE

$

$

Not available

25

Cub Cadet CY-198220-26870

SHOE. MID PTO BRAKE

$

$

Not available

26

Cub Cadet CY-198220-26890

SLIDER, MID PTO

$

$

Not available

27

Cub Cadet CY-198220-26910

SPRING

$

$

Not available

28

Cub Cadet CY-198220-26930

PACKING KIT

$

$

Not available

29

Cub Cadet CY-198220-26940

PACKING 18

$

$

Not available

30

Cub Cadet CY-23414-180000

GASKET 18, ROUND

$

$

Not available

31

Cub Cadet CY-198230-27540

PLATE

$

$

Not available

32

Cub Cadet CY-198220-27600

SPRING

$

$

Not available

33

Cub Cadet CY-198220-27690

ARM, MID PTO SHIFT

$

$

Not available

34

Cub Cadet CY-198220-27720

SHAFT, MID PTO SHIFT
(Superseded to CY-198220277201)

$

$

Not available

35

Cub Cadet CY-198220-27840

SPRING

$

$

Not available

36

Cub Cadet CY-198220-27850

SHAFT, MID PTO BRAKE

$

$

Not available

37

Cub Cadet CY-198220-27860

LEVER, MID PTO BRAKE

$

$

Not available

38

Cub Cadet CY-194464-52190

SWITCH, SAFETY START

$

$

Not available

39

Cub Cadet CY-22217-100000

SPRING WASHER 10

$

$

Not available

40

Cub Cadet CY-22242-000250

CIRCLIP 25S

$

$

Not available

41

Cub Cadet CY-22252-000520

CIRCLIP 52

$

$

Not available

42

Cub Cadet CY-22262-000280

CIRCLIP 28

$

$

Not available

43

Cub Cadet CY-22312-080120

PARALLEL PIN 8X12

$

$

Not available

44

Cub Cadet CY-22351-035028

SPRING PIN 3.5X28

$

$

Not available

45

Cub Cadet CY-22351-035028

SPRING PIN 3.5X28

$

$

Not available

46

Cub Cadet CY-22351-050020

SPRING PIN 5X20

$

$

Not available

47

Cub Cadet CY-22351-050050

SPRING PIN 5X50

$

$

Not available

48

Cub Cadet CY-22351-060028

SPRING PIN 6X28

$

$

Not available

49

Cub Cadet CY-22351-060028

SPRING PIN 6X28

$

$

Not available

50

Cub Cadet CY-22351-060028

SPRING PIN 6X28

$

$

Not available

51

Cub Cadet CY-22351-060028

SPRING PIN 6X28

$

$

Not available

52

Cub Cadet CY-23491-140002

PLUG 14

$

$

Not available

53

Cub Cadet CY-24161-202620

NEEDLE BEARING

$

$

Not available

54

Cub Cadet CY-24190-080001

BALL 1/4, STEEL

$

$

Not available

55

Cub Cadet CY-24311-000125

O-RING 1A P-12.5

$

$

Not available

56

Cub Cadet CY-24311-000125

O-RING 1A P-12.5

$

$

Not available

57

Cub Cadet CY-24311-000160

O-RING 1A P-16.0

$

$

Not available

58

Cub Cadet CY-24321-001000

O-RING 1A G-100.0

$

$

Not available

59

Cub Cadet CY-26013-060122

BOLT M 6X 12

$

$

Not available

60

Cub Cadet CY-26013-080162

BOLT W/WASHER M8X16

$

$

Not available

61

Cub Cadet CY-26013-080202

BOLT W/WASHER M8X20

$

$

Not available

62

Cub Cadet CY-26013-080352

BOLT M 8X 35

$

$

Not available

63

Cub Cadet CY-26013-100852

BOLT W/WASHER 10X 85

$

$

Not available

64

Cub Cadet CY-26716-100002

NUT 10

$

$

Not available

65

Cub Cadet CY-933147-10350

SEAL QLF 25471121

$

$

Not available

66

Cub Cadet CY-26013-101202

BOLT W/WASHER 10X120

$

$

Not available

Note: 36-3 Refer to TRANSMISSION CASE, Ref No 3

Note: Go to model Ex2900 or Ex3200 Tractor

$

$

Not available

Note: 111-1 Refer to MID P.T.O. KIT CONTROLS, Ref No 1

Note: Go to model Ex2900 or Ex3200 Tractor

$

$

Not available
