MPH 625 E (881548) - Murray 19" Walk-Behind Mower, Canada (2012) Handles Group (881305) Parts Diagram

19" Walk-Behind Mower, Canada

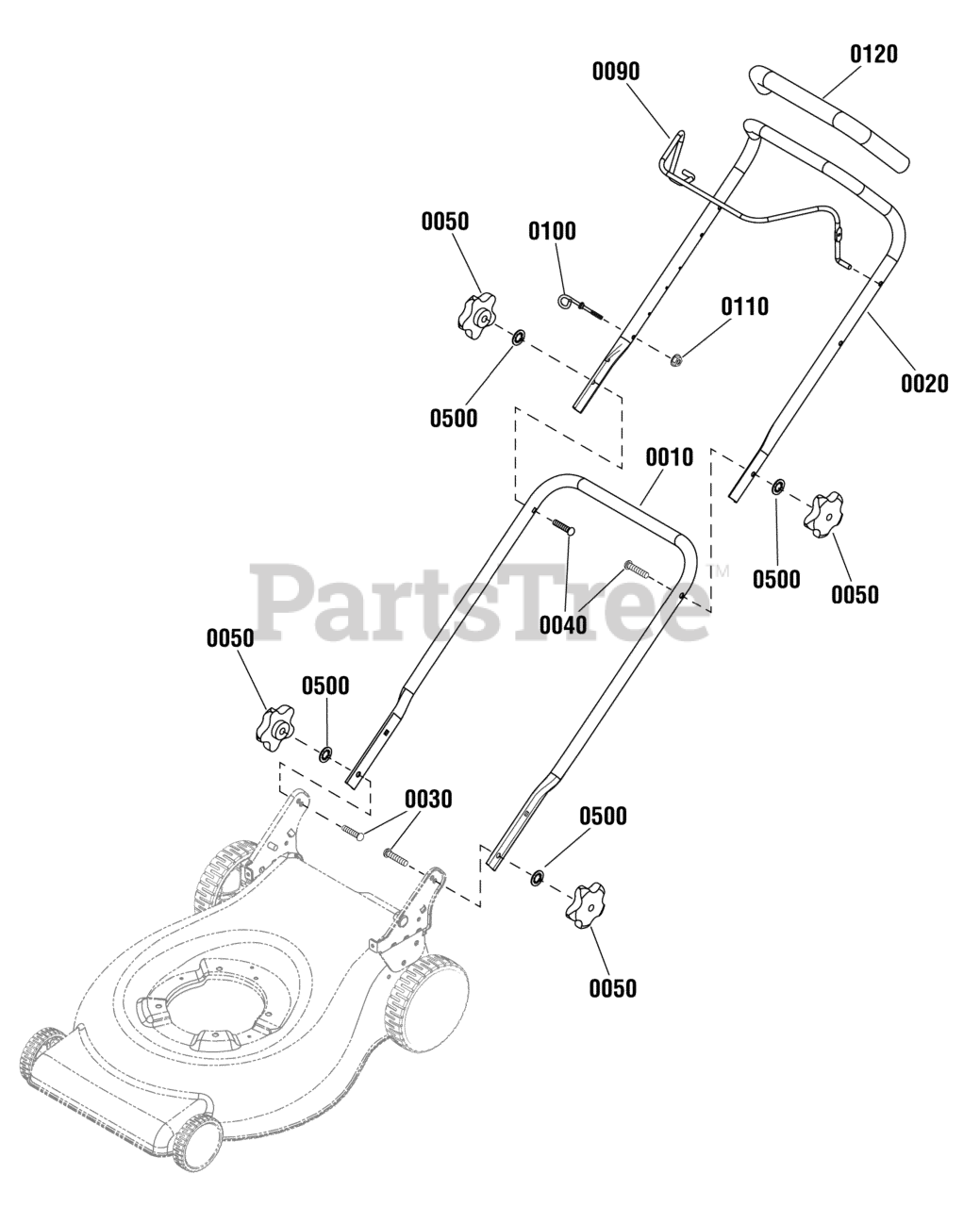

Handles Group (881305) Parts Diagram

  • Title
0010

Murray 880571AYP

HANDLE, Lower

$

$

Not available

0020

Murray 880210AYP

HANDLE, Upper

$85.99

$

Usually ships in 2-12 days

0

0030

Murray 7091714YP

BOLT, Carriage, Short Neck, 5/16-18 x 1 GR5
(Superseded to 703483)

$3.99

$

In Stock, only 1 left!

0

0040

Murray 7091189YP

BOLT, Carriage, Curved Head, 5/16-18 x 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 15

0

0050

$5.49

$

Usually ships in 2-12 days

0

0090

Murray 880476ZYP

STOP LEVER
(Superseded to 881855YP)

$52.99

$

Usually ships in 2-12 days

0

0100

Murray 7028488MA

GUIDE, Rope, 1/4-20

$6.49

$

Usually ships in 2-12 days

0

0110

Murray 880561YP

NUT, Nylock, 1/4-20

$3.99

$

Usually ships in 2-12 days

0

0120

Murray 880591YP

TUBING, Foam

$16.99

$

Usually ships in 2-12 days

0

0500

Murray 7090391SM

WASHER, Internal Lock, 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0
