MP 88 (UT-05074) - Homelite 14" Multi Purpose Saw Starter - Ignition Parts Diagram

14" Multi Purpose Saw

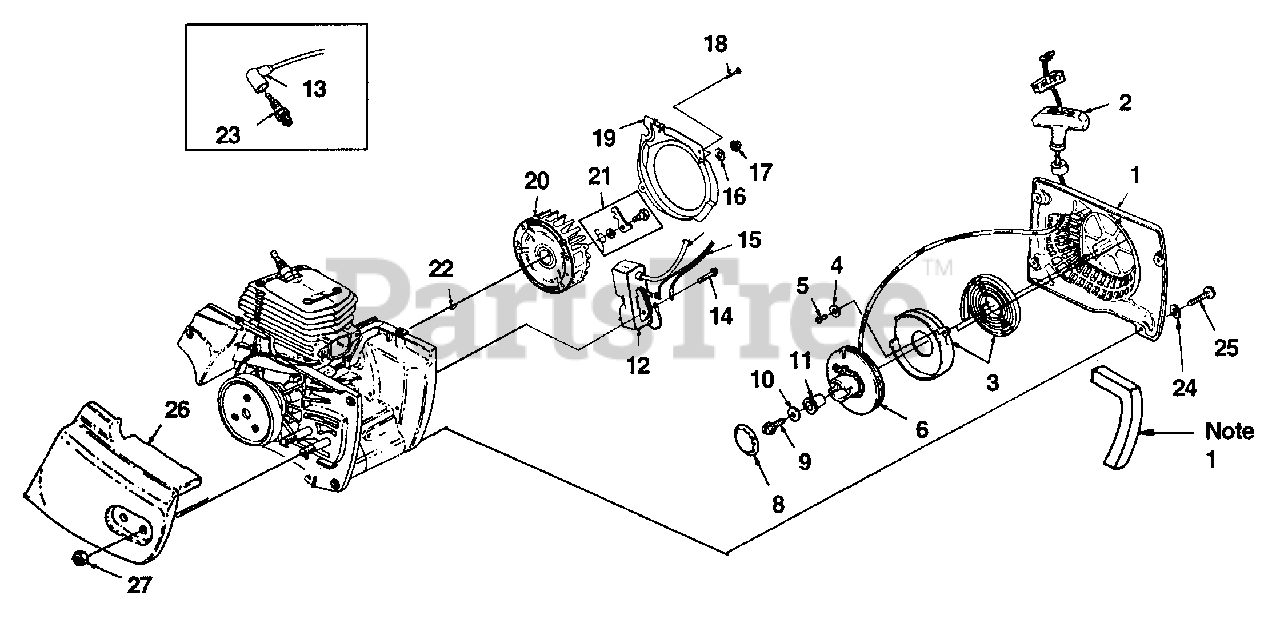

Starter - Ignition Parts Diagram

  • Title

1

Homelite A02292A

STARTER COMPLETE
(Superseded to UP07154)

$

$

Not available

2

Homelite A69962B

GRIP-w/Insert

$19.99

$

Usually ships in 3-7 days

0

3

Homelite A98067A

SPRING & RETAINER

$42.99

$

Usually ships in 3-7 days

0

4

Homelite 84025

WASHER-Flat (#8)

$

$

Not available

5

Homelite 82528

SCREW-Thread Form. (6 x 3/8")

Note: Torque Specs: 8-12 In/Lbs; .9-14 Nm

$2.49

$

Usually ships in 3-7 days

0

6

Homelite A97990C

PULLEY & ROPE
(Superseded to UP07034)

$

$

Not available

?7

Homelite A00518

ROPE
(Superseded to 93418)

$

$

Currently unavailable

8

Homelite 02505

SPRING-Grip

$

$

Not available

9

Homelite 82409

SCREW-Plastite (10-14 x 5/8")

Note: Torque Specs: 30-40 In/Lbs; 3.4-4.5 Nm

$

$

Not available

10

Homelite 58763

WASHER-Retaining

$

$

Not available

11

Homelite 97992A

BUSHING-Starter Post
(Superseded to UP07218)

$

$

Not available

12

Homelite A01827

MODULE ASSY.

$

$

Currently unavailable

13

Homelite A33055

TERMINAL-Spark Plug

$

$

Not available

14

Homelite 82562

SCREW-Hex Hd. (10-24 x 7/8")
(Superseded to UP06535)

Note: Torque Specs: 50-60 In/Lbs; 5.6-6.8 Nm; 262 Red Required Loctite

$

$

Not available

15

Homelite A985831D

LEAD-Ground w/Grommet
(Superseded to UP07036)

$

$

Not available

16

Homelite 95479A

WASHER-Flat

$

$

Not available

17

Homelite 81255

NUT-Lock Hex (3/8-24)

$

$

Not available

18

Homelite 80582

SCREW-Mach. (8-32 x 5/8")

Note: Torque Specs: 30-40 In/Lbs; 3.4-4.5 Nm

$

$

Not available

19

Homelite 02133

SCROLL-Air Guide

$

$

Not available

20

Homelite A02085B

ROTOR
(Superseded to UP05951)

$

$

Not available

21

Homelite A03610

STARTER PAWL KIT

$

$

Not available

22

Homelite 75078

KEY-Woodruff
(Superseded to UP07068)

$

$

Not available

23

Homelite 98217S

SPARK PLUG (RCJ6Y)
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

24

Homelite 84003

WASHER-Flat (#10)

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 82562

SCREW-Pan Hd. (10-24 X 5/8")
(Superseded to UP06535)

Note: Torque Specs: 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Not available

26

Homelite 478695

COVER - Drivecase

$

$

Not available

27

Homelite 810892

NUT-(3/8-16 x 5/16")

$13.99

$

Usually ships in 3-7 days

0

NOTE1

Homelite A03611A

FOAM KIT
(Superseded to UP07128)

$

$

Not available
