MP 88 (UT-05074-A) - Homelite 14" Multi Purpose Saw Clutch - Crankcase Parts Diagram

14" Multi Purpose Saw

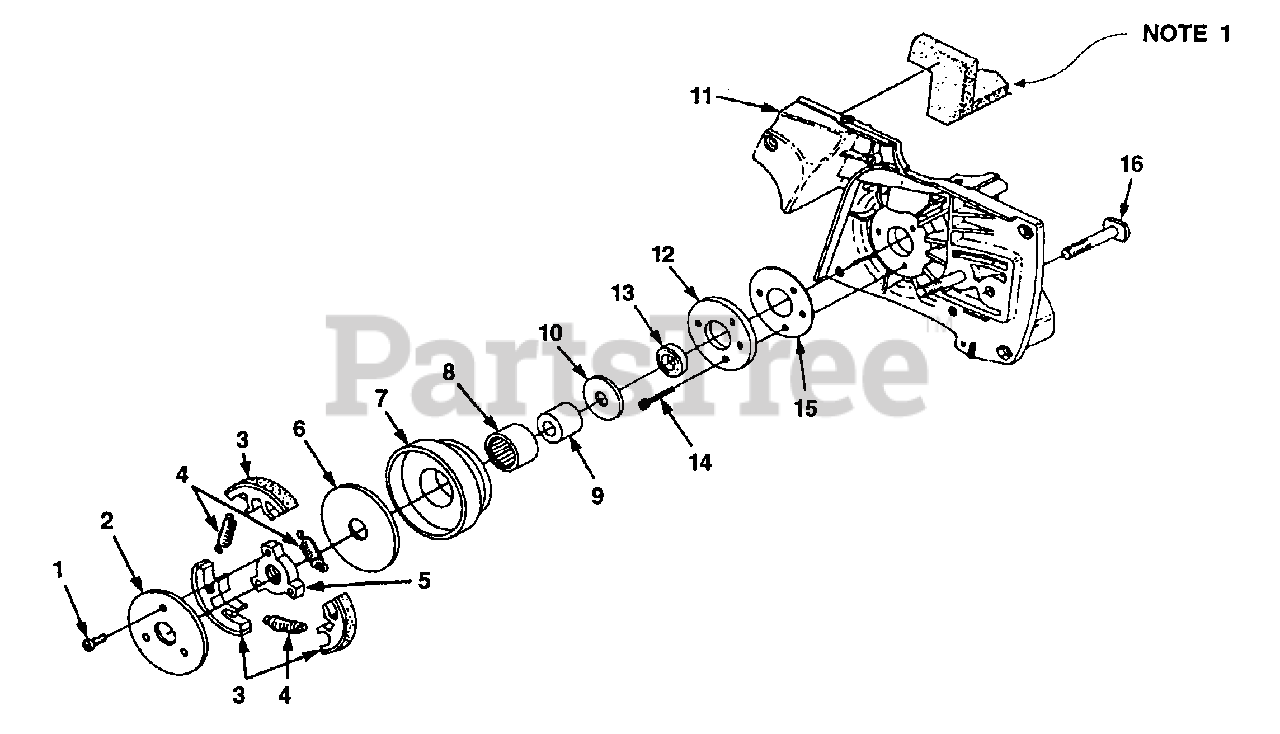

Clutch - Crankcase Parts Diagram

  • Title

1

Homelite 88041

SCREW - Hex Sems (8-32 X 3/4")

Note: Torque Specs: 30-40 In/Lbs; 3.4-4.5 Nm 262 Red Required Locktite

$

$

Not available

2

Homelite 93628

CLUTCH COVER

$

$

Not available

3

Homelite A93632B

CLUTCH SHOE
(Superseded to UP06461)

$

$

Not available

4

Homelite 93638A

CLUTCH SPRING
(Superseded to UP06462)

$

$

Not available

5

Homelite 93639

CLUTCH SPIDER
(Superseded to UP06983)

Note: Torque Specs: 400 In/Lbs; 45.2 Nm

$

$

Not available

6

Homelite 93650

WASHER - Thrust

$

$

Not available

7

Homelite A49543

PULLEY & DRUM
(Superseded to UP07077)

$

$

Not available

8

Homelite 46071

NEEDLE BEARING

$

$

Not available

9

Homelite 46070

RACE - Inner

$

$

Not available

10

Homelite 46135

WASHER - Thrust

$

$

Not available

11

Homelite A08391

CRANKCASE ASSY (COMPLETE)

$

$

Currently unavailable

12

Homelite A49537A

RETAINING - Bearing
(Superseded to UP07117)

$

$

Not available

13

Homelite 12306

SEAL

$

$

Not available

14

Homelite 82293

SCREW - Socket Cap (10-24 X 5/8")
(Superseded to UP07661)

Note: Torque Specs: 40-50 In/Lbs; 4.5-5.6 Nm 262 Red Required Locktite

$

$

Not available

15

Homelite 00191D

GASKET
(Superseded to UP07109)

$

$

Currently unavailable

16

Homelite 82595

WHEEL ARM BOLT (5-16-18 X 2.5")

$

$

Not available

Homelite 81208

NUT - Hex Lock (10-24)

Note: Not Shown

$

$

Not available

Homelite 12689A

RETAINER - Nut

Note: Not Shown

$

$

Not available

Homelite 58308B

SEAL - Shaft
(Superseded to UP07021)

Note: Not Shown

$

$

Not available

Note1

Homelite A03611A

Foam Kit
(Superseded to UP07128)

$

$

Not available
