MP 88 (UT-05073) - Homelite 12" Multi Purpose Saw Engine Housing Parts Diagram

12" Multi Purpose Saw

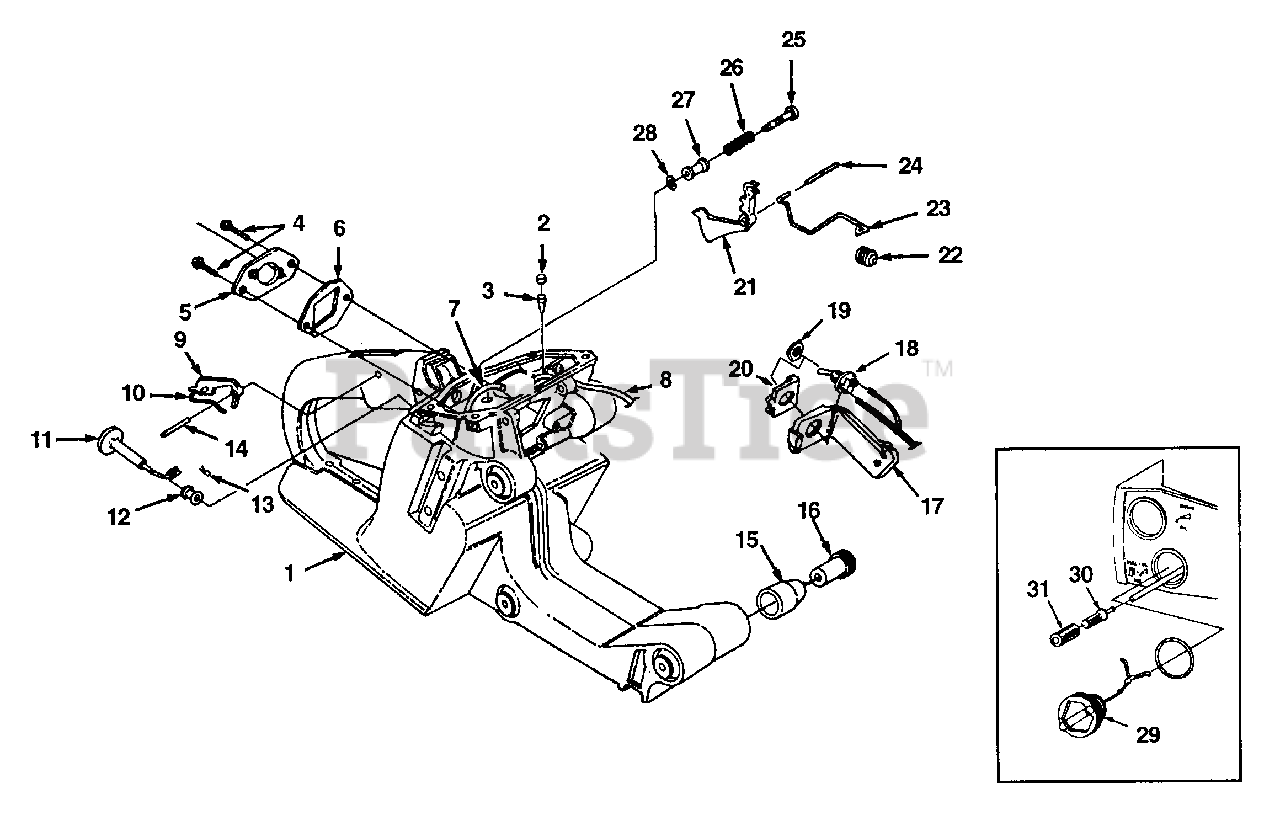

Engine Housing Parts Diagram

  • Title
1

Homelite A49770A

HOUSING-Engine

$

$

Not available

2

Homelite 93410A

TANK VENT FILTER
(Superseded to UP08023)

$

$

Currently unavailable

3

Homelite 96841

VALVE-Duck Bill
(Superseded to UP07204)

$

$

Not available

4

Homelite 96620

SCREW-Torx Truss (10-24 x 1/2")

Note: Torque Specs: 50-60 In/Lbs; 5.6-6.7 Nm; 262 Red Required Loctite

$4.99

$

Usually ships in 3-7 days

0

5

Homelite 972902A

ADAPTOR-Carburetor
(Superseded to UP07159)

$28.99

$

Usually ships in 3-7 days

0

6

Homelite PS97291

GASKET-Carburetor

$

$

Not available

7

Homelite 9311237

TUBING-Rubber (Fuel Line, 9 1/2")

$16.99

$

Usually ships in 3-7 days

0

8

Homelite 9315723

TUBING-Rubber (Pulse Line, 6 1/2")

$

$

Not available

9

Homelite 93385A

TRIGGER-Lock

$

$

Not available

10

Homelite PS97265

SPRING-Flat

$

$

Not available

11

Homelite 972921

ROD-Choke
(Superseded to UP06645)

$

$

Not available

12

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

13

Homelite 86324

PIN-Cotter

$

$

Not available

14

Homelite 68548

PIN-Trigger

$

$

Not available

15

Homelite 973052

ISOLATOR-Vibration

$

$

Not available

16

Homelite PS97262

SLEEVE-Flanged
(Superseded to UP05586)

$

$

Not available

17

Homelite PA97306A

COVER, Switch

$

$

Currently unavailable

18

Homelite A57650A

SWITCH-Toggle

$23.99

$

Usually ships in 3-7 days

0

19

Homelite 72084A1

NUT-Hex
(Superseded to UP04146)

$4.99

$

Usually ships in 3-7 days

0

20

Homelite 12793A

PLATE-Indicating
(Superseded to UP07113)

$

$

Not available

21

Homelite 93842

TRIGGER-Throttle

$

$

Not available

22

Homelite 69889

BOOT-Throttle Rod

$

$

Not available

23

Homelite 97294A

ROD-Throttle
(Superseded to UP06465)

$

$

Not available

24

Homelite 68548

PIN-Trigger

$

$

Not available

25

Homelite 95671

PIN-Throttle Lock
(Superseded to UP05997)

$2.49

$

In Stock, only 2 left!

0

26

Homelite 95020

SPRING-Compression
(Superseded to UP04716)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 95989

BUSHING-Flanged
(Superseded to UP06854)

$

$

Not available

28

Homelite 58409

RING-Retaining

$4.49

$

Usually ships in 3-7 days

0

29

Homelite A03131

FUEL CAP
(Superseded to UP05970)

$

$

Not available

30

Homelite A97700

FUEL FILTER
(Superseded to UP06516)

$

$

Not available

31

Homelite 592531A

FILTER ELEMENT

$11.99

$

Usually ships in 3-7 days

0
