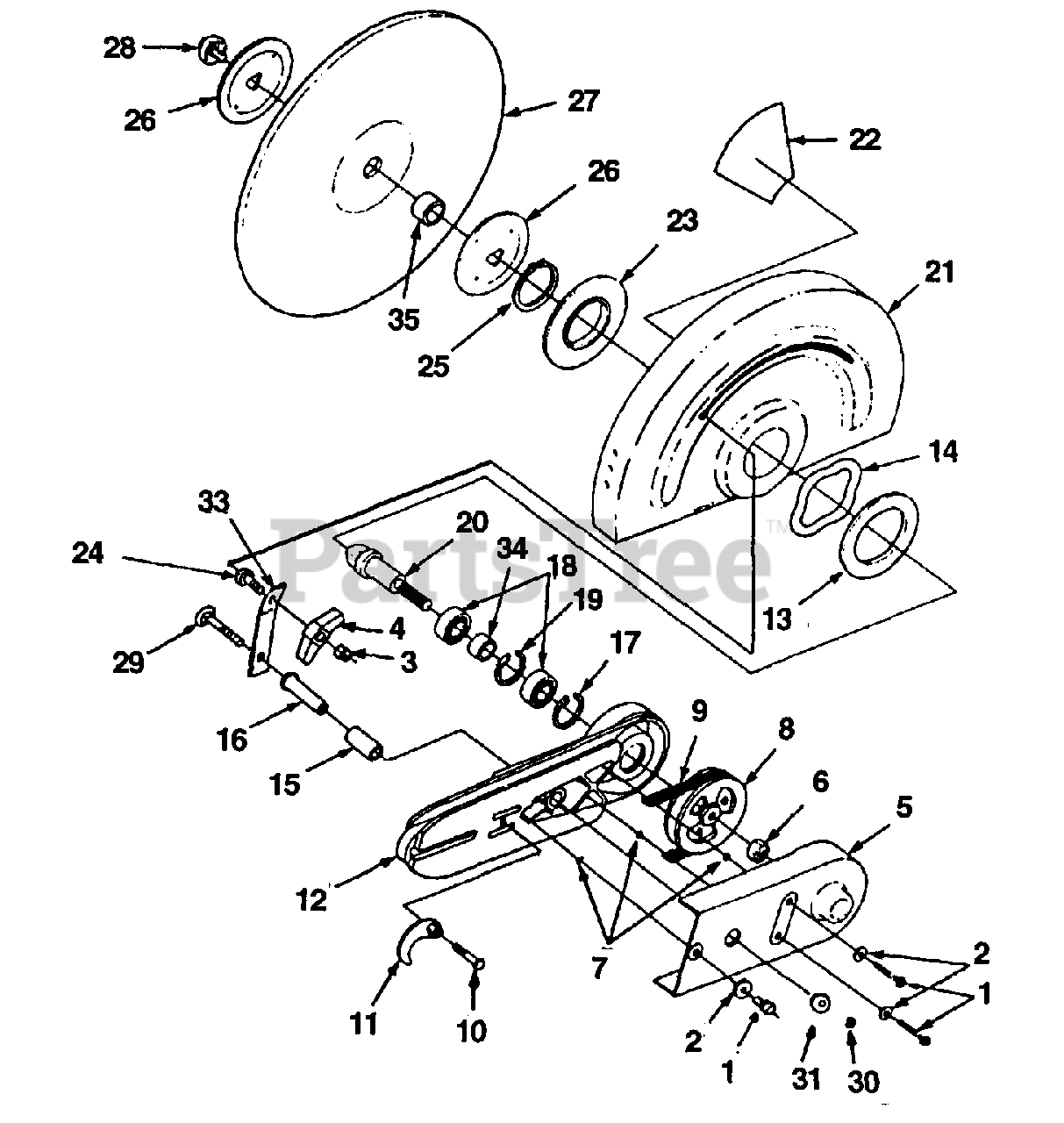

MP 88 (UT-05073-A) - Homelite 12" Multi Purpose Saw Wheel Arm Parts Diagram

12" Multi Purpose Saw

Wheel Arm Parts Diagram

  • Title

1

Homelite 94143

Screw-Slotted

Note: Torque Specs: 35 In/Lbs; 3.6 Nm

$

$

Not available

2

Homelite 84026

Washer-Flat (1/4")

$

$

Not available

3

Homelite 81162

Nut-Hex (5/16-18)

Note: Torque Specs: Hand Tight

$

$

Not available

4

Homelite GP113589

Knob-Handle
(Superseded to JA339550)

$

$

Not available

5

Homelite 43966C

Cover-Arm

$

$

Not available

6

Homelite 81245

Nut-Hex Lock (1/2-13)

$4.49

$

Usually ships in 3-7 days

0

7

Homelite 46462

"O" Ring

$

$

Not available

8

Homelite A03233

Pulley-Driven
(Superseded to UP05842)

$

$

Not available

9

Homelite 46068

Belt-"V" Drive
(Superseded to UP06392)

$

$

Not available

10

Homelite 80087

Screw-Hex Hd. (5/16-18 X 1 1/2")

Note: Torque Specs: 50 In/Lbs; 5.6 Nm

$

$

Not available

11

Homelite A49194

Cam & Adjuster
(Superseded to UP03371)

$18.99

$

Usually ships in 3-7 days

0

12

Homelite A49558

Arm-Wheel

$

$

Currently unavailable

13

Homelite 47387

Shim

$

$

Not available

14

Homelite 47388

Spring-Wave

$

$

Not available

15

Homelite 49553A

Tubing-Rubber

$

$

Not available

16

Homelite 49818

Spacer-Guard Adjusting

$

$

Not available

17

Homelite PS31746

Ring-Retaining
(Superseded to UP06391)

$

$

Not available

18

Homelite 63107

Ball Bearing

$

$

Not available

19

Homelite 47207

Retaining Ring

$

$

Not available

20

Homelite 019051

Wheel Shaft

$

$

Currently unavailable

21

Homelite A01872B

Wheel Guard (12" only)
(Superseded to A49429D)

$

$

Not available

Homelite A01873B

Wheel Guard (14" only)
(Superseded to UP07142)

$

$

Not available

22

Homelite 48922A

Caution Label

$

$

Not available

23

Homelite 46000

Washer-Mounting (12" only)

$

$

Not available

Homelite 460001

Washer-mounting (14" only)

$

$

Not available

24

Homelite 82519A

Bolt-Step (5/16-18 X 1")
(Superseded to UP06533)

$

$

Not available

25

Homelite 46065

Ring-Retaining

$

$

Not available

26

Homelite 019091A

Flange-Wheel

$

$

Not available

27

Wheel-Resinoid

Note: See "Accessories" illustration and parts list for different types of resinoid wheels.

$

$

Not available

28

Homelite A03412

Bolt & Washer
(Superseded to UP07140)

$

$

Not available

29

Homelite 49815

Bolt-Sq. Neck, Rnd. Hd.

$

$

Not available

30

Homelite 81162

Nut-Hex (5/16-18)

Note: Torque Specs: 50 In/Lbs; 5.6 Nm

$

$

Not available

31

Homelite 84027

Washer-Flat

$

$

Not available

?32

Homelite 49553A

Tubing-Rubber

$

$

Not available

33

Homelite 028391

Arm-Adjusting (12" only)

$

$

Not available

Homelite 498171

Arm-Adjusting (14" only)

$

$

Not available

34

Homelite 46067

Spacer-Bearing

$

$

Not available

35

Homelite 01902

Spacer (1" Dia.)
(Superseded to UP05608)

$

$

Not available

Homelite 01903

Spacer (22")

$

$

Not available

Homelite 01907

Spacer (20")
(Superseded to UP05609)

$

$

Not available
