MP 88 (UT-05073-A) - Homelite 12" Multi Purpose Saw Carburetor - Air Cleaner Parts Diagram

12" Multi Purpose Saw

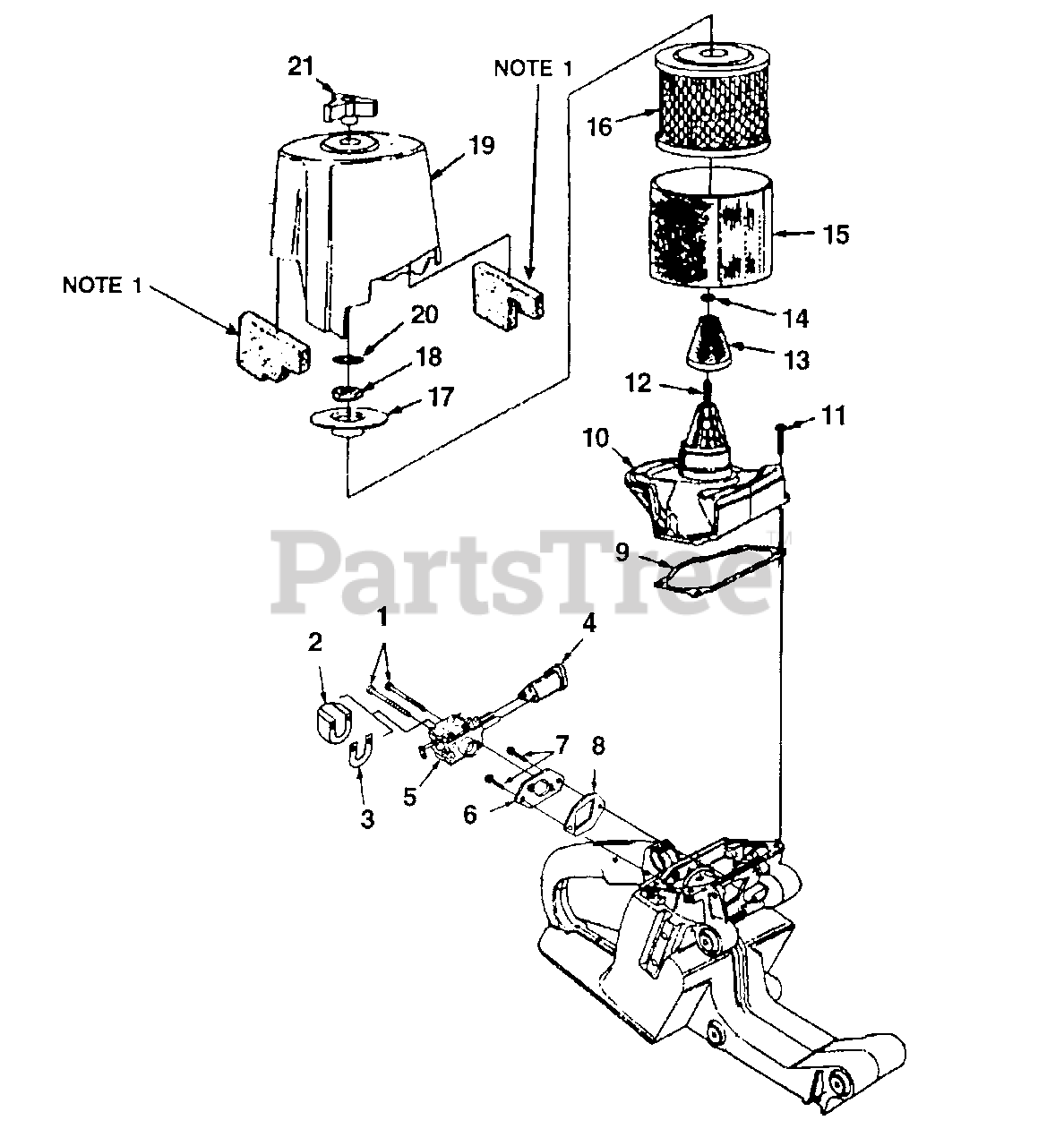

Carburetor - Air Cleaner Parts Diagram

  • Title

1

Homelite 82527

SCREW - Hex Cap (10-14 X 2")
(Superseded to 660622001)

Note: Torque Specs 40-50 In/Lbs, 4.5-5.6 Nm; 262 Red Required Locktite

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 496732

SHIELD - Carburetor

$

$

Not available

3

Homelite 49671

GASKET - Carburetor Shield

$

$

Not available

4

Homelite PS00100

GROMMET
(Superseded to UP05760)

$

$

Not available

5

Homelite PA00037

CARBURETOR
(Superseded to UP05733)

$

$

Not available

6

Homelite 972902A

ADAPTER - Carburetor
(Superseded to UP07159)

$28.99

$

Usually ships in 3-7 days

0

7

Homelite 96620

SCREW - Torx Truss (10-24 X 1/2")

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm; 262 Red Required Locktite

$4.99

$

Usually ships in 3-7 days

0

8

Homelite PS97291

GASKET - Carburetor

$

$

Not available

9

Homelite PS97298

GASKET - Carb Chamber
(Superseded to UP06467)

$

$

Not available

10

Homelite 49509A

COVER - Carb Chamber
(Superseded to UP06405)

$30.99

$

Usually ships in 3-7 days

0

11

Homelite 80582

SCREW - Pan Hd (8-32 X 5/8")

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm; 242 Blue Required Locktite

$

$

Not available

12

Homelite 49511A

BOLT
(Superseded to UP06407)

$

$

Not available

13

Homelite 49555

FILTER - Air

$21.99

$

Usually ships in 3-7 days

0

14

Homelite 94150

"O" Ring

$

$

Not available

15

Homelite 49513

FELT PREFILTER

$

$

Not available

16

Homelite 49512

ELEMENT - Air Filter

$

$

Not available

17

Homelite 498981

AIR FILTER ELEMENT COVER

$

$

Not available

18

Homelite 81162

NUT Hex (5/16-18)

$

$

Not available

19

Homelite A49514A

FILTER COVER
(Superseded to UP07059)

$

$

Not available

20

Homelite 06365

KNOB

$

$

Not available

21

Homelite 46072

RETAINING RING

$

$

Not available

Note1

Homelite A03611A

Foam Kit
(Superseded to UP07128)

$

$

Not available
