MP 88 (UT-05051-B) - Homelite Multi Purpose Saw Carburetor - Air Cleaner Parts Diagram

Multi Purpose Saw

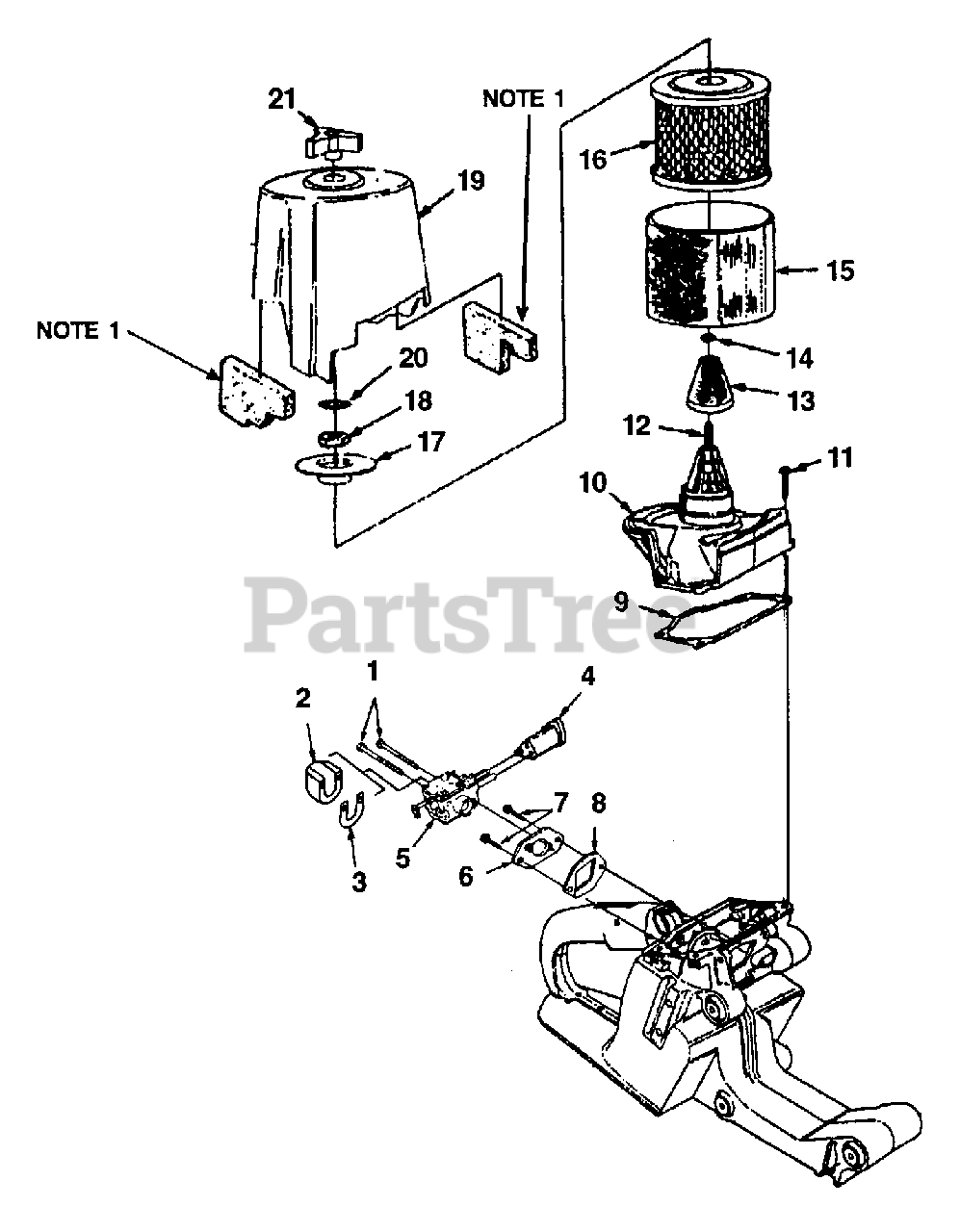

Carburetor - Air Cleaner Parts Diagram

  • Title

1

Homelite 82527

SCREW-Hex Cap (10-14 x 2")
(Superseded to 660622001)

Note: Torque Specs: 40-50 In/Lbs; 4.5-5.6 Nm; 262 Red Required Loctite

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 496732

SHIELD-Carburetor

$

$

Not available

3

Homelite 49671

GASKET-Carburetor Shield

$

$

Not available

4

Homelite PS97295

GROMMET

$

$

Currently unavailable

5

Homelite A49510A

CARBURETOR
(Superseded to UP06406)

$

$

Not available

6

Homelite A972902A

ADAPTER-Carburetor

$

$

Currently unavailable

7

Homelite 96620

SCREW-Torx Truss (10-24 x 1/2")

Note: Torque Specs: 30-40 In/Lbs; 3.4-4.5 Nm; 262 Red Required Loctite

$4.99

$

Usually ships in 3-7 days

0

8

Homelite PS97291

GASKET-Carburetor

$

$

Not available

9

Homelite PS97298

GASKET-Carb. Chamber
(Superseded to UP06467)

$

$

Not available

10

Homelite 49509A

COVER-Carb. Chamber
(Superseded to UP06405)

$30.99

$

Usually ships in 3-7 days

0

11

Homelite 80582

SCREW-Pan Hd. (8-32 x 5/8")

Note: Torque Specs: 30-40 In/Lbs; 3.4-4.5 Nm; 262 Red Required Loctite

$

$

Not available

12

Homelite 49511A

BOLT
(Superseded to UP06407)

$

$

Not available

13

Homelite 49555

FILTER-Air

$21.99

$

Usually ships in 3-7 days

0

14

Homelite 94150

"O" Ring

$

$

Not available

15

Homelite 49513

FELT PREFILTER

$

$

Not available

16

Homelite 49512

ELEMENT-Air Filter

$

$

Not available

17

Homelite 498981

AIR FILTER ELEMENT COVER

$

$

Not available

18

Homelite 81162

NUT-Hex (5/16-18)

$

$

Not available

19

Homelite A49514A

FILTER COVER
(Superseded to UP07059)

$

$

Not available

20

Homelite 06365

KNOB

$

$

Not available

21

Homelite 46072

RETAINING RING

$

$

Not available

NOTE1

Homelite A03611A

FOAM KIT
(Superseded to UP07128)

$

$

Not available
