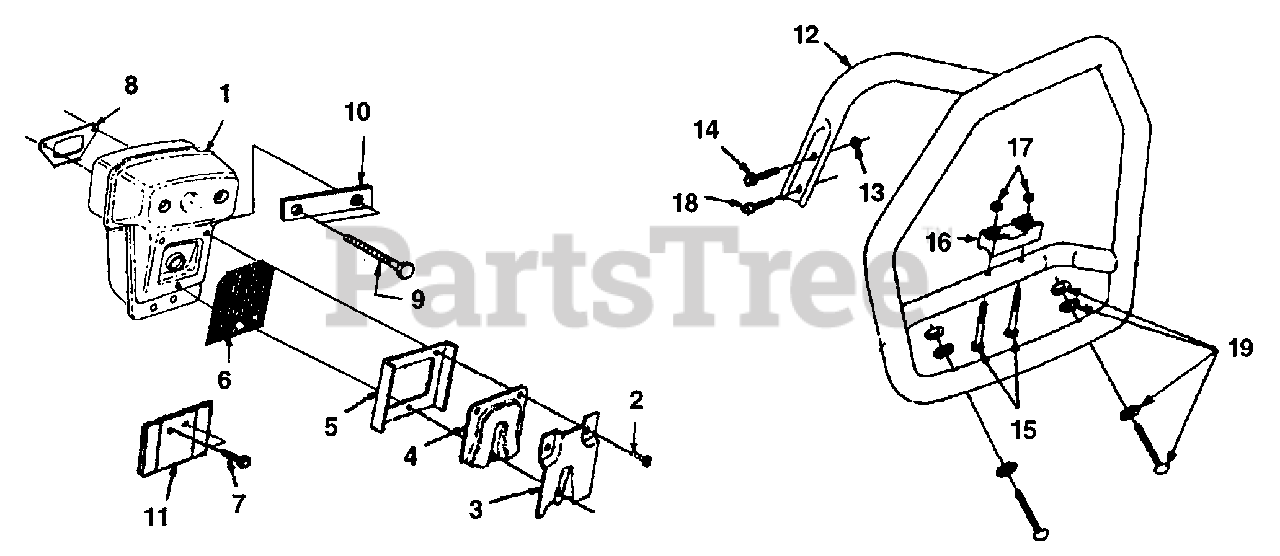

MP 88 (UT-05051-A) - Homelite Multi Purpose Saw Muffler - Handlebar Parts Diagram

Multi Purpose Saw

Muffler - Handlebar Parts Diagram

  • Title

1

Homelite A04430

MUFFLER ASSY.

$

$

Not available

2

Homelite 80983

SCREW-Mach. Hex (8-32 x 1/2")
(Superseded to 80560)

Note: Torque Specs: 25-30 In/Lbs; 2.8-3.4 Nm

$

$

Not available

3

Homelite A49545

SHIELD-Muffler
(Superseded to UP06592)

$

$

Not available

4

Homelite 49525

CAP-Muffler

$

$

Not available

5

Homelite 49548

SUPPORT-Spark Arrestor

$

$

Not available

6

Homelite 98827

SCREEN-Spark Arrestor
(Superseded to UP07104)

$17.99

$

Usually ships in 3-7 days

0

7

Homelite 825551

SCREW-Truss Hd. (10-24 X 3/4")
(Superseded to UP03899)

$2.99

$

Usually ships in 3-7 days

0

8

Homelite 97682B

GASKET-Muffler
(Superseded to UP07030)

$

$

Not available

9

Homelite 82592

SCREW-Cap Hex Hd. (1/4-20 X 3 1/4")

Note: Torque Specs: 100-140 In/Lbs; 11.3-15.8 Nm

$

$

Not available

10

Homelite 04423

SHIELD-Muffler Cover

$

$

Not available

11

Homelite 04431A

PLATE-Retaining
(Superseded to UP07768)

$

$

Not available

12

Homelite A495951

HANDLE BAR
(Superseded to UP07018)

$

$

Not available

13

Homelite 81208

NUT-Hex Lock (10-24)

$

$

Not available

14

Homelite 825551

SCREW-Truss Hd. (10-24 X 3/4")
(Superseded to UP03899)

Note: Torque Specs: 60-70 In/Lbs; 6.7-7.9 Nm

$2.99

$

Usually ships in 3-7 days

0

15

Homelite 96212

NUT-Locking (1/4-28")

$

$

Not available

16

Homelite 496222

BRACKET-Handle Bar

$

$

Not available

17

Homelite 82532

SCREW-Mach. Oval Hd. (1/4-20 X 1/2")

Note: Torque Specs: 120-140 In/Lbs; 13.5-15.8 Nm; 262 Red Required Loctite

$

$

Not available

18

Homelite 96620

SCREW-Truss Torx (T25)

Note: Torque Specs: 60-70 In/Lbs; 6.7-7.9 Nm; 262 Red Required Loctite

$4.99

$

Usually ships in 3-7 days

0

19

Homelite A03633

WEAR PAD KIT
(Superseded to UP07634)

$

$

Not available
