MP 625 MD 21 (866081-00) - Murray 625EX Series 21"Walk-Behind Mower (2015) Deck & Engine Group (866081) Parts Diagram

625EX Series 21"Walk-Behind Mower

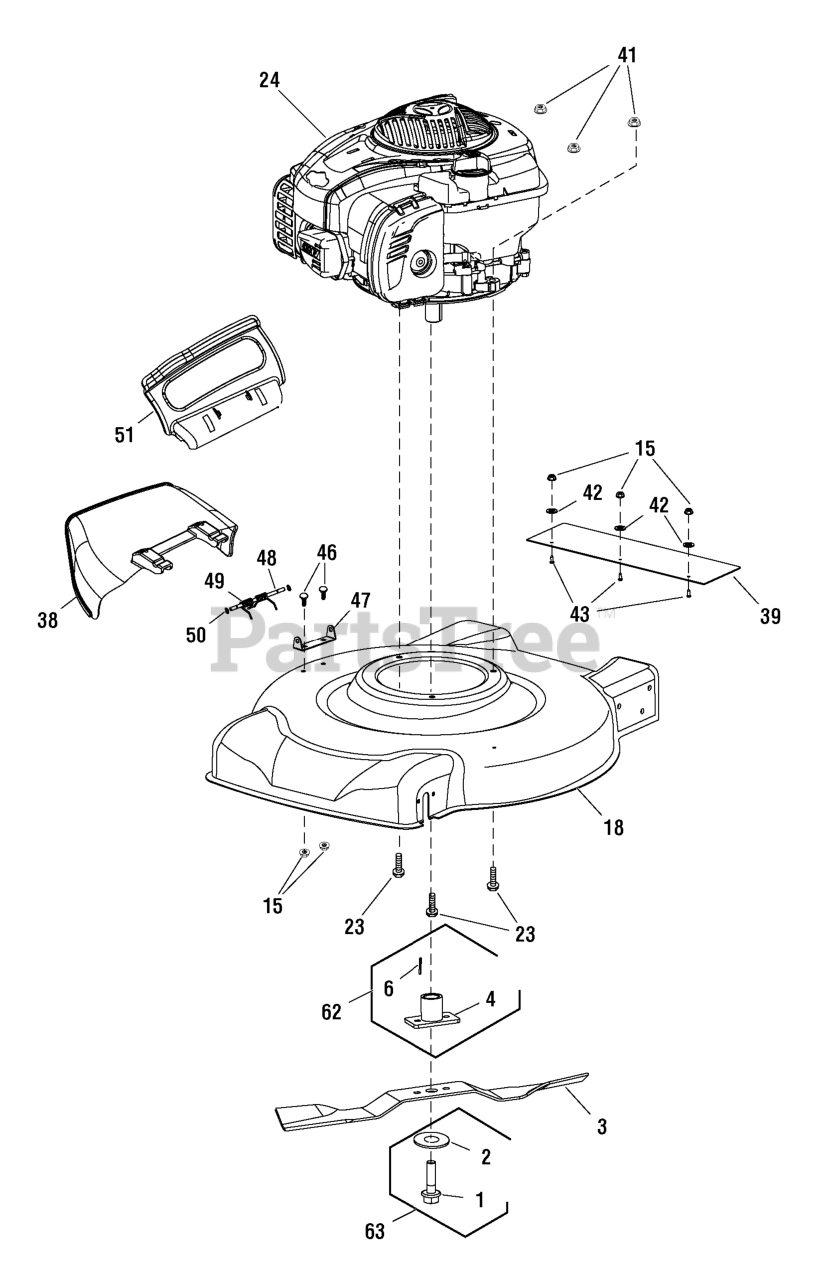

Deck & Engine Group (866081) Parts Diagram

  • Title

1

Murray 707334

BOLT, Blade, 3/8-24UNF

$3.99

$

Usually ships in 2-12 days

0

2

Murray 707333

WASHER, Flat

$4.99

$

Usually ships in 2-12 days

0

3

Murray 707184

BLADE

$

$

Currently unavailable

4

Murray 707331

ADAPTER, Blade

$18.99

$

Usually ships in 2-12 days

0

6

Murray 707187

KEY

$3.99

$

Usually ships in 2-12 days

0

15

Murray 707196

NUT, M6

$3.49

$

Usually ships in 2-12 days

0

18

Murray 707614

DECK

$

$

Currently unavailable

23

Murray 707609

BOLT, Flange, M8 x 35

$3.99

$

Usually ships in 2-12 days

0

24

Murray 093J02-0059-H1

* ENGINE

$

$

Currently unavailable

38

Murray 707237

CHUTE, Side Discharge

$

$

Currently unavailable

39

Murray 707219

COVER

$

$

Currently unavailable

41

Murray 707206

NUT, M8

$

$

Currently unavailable

42

Murray 707220

WASHER, 6.4 x 20 x 2

$

$

Currently unavailable

43

Murray 707221

SCREW, M6 x 16

$

$

Currently unavailable

46

Murray 707776

BOLT, M6 x 16

$

$

Currently unavailable

47

Murray 707232

BRACKET, Discharge Chute

$

$

Currently unavailable

48

Murray 707236

ROD

$

$

Currently unavailable

49

Murray 707235

SPRING, Discharge chute

$

$

Currently unavailable

50

Murray 707777

CIRCLIP

$

$

Currently unavailable

51

Murray 707234

COVER, Mulching

$

$

Currently unavailable

62

Murray 707421

KIT, Blade Adapter

Note: (Includes Ref. Nos. 5 & 6)

$16.99

$

Usually ships in 2-12 days

0

63

Murray 707420

KIT, Hardware, Blade Bolt

Note: (Includes Ref. Nos. 1 & 2)

$4.49

$

Usually ships in 2-12 days

0
