MP 550 RMD 21 (866085-00) - Murray 550EX Series 21" Walk-Behind Mower (2015) Deck & Engine Group (866085) Parts Diagram

550EX Series 21" Walk-Behind Mower

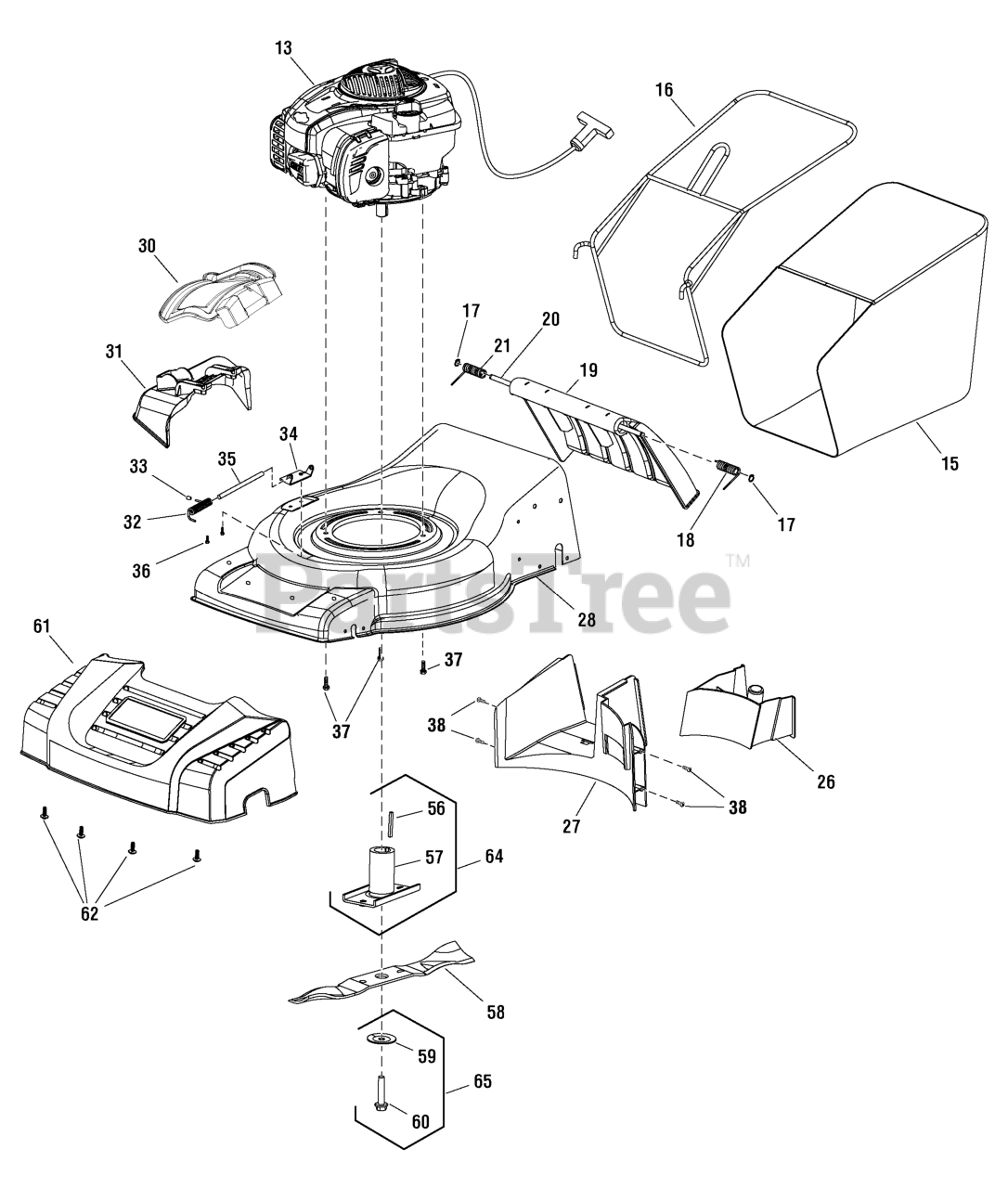

Deck & Engine Group (866085) Parts Diagram

  • Title

13

Murray 09P702-0189-H1

* ENGINE, Briggs & Stratton 550EX Series

$

$

Currently unavailable

15

Murray 707266

BAG, Grass

$

$

Currently unavailable

16

Murray 707267

FRAME, Grass Bag

$

$

Currently unavailable

17

Murray 707233

CIRCLIP

$2.99

$

Usually ships in 2-12 days

0

18

Murray 707268

SPRING, Left

$3.49

$

Usually ships in 2-12 days

0

19

Murray 707269

REAR FLAP

$35.99

$

Usually ships in 2-12 days

0

20

Murray 707270

ROD

$5.49

$

Usually ships in 2-12 days

0

21

Murray 707271

SPRING, Right

$3.49

$

Usually ships in 2-12 days

0

26

Murray 707275

MULCH PLUG

$

$

Currently unavailable

27

Murray 707276

BAFFLE, Rear

$

$

Currently unavailable

28

Murray 707310

DECK

$

$

Currently unavailable

30

Murray 707311

COVER, Mulching

$15.99

$

Usually ships in 2-12 days

0

31

Murray 707312

CHUTE, Side Discharge

$37.99

$

Usually ships in 2-12 days

0

32

Murray 707313

SPRING, Torsion

$4.49

$

Usually ships in 2-12 days

0

33

Murray 707314

CAP, Spring

$3.49

$

Usually ships in 2-12 days

0

34

Murray 707315

BRACKET, Deflector

$3.99

$

Usually ships in 2-12 days

0

35

Murray 707316

ROD

$3.99

$

In Stock, only 1 left!

0

36

Murray 707317

BOLT, M6 x 10

$2.99

$

Usually ships in 2-12 days

0

37

Murray 707204

BOLT, Self Tapping

$3.99

$

Usually ships in 2-12 days

0

38

Murray 707374

SCREW, With Washer, ST4.8 x 13

$2.99

$

Usually ships in 2-12 days

0

56

Murray 707292

KEY

$

$

Currently unavailable

57

Murray 707293

ADAPTER, Blade

$20.99

$

Usually ships in 2-12 days

0

58

Murray 707294

BLADE

$23.99

$

Usually ships in 2-12 days

0

59

Murray 707579

WASHER, Cone

$4.49

$

Usually ships in 2-12 days

0

60

Murray 707736

BOLT, Blade, 3/8-24 UNF

$3.99

$

Usually ships in 2-12 days

0

61

Murray 707318

FRONT COVER

$54.99

$

Usually ships in 2-12 days

0

62

Murray 707375

SCREW, With Washer, ST4.8 x 13

$2.99

$

Usually ships in 2-12 days

0

64

Murray 707425

KIT, Blade Adapter

Note: (Includes Ref. Nos. 56 & 57)

$

$

Currently unavailable

65

Murray 707424

KIT, Hardware, Blade Bolt

Note: (Includes Ref. Nos. 59 & 60)

$

$

Currently unavailable
