MP 550 RM 21 (866083-00) - Murray 550EX Series 21" Walk-Behind Mower (2015) Deck & Engine Group (866083) Parts Diagram

550EX Series 21" Walk-Behind Mower

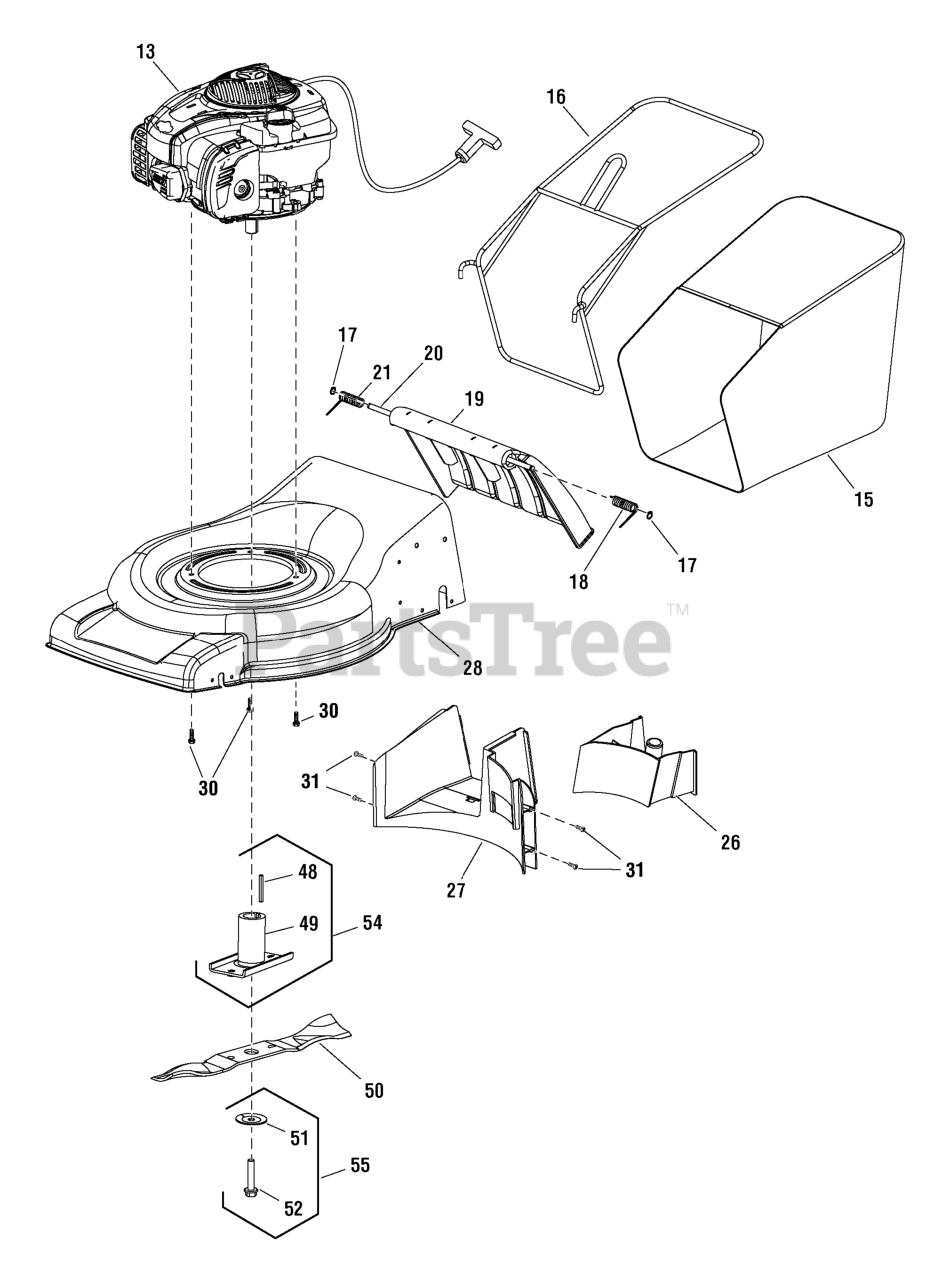

Deck & Engine Group (866083) Parts Diagram

  • Title

13

Murray 09P702-0189-H1

* ENGINE, Briggs & Stratton 550EX Series

$

$

Currently unavailable

15

Murray 707266

BAG, Grass

$

$

Currently unavailable

16

Murray 707267

FRAME, Grass Bag

$

$

Currently unavailable

17

Murray 707233

CIRCLIP

$2.99

$

Usually ships in 2-12 days

0

18

Murray 707268

SPRING, Left

$3.49

$

Usually ships in 2-12 days

0

19

Murray 707269

REAR FLAP

$35.99

$

Usually ships in 2-12 days

0

20

Murray 707270

ROD

$5.49

$

Usually ships in 2-12 days

0

21

Murray 707271

SPRING, Right

$3.49

$

Usually ships in 2-12 days

0

26

Murray 707275

MULCH PLUG

$

$

Currently unavailable

27

Murray 707276

BAFFLE, Rear

$

$

Currently unavailable

28

Murray 707277

DECK

$

$

Currently unavailable

30

Murray 707204

BOLT, Self Tapping

$3.99

$

Usually ships in 2-12 days

0

31

Murray 707374

SCREW, With Washer, ST4.8 x 13

$2.99

$

Usually ships in 2-12 days

0

48

Murray 707292

KEY

$

$

Currently unavailable

49

Murray 707293

ADAPTER, Blade

$20.99

$

Usually ships in 2-12 days

0

50

Murray 707294

BLADE

$23.99

$

Usually ships in 2-12 days

0

51

Murray 707579

WASHER, Cone

$4.49

$

Usually ships in 2-12 days

0

52

Murray 707736

BOLT, Blade, 3/8-24 UNF

$3.99

$

Usually ships in 2-12 days

0

54

Murray 707425

KIT, Blade Adapter

Note: (Includes Ref. Nos. 48 & 49)

$

$

Currently unavailable

55

Murray 707424

KIT, Hardware, Blade Bolt

Note: (Includes Ref. Nos. 51 & 52)

$

$

Currently unavailable
