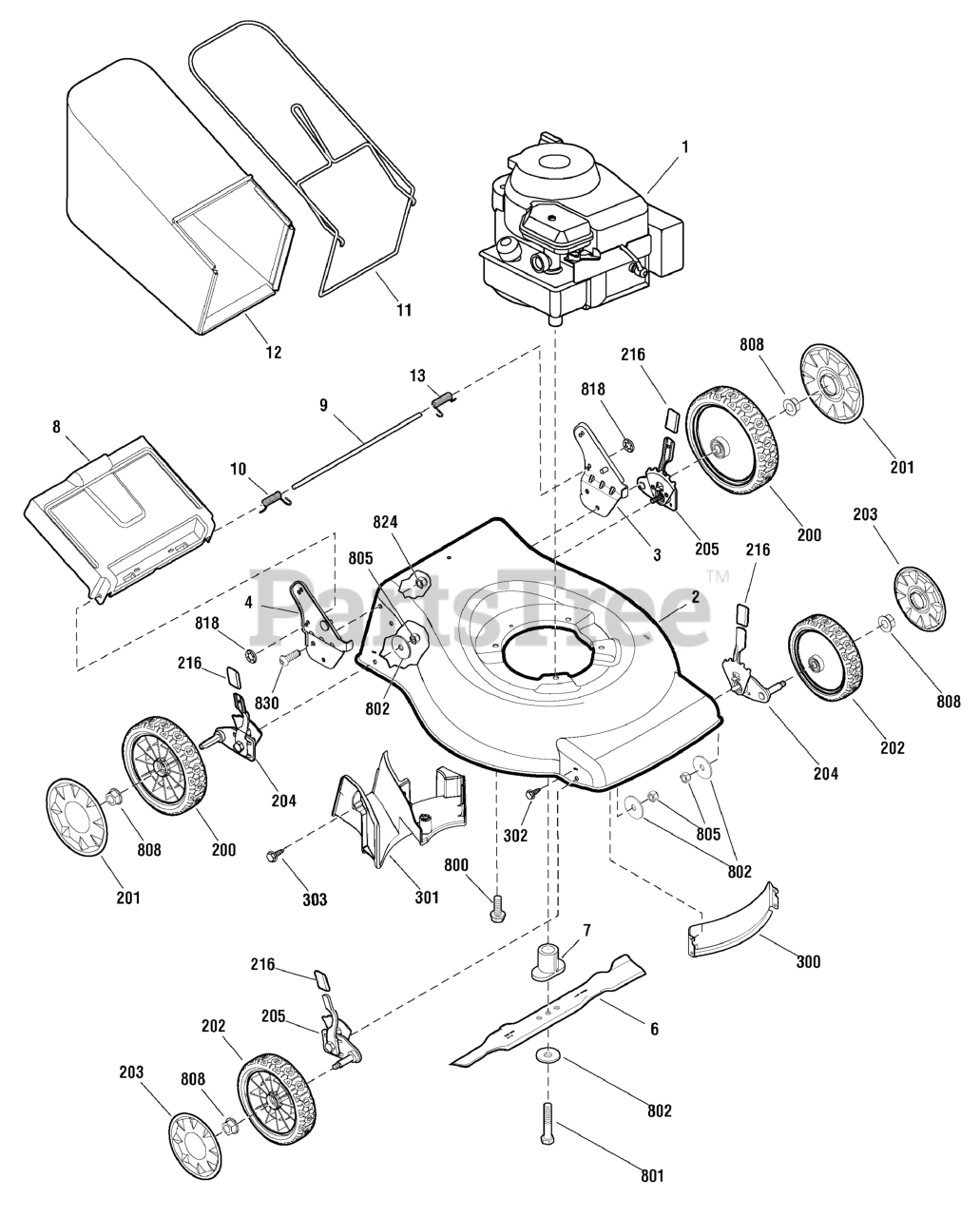

MP 550 (881241) - Murray 16" Walk-Behind Mower, Canada (2011) Deck & Engine Group (881241) Parts Diagram

16" Walk-Behind Mower, Canada

Deck & Engine Group (881241) Parts Diagram

  • Title

1

Murray 10T802-0161-B1

* ENGINE, 5.5GT Briggs & Stratton

Note: (Engine Model: 10T802-0161-B1)

$

$

Not available

2

MOWER HOUSING

Note: (Includes Ref. Nos. 300 & 302)

$

$

Not available

3

Murray 880951AYP

BRACKET ASSEMBLY, Left Handle

$20.99

$

Usually ships in 2-12 days

0

4

Murray 880950AYP

BRACKET ASSEMBLY, Right Handle

$20.99

$

Usually ships in 2-12 days

0

6

Murray 881076YP

BLADE, 16 in
(Superseded to 881076BZYP)

$24.99

$

Usually ships in 2-12 days

0

7

Murray 880009YP

BLADE ADAPTER ASSEMBLY

$18.99

$

Usually ships in 2-12 days

0

8

Murray 880661YP

DOOR, Rear

$30.99

$

Usually ships in 2-12 days

0

9

Murray 880213YP

ROD, Rear Door

$4.49

$

Usually ships in 2-12 days

0

10

Murray 880942YP

SPRING, Torsion Rear Door, Right

$4.49

$

Usually ships in 2-12 days

0

11

Murray 880944ZYP

FRAME ASSEMBLY

$77.99

$

Usually ships in 2-12 days

0

12

Murray 880947YP

BAG ASSEMBLY

$67.99

$

Usually ships in 2-12 days

0

13

Murray 880943YP

SPRING, Torsion Rear Door, Left

$4.49

$

Usually ships in 2-12 days

0

200

Murray 880703YP

WHEEL, Rear

$36.99

$

Usually ships in 2-12 days

0

201

Murray 880698YP

HUBCAP, Rear

$9.49

$

Usually ships in 2-12 days

0

202

Murray 880702YP

WHEEL, Front

$27.99

$

Usually ships in 2-12 days

0

203

Murray 880697YP

HUBCAP, Front

$7.99

$

Usually ships in 2-12 days

0

204

Murray 880106YP

HEIGHT ADJUSTER ASSEMBLY, Left

$23.99

$

Usually ships in 2-12 days

0

205

Murray 880115YP

HEIGHT ADJUSTER ASSEMBLY, Right

$23.99

$

Usually ships in 2-12 days

0

216

Murray 880542YP

GRIP, Height Adjustment

$4.49

$

Usually ships in 2-12 days

0

300

Murray 880794BIYP

BAFFLE, Front, 16

$32.99

$

Usually ships in 2-12 days

0

301

Murray 880793YP

BAFFLE, Rear, 16

$41.99

$

Usually ships in 2-12 days

0

302

Murray 880664YP

SCREW, Pan Head, Taptite, 1/4-20 x 1/2

$3.99

$

Usually ships in 2-12 days

0

303

Murray 880804YP

SCREW, Pan Head, Taptite, 1/4-15 x 5/8

$3.99

$

Usually ships in 2-12 days

0

800

Murray 0025X6MA

CAPSCREW, Hex Head, 3/8-16 x 1

$5.49

$

Usually ships in 2-12 days

0

801

Murray 880034YP

BOLT, Blade, 3/8-24 x 2

$4.49

$

Usually ships in 2-12 days

0

802

Murray 1101989MA

WASHER, Belleville

$5.49

$

Usually ships in 2-12 days

0

805

Murray 880020YP

NUT, Nylock, M8 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

808

Murray 015X84MA

NUT, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

818

Murray 7091020YP

PUSHNUT, 1/4
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

824

Murray 015X88MA

NUT, Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

830

Murray 48901MA

CAPSCREW, 5/16-18 x 3/4

$3.99

$

Usually ships in 2-12 days

0

1000

Murray 881410YP

DECAL KIT

$19.99

$

Usually ships in 2-12 days

0
