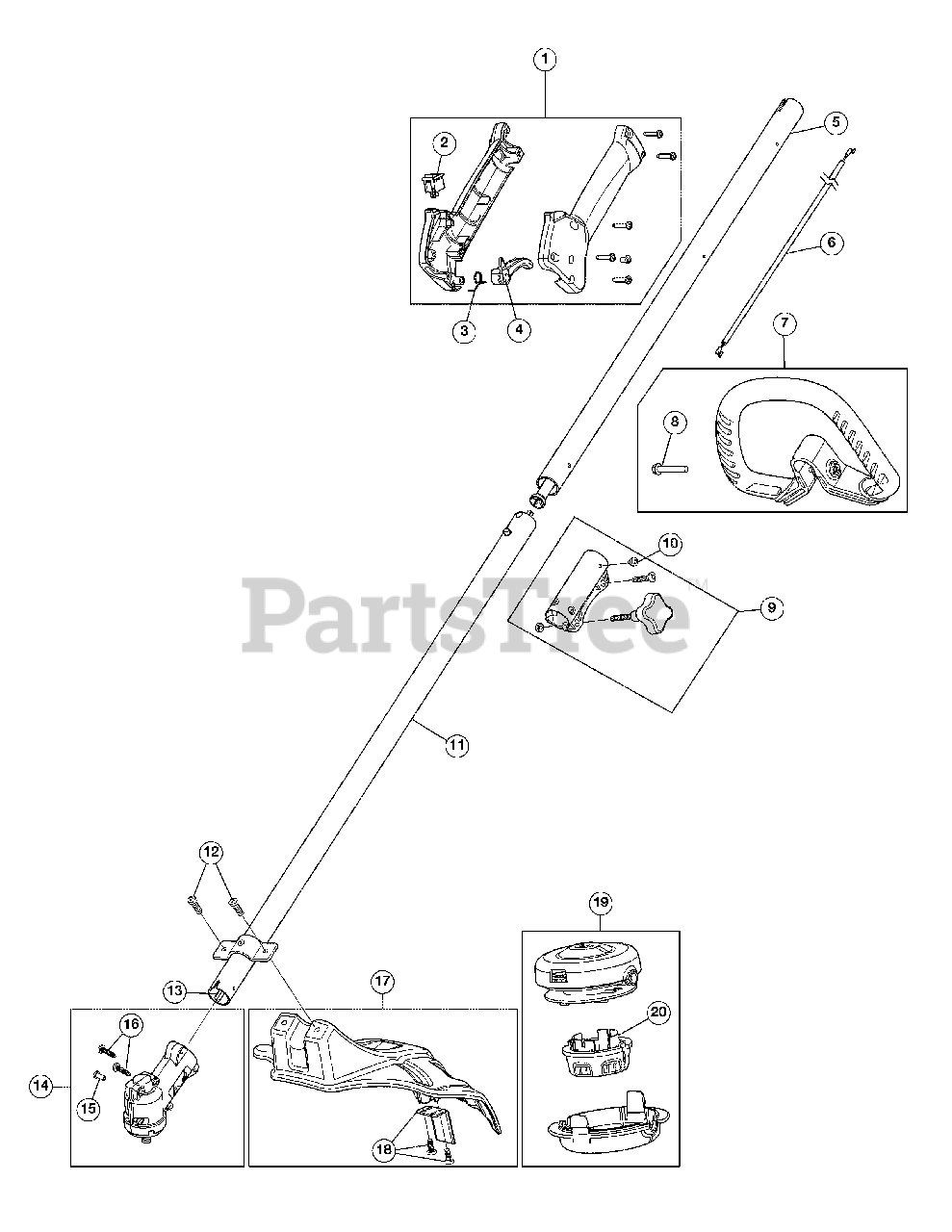

MP 479 (41BD479C995) - MTD Pro String Trimmer General Assembly Parts Diagram

Pro String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-06917

Throttle Housing Assembly (Incl. 2 - 4)

$5.99

$

In Stock, only 4 left!

0

2

MTD 791-182405

Tigger Switch Assembly

$10.99

$

In Stock, Qty 12

0

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

MTD 753-06918

Throttle Trigger

$3.49

$

In Stock, Qty 5

0

5

MTD 753-06682

Upper Drive Shaft Housing Assembly

$18.99

$

In Stock, only 3 left!

0

6

MTD 753-05266

Throttle Cable Assembly

$20.99

$

In Stock, Qty 12

0

7

MTD 753-06039

D-Handle Assembly (Incl. 8)

$11.99

$

Usually ships in 3-6 days

0

8

MTD 753-06040

Bolt

$6.99

$

In Stock, only 1 left!

0

9

MTD 753-06585

Split Boom Coupler (Incl. 10)

$9.49

$

In Stock, only 4 left!

0

10

MTD 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, only 3 left!

0

11

MTD 753-06139

Lower Drive Shaft Housing Assembly

$20.99

$

In Stock, Qty 20+

0

12

MTD 753-06125

Shield Mounting Screws

$6.99

$

In Stock, only 4 left!

0

13

MTD 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

14

MTD 753-08180

Gear Box Assembly (Incl. 15 and 16)

$45.99

$

In Stock, only 3 left!

0

15

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

16

MTD 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

17

MTD 753-08177

Shield Assembly (Incl. 18)

$12.99

$

In Stock, only 2 left!

0

18

MTD 753-08178

Blade Assembly

$2.99

$

In Stock, Qty 5

0

19

MTD 753-08185

Cutting Head Assembly (Incl. 20)

$21.99

$

In Stock, Qty 8

0

20

MTD 753-08152

Bump Knob
(Superseded to 753-08157)

$5.49

$

In Stock, Qty 9

0
