MP 475 (41CD475C995) - MTD Pro String Trimmer General Assembly Parts Diagram

Pro String Trimmer

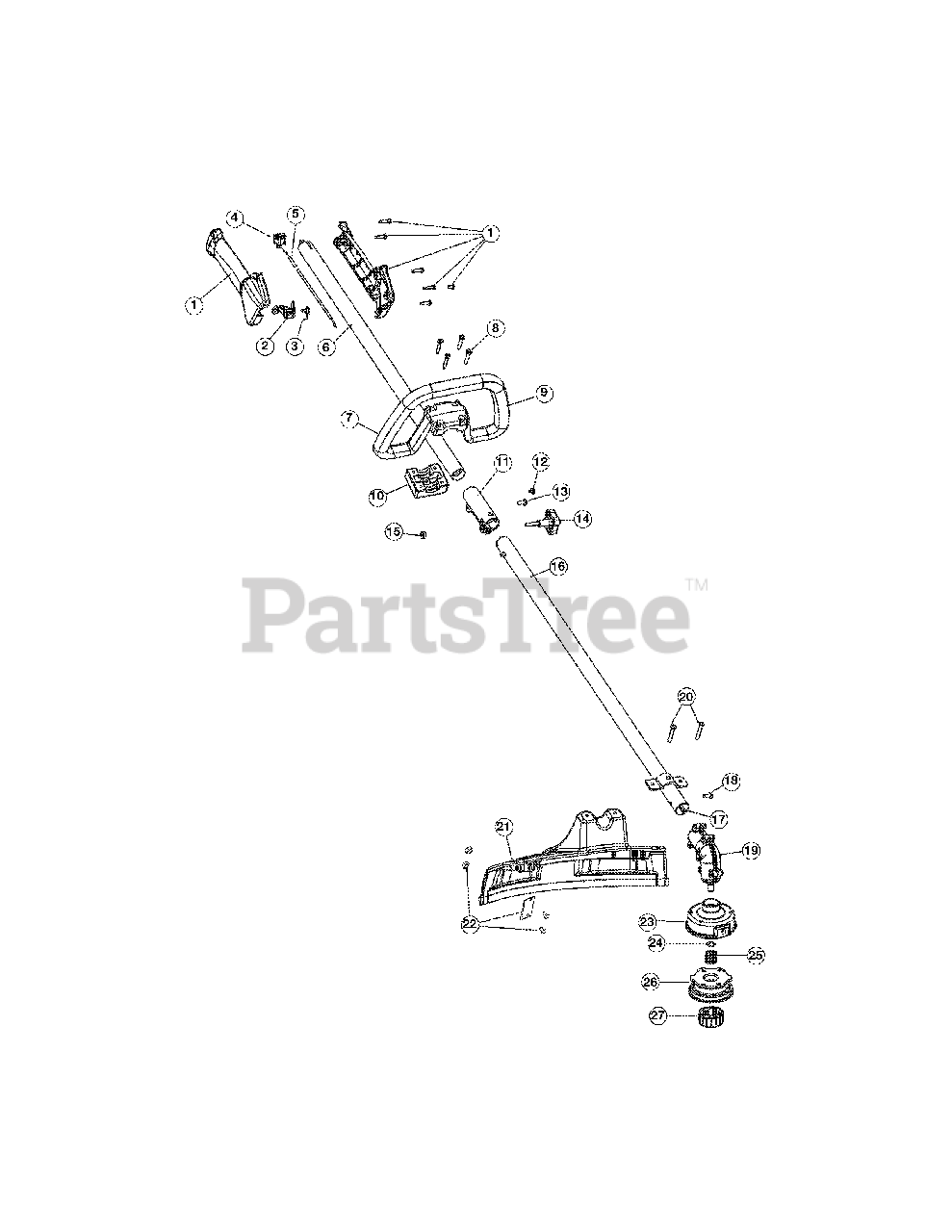

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (Incl. 2-4)

$21.99

$

In Stock, Qty 7

0

2

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

5

MTD 753-05266

Throttle Cable Assembly

$20.99

$

In Stock, Qty 12

0

6

MTD 753-04344

Upper Drive Shaft Housing Assembly

$85.99

$

In Stock, only 3 left!

0

7

MTD 791-180869

Deluxe D-Handle Assembly (Incl. 8-10)

Note: (No Longer Available)

$

$

Not available

8

MTD 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

9

MTD 791-182167

D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

Bottom Clamp

Note: (No Longer Available)

$

$

Not available

11

MTD 753-1190

Split Boom Coupler (Incl. 12-15)

$23.99

$

In Stock, only 1 left!

0

12

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 6

0

13

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

14

MTD 791-181981

Adjustment Knob (Incl. 15)
(Superseded to 697-00661-9)

$

$

Not available

15

MTD 712-04018A

Knob Retaining Nut

$4.49

$

In Stock, Qty 5

0

16

MTD 753-06139

Lower Drive Shaft Housing Assembly

$20.99

$

In Stock, Qty 20+

0

17

MTD 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

18

MTD 7039

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

19

MTD 753-06571

Gear Box Assembly (Incl. 18 & 23-27)

$45.99

$

Usually ships in 3-6 days

0

20

MTD 753-06125

Shield Mounting Screws

$6.99

$

In Stock, only 4 left!

0

21

MTD 753-06123

Shield Assembly (Incl. 22)

$20.99

$

In Stock, Qty 10

0

22

MTD 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 5

0

23

MTD 753-04284

Outer Spool Assembly

$28.99

$

In Stock, only 1 left!

0

24

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

25

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 8

0

26

MTD 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

27

MTD 791-153066B

Bump Knob Assembly

$13.99

$

In Stock, Qty 20+

0

MTD 953-1156

Reel & Line Assembly

Note: (Not Shown)

$31.99

$

In Stock, only 1 left!

0

MTD 791-682075B

Shoulder Strap

Note: (Not Shown)

$38.99

$

Usually ships in 3-6 days

0

MTD 753-05778

Fixed Line Insert

Note: (Not Shown)

$7.99

$

Usually ships in 3-6 days

0
