MP 450 D 20 (866079-00) - Murray 450E Series 20" Walk-Behind Mower (2016) Deck & Engine Group (866079) Parts Diagram

450E Series 20" Walk-Behind Mower

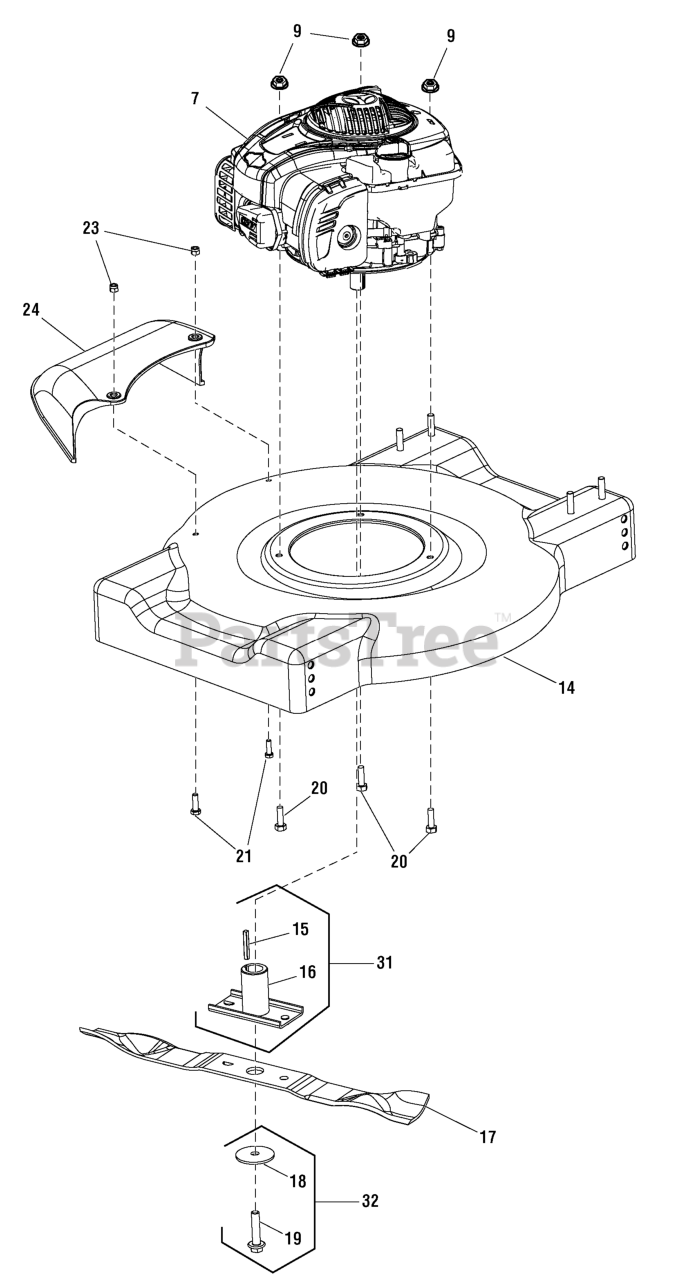

Deck & Engine Group (866079) Parts Diagram

  • Title

7

Murray 08P502-0086-H1

* ENGINE, Briggs & Stratton 450E Series

$

$

Currently unavailable

9

Murray 707206

NUT, M8

$

$

Currently unavailable

14

Murray 707329

DECK

$376.99

$

Usually ships in 2-12 days

0

15

Murray 707187

KEY

$3.99

$

Usually ships in 2-12 days

0

16

Murray 707331

ADAPTER, Blade

$18.99

$

Usually ships in 2-12 days

0

17

Murray 707332

BLADE

$28.99

$

Usually ships in 2-12 days

0

18

Murray 707333

WASHER, Flat

$4.99

$

Usually ships in 2-12 days

0

19

Murray 707334

BOLT, Blade, 3/8-24

$3.99

$

Usually ships in 2-12 days

0

20

Murray 707609

BOLT, Flange, M8 x 35

$3.99

$

Usually ships in 2-12 days

0

21

Murray 707336

BOLT, M6 x 20

$3.49

$

Usually ships in 2-12 days

0

23

Murray 707201

NUT, M6

$2.99

$

Usually ships in 2-12 days

0

24

Murray 707338

CHUTE, Side Discharge

$34.99

$

Usually ships in 2-12 days

0

31

Murray 707421

KIT, Blade Adapter

Note: (Includes Ref. Nos. 15 & 16)

$16.99

$

Usually ships in 2-12 days

0

32

Murray 707420

KIT, Hardware, Blade Bolt

Note: (Includes Ref. Nos. 18 & 19)

$4.49

$

Usually ships in 2-12 days

0
