MP 429 (41AD429C995) - MTD Pro String Trimmer General Assembly Parts Diagram

Pro String Trimmer

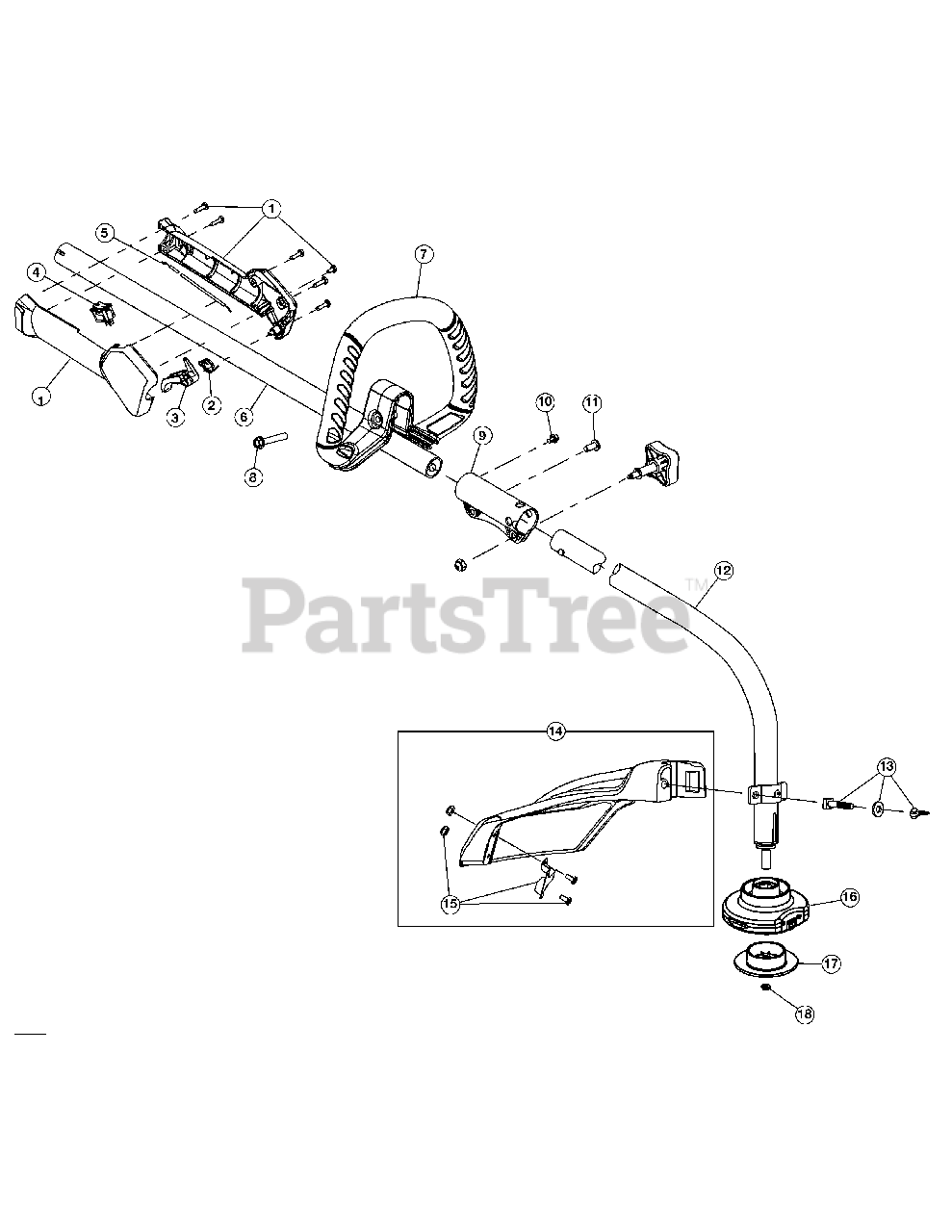

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (Incl. 2 - 4)

$21.99

$

In Stock, Qty 7

0

2

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

3

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

4

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

5

MTD 753-05266

Throttle Cable Assembly

$20.99

$

In Stock, Qty 12

0

6

MTD 753-04236

Upper Drive Shaft Housing Assembly

$94.99

$

In Stock, Qty 5

0

7

MTD 753-06039

D-Handle Assembly (Incl. 8)

$11.99

$

Usually ships in 3-6 days

0

8

MTD 753-06040

Bolt

$6.99

$

In Stock, only 1 left!

0

9

MTD 753-1190

Split Boom Coupler (Incl. 10 and 11)

$23.99

$

In Stock, only 1 left!

0

10

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 6

0

11

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

12

MTD 753-04508

Lower Drive Shaft Housing Assembly

$80.99

$

In Stock, Qty 6

0

13

MTD 753-04282

Shield Mounting Hardware

$25.99

$

Usually ships in 3-6 days

0

14

MTD 753-04283

Shield Assembly (Incl. 15)

$50.99

$

In Stock, only 1 left!

0

15

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

16

MTD 753-05430

Bump Head Assembly (Incl. 17 and 18)

$

$

Not available

17

MTD 731-05714

Glide Cap

$17.99

$

In Stock, Qty 8

0

18

MTD 712-04018A

Lock Nut

$4.49

$

In Stock, Qty 5

0
