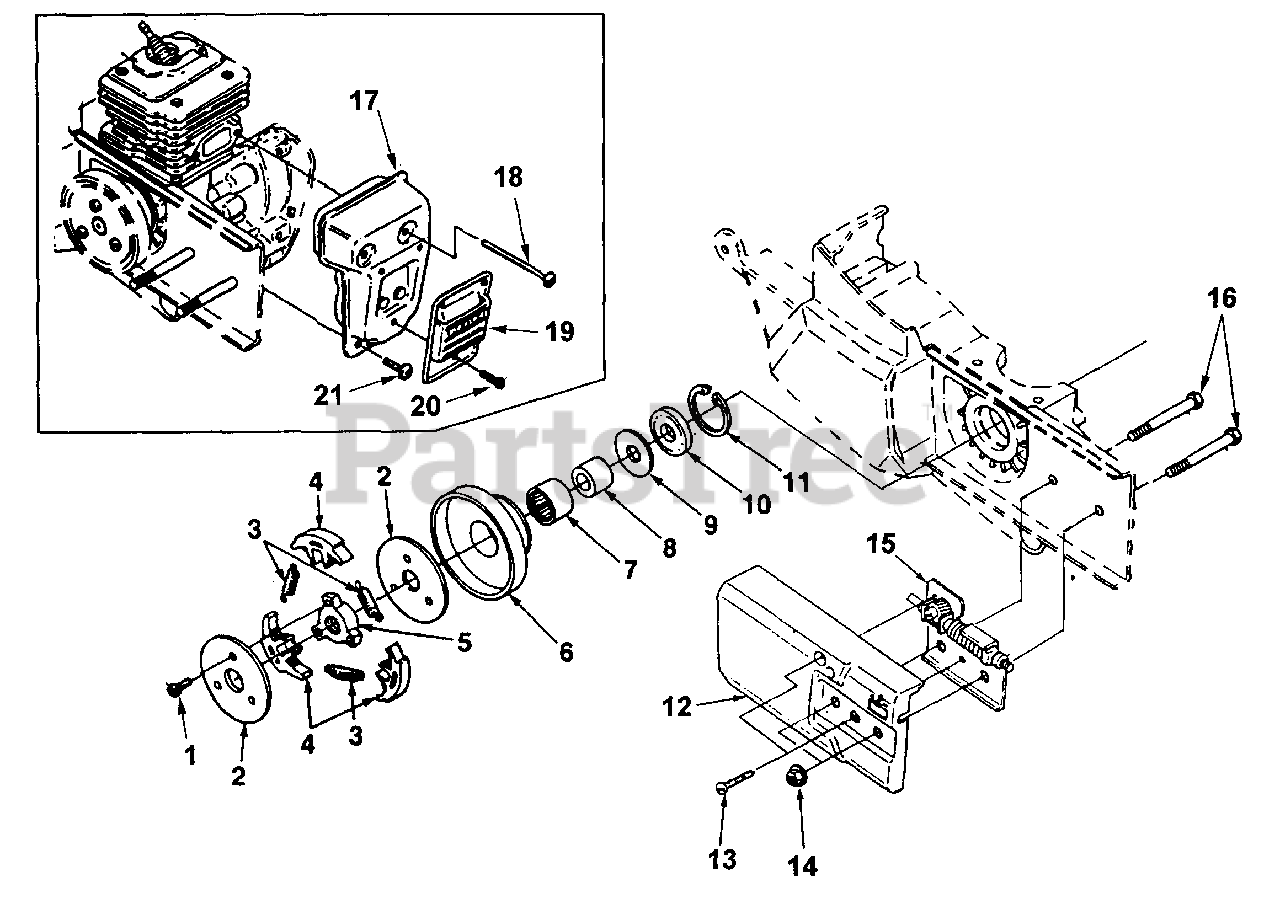

MP 38i (UT-05081) - Homelite Multi Purpose Saw Clutch - Exhaust System Parts Diagram

Multi Purpose Saw

Clutch - Exhaust System Parts Diagram

  • Title

1

Homelite 82253

SCREW-Machine Hex Hd. (8-32 X 3/8")

Note: (Torque Specs 55 In/Lbs, [6.2 Nm], Loctite Required Blue 242)

$

$

Not available

2

Homelite 93628

COVER-Clutch

$

$

Not available

3

Homelite 93638A

SPRING-Clutch
(Superseded to UP06462)

$

$

Not available

4

Homelite 79239

SHOE-Clutch

$

$

Not available

5

Homelite 02334

CLUTCH-Spider

Note: (Torque Specs 400 In/Lbs, [45.2 Nm], Loctite Required Red 262)

$

$

Not available

6

Homelite A49543

PULLEY-Drum & Bearing
(Superseded to UP07077)

Note: (Includes 7)

$

$

Not available

7

Homelite 46071

BEARING-Needle

$

$

Not available

8

Homelite 46070

RACE-Inner

$

$

Not available

9

Homelite 46135

WASHER-Thrust

$

$

Not available

10

Homelite 98197A

SEAL-Main
(Superseded to UP06470)

$

$

Not available

11

Homelite 289221

RETAINER-Bearing

$

$

Not available

12

Homelite A02329A

CLUTCH-Cover
(Superseded to UP07156)

$

$

Not available

13

Homelite 82575

SCREW- Taptite (8-32 x 5/8")
(Superseded to 660639001)

Note: (Torque Specs 20 In/Lbs, [2.2 Nm])

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 81282

NUT-Hex Flange (5/16-18)
(Superseded to UP03492)

Note: (Torque Specs 140 In/Lbs, [15.8 Nm])

$4.99

$

Usually ships in 3-7 days

0

15

Homelite A03879A

GEAR KIT
(Superseded to UP07101)

$

$

Not available

16

Homelite 02327

BOLT-Wheel Arm

$

$

Not available

17

Homelite A02287

MUFFLER
(Superseded to UP06363)

$

$

Not available

18

Homelite 82574

SCREW-Truss Hd. (10-24 x 2 1/2")

Note: (Torque Specs 55 In/Lbs, [6.2 Nm])

$

$

Not available

19

Homelite A98747

CAP- Muffler

$

$

Not available

20

Homelite 80983

SCREW-Machine Hex Hd. (8-32 x 1/2")
(Superseded to 80560)

$

$

Not available

21

Homelite 966201

SCREW-Torx (10-24 x 1/2")
(Superseded to UP07201)

Note: (Torque Specs 55 In/Lbs, [6.2 Nm])

$4.99

$

Usually ships in 3-7 days

0
