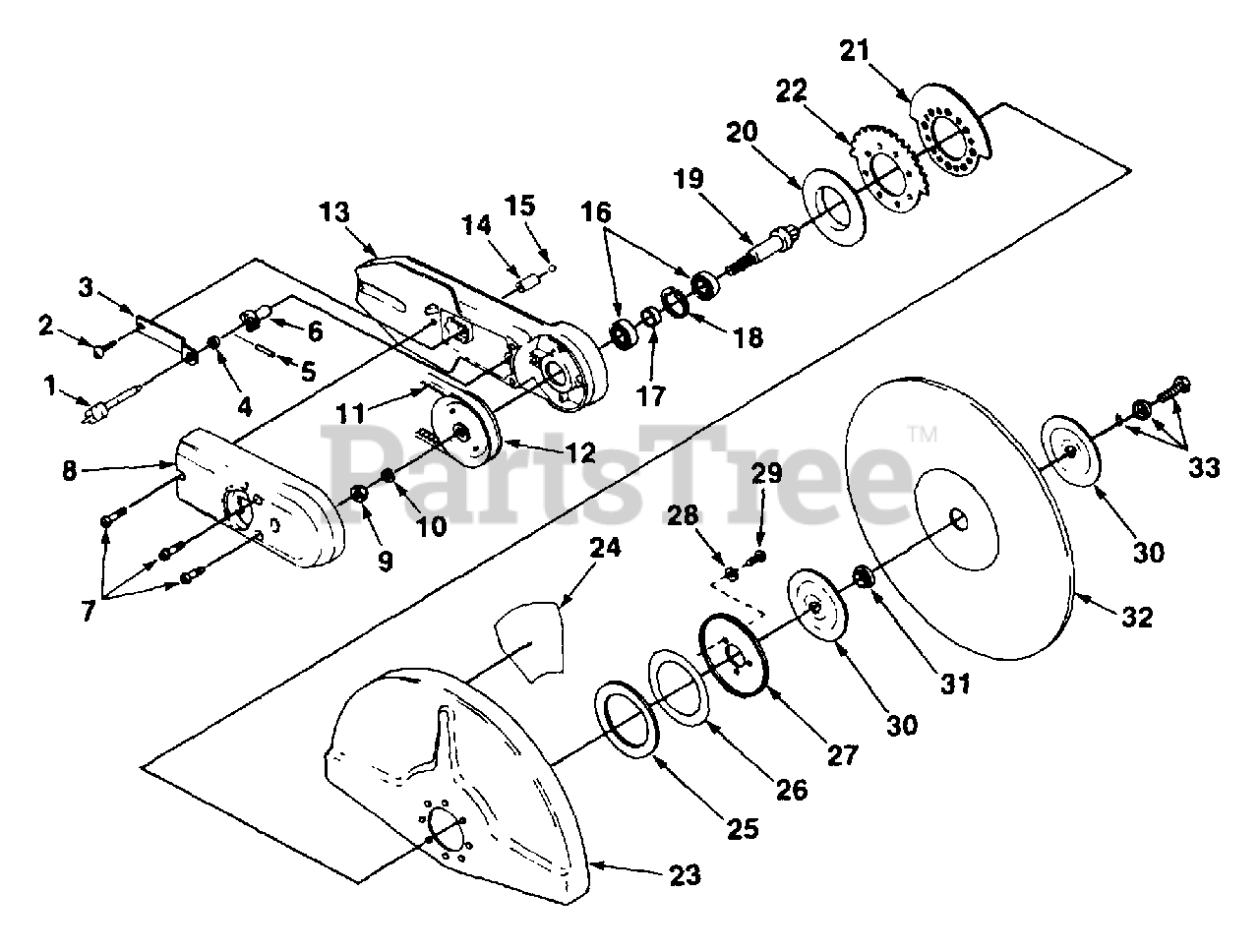

MP 38i (UT-05061) - Homelite Multi Purpose Saw Wheel Arm Assembly Parts Diagram

Multi Purpose Saw

Wheel Arm Assembly Parts Diagram

  • Title

1

Homelite A00660

KNOB & PIN
(Superseded to UP07158)

$

$

Not available

2

Homelite 966201

SCREW - Truss Hd (10-24 x 1/2")
(Superseded to UP07201)

Note: Torque Specs: 55 In/Lbs; 6.2 Nm; RED 262 Locktite Required

$4.99

$

Usually ships in 3-7 days

0

3

Homelite 01923

PLATE Spring

$

$

Not available

4

Homelite 01922

SPACER - Adjusting Pin

$

$

Not available

5

Homelite JA461359

PIN - Roll 1

$

$

Not available

6

Homelite 01921

SLEEVE - Cam

$

$

Not available

7

Homelite 95792

SCREW - Round Hd (10-24 x 23/32")

Note: Torque Specs: 35 In/Lbs; 3.9 Nm

$

$

Not available

8

Homelite 07704

BELT - Cover

$

$

Not available

9

Homelite 02423

NUT - Hex
(Superseded to UP07763)

Note: Torque Specs: 540 In/Lbs; 6.1 Nm; RED 262 Locktite Required

$

$

Not available

10

Homelite JA446148

WASHER - Lock (7/16)

$

$

Not available

11

Homelite 46068

BELT - V-Drive
(Superseded to UP06392)

$

$

Not available

12

Homelite A02891

PULLEY & HUB
(Superseded to UP06371)

$

$

Not available

13

Homelite 076563A

ARM - Wheel
(Superseded to PS01197)

$

$

Not available

14

Homelite 02267

SNUBBER

$

$

Not available

15

Homelite 00568

STEEL BALL

$

$

Not available

16

Homelite 63107

BEARING - Ball

$

$

Not available

17

Homelite 01916

SPACER - Bearing

$

$

Not available

18

Homelite PS31746

RING - Retaining
(Superseded to UP06391)

$

$

Not available

19

Homelite 019061

SHAFT - Wheel

$

$

Not available

20

Homelite 01915

COLLAR - Wheel Guard

$

$

Not available

21

Homelite 01914A

PAD - Adjuster

$

$

Not available

22

Homelite 01913

DETENT - Adjuster

$

$

Not available

23

Homelite A04647A

WHEEL GUARD & DECAL - 12"

$337.99

$

Usually ships in 3-7 days

0

24

Homelite 04645A

DECAL - Caution

$

$

Not available

23

Homelite A07696

WHEEL GUARD & DECAL - 14"
(Superseded to UP07073)

$

$

Currently unavailable

24

Homelite 04645A

DECAL - Caution

$

$

Not available

25

Homelite 01912

WASHER - Rubber

$14.99

$

Usually ships in 3-7 days

0

26

Homelite 0191101

SHIM - .020"

$

$

Currently unavailable

26

Homelite 0191102

SHIM - .030"

Note: Alt. Part

$

$

Currently unavailable

27

Homelite 01910

WASHER - Spring

$

$

Not available

28

Homelite 95935

WASHER (#12 - 11/16)

$

$

Not available

29

Homelite 966201

SCREW - Truss Hd (10-24 x 1/2")
(Superseded to UP07201)

Note: Torque Specs: 55 In/Lbs; 6.2 Nm

$4.99

$

Usually ships in 3-7 days

0

30

Homelite 019091A

FLANGE - Wheel

$

$

Not available

31

Homelite 01902

SPACER (1")
(Superseded to UP05608)

$

$

Not available

Homelite 01903

SPACER (22mm)

$

$

Not available

Homelite 01907

SPACER (20mm)
(Superseded to UP05609)

$

$

Not available

32

WHEEL

$

$

Not available

33

Homelite A03412

BOLT & WASHER
(Superseded to UP07140)

Note: Torque Specs: 55 In/Lbs; 6.2 Nm

$

$

Not available
