MP 38 (UT-05079) - Homelite 14" Multi Purpose Saw Starter - Ignition Parts Diagram

14" Multi Purpose Saw

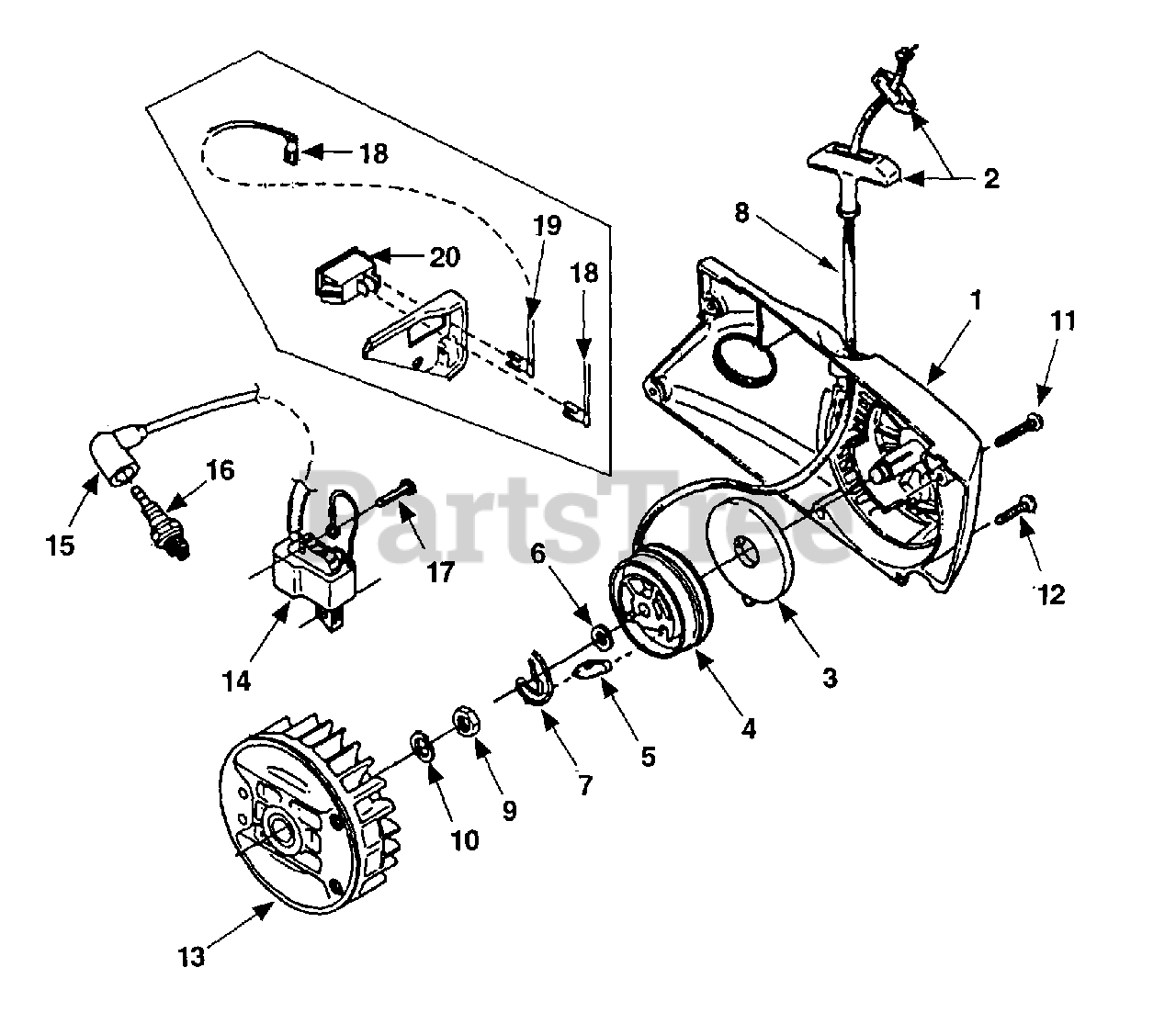

Starter - Ignition Parts Diagram

  • Title

1

Homelite A03884A

STARTER (Complete)
(Superseded to UP07071A)

Note: (Includes 2-8)

$125.99

$

Usually ships in 3-7 days

0

2

Homelite A69962B

GRIP-Starter (w/insert)

$19.99

$

Usually ships in 3-7 days

0

3

Homelite A97908

SPRING & CONTAINER
(Superseded to 300982011)

$

$

Not available

4

Homelite A03882

PULLEY ASSEMBLY
(Superseded to UP05972)

Note: (Includes 5-7)

$39.99

$

Usually ships in 3-7 days

0

5

Homelite 01274

WASHER-Thrust

$

$

Not available

6

Homelite 98332A

PAWL-Starter

$

$

Not available

7

Homelite 03750B

CLIP-Retainer

$

$

Not available

8

Homelite PS97500

ROPE-Starter (45")

$

$

Not available

9

Homelite 81124A

NUT-Jam (3/8 - 24)

Note: (Torque Specs 225 In/Lbs, [25.4 Nm])

$

$

Not available

10

Homelite 83102

WASHER-Lock (3/8")

$

$

Not available

11

Homelite 82556

SCREW-Truss Hd. (10-24 x 1 1/4")

Note: (Torque Specs 55 In/Lbs, [6.2 Nm])

$2.49

$

Usually ships in 3-7 days

0

12

Homelite UP03899

SCREW (10-24 x 3/4")

Note: (Torque Specs 55 In/Lbs, [6.2 Nm])

$2.99

$

Usually ships in 3-7 days

0

Homelite UP03701

IGNITION MODULE KIT

Note: (Includes 13 & 14)

$

$

Not available

13

Homelite UP03630

ROTOR

$

$

Not available

14

Homelite UP03631

IGNITION MODULE
(Superseded to UP07924)

$

$

Not available

15

Homelite A02597

SPARK PLUG BOOT KIT

$

$

Not available

16

Homelite UP04093

SPARK PLUG (RCJ6Y) (Resistor)
(Superseded to 98217S)

Note: (Torque Specs 120-180 In/Lbs, [13.6-20.3 Nm])

$4.49

$

In Stock, Qty 20+

0

17

Homelite UP04086

SCREW-Pan Hd (8-32 x 5/8")
(Superseded to 82575)

Note: (Torque Specs 20 In/Lbs, [2.2 Nm], Loctite Required RED 262)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite A03556

GROUND WIRE

$

$

Not available

19

Homelite A02284

IGNITION GROUND WIRE
(Superseded to UP07151)

$

$

Not available

20

Homelite 01802

SWITCH
(Superseded to UP06786)

$

$

Not available
