MP 38 (UT-05078) - Homelite 12" Multi Purpose Saw Handles Parts Diagram

12" Multi Purpose Saw

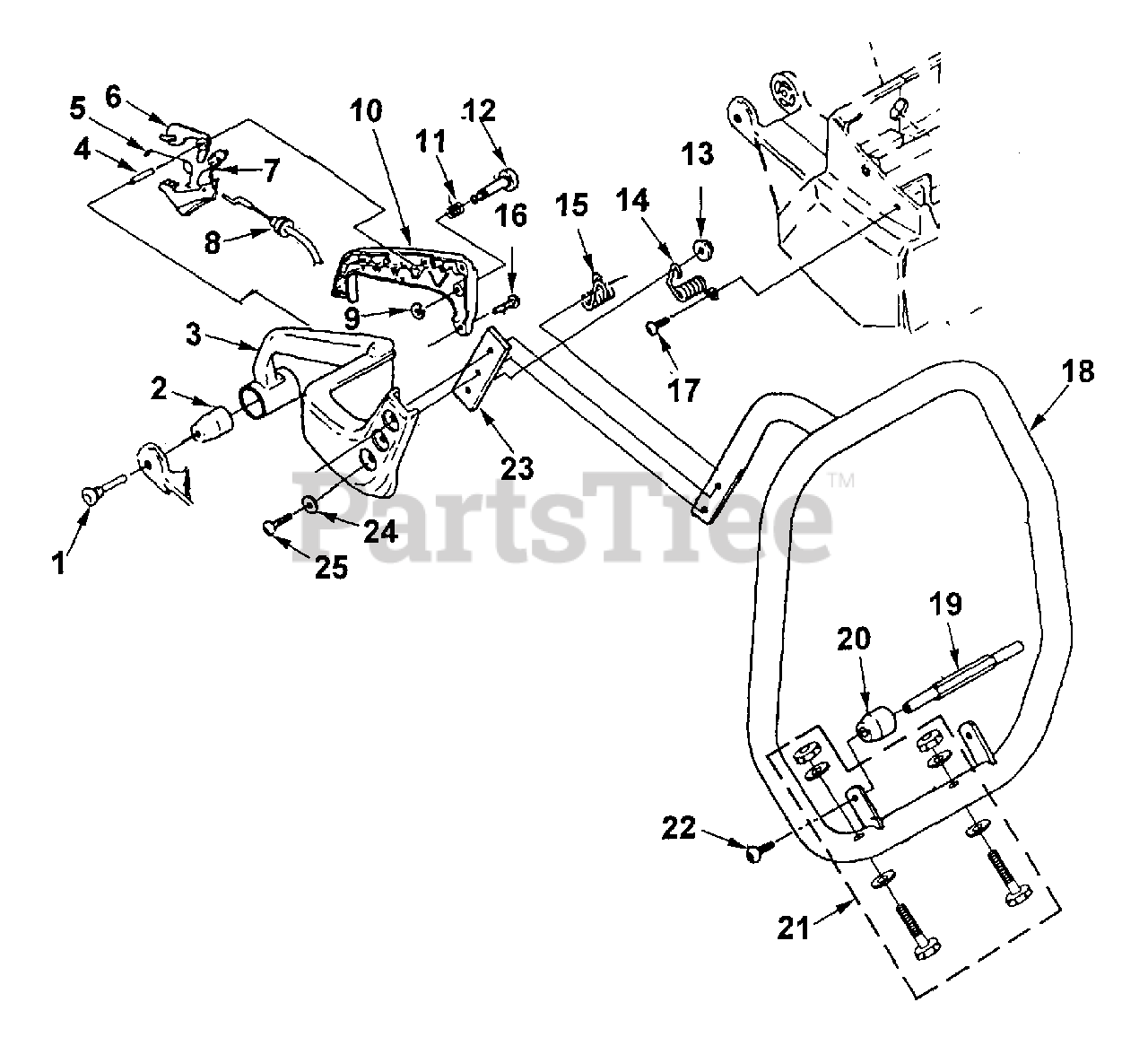

Handles Parts Diagram

  • Title

1

Homelite 93367

ISOLATOR PIN

Note: (Torque Specs 60 In/Lbs, [6.8 Nm], ANTI SEIZE Loctite Required)

$

$

Not available

2

Homelite 93368A

ISOLATOR-Vibration
(Superseded to UP06458)

$

$

Not available

3

Homelite 02318A

HANDLE-Rear
(Superseded to UP06369)

$

$

Not available

4

Homelite 68548

PIN-Trigger

$

$

Not available

5

Homelite 02316

SPRING-Throttle

$

$

Not available

6

Homelite 93385A

LOCK-Trigger

$

$

Not available

7

Homelite A03806A

TRIGGER & SWIVEL

$

$

Currently unavailable

8

Homelite A02315

CABLE-Throttle
(Superseded to UP07155)

$

$

Not available

9

Homelite 58409

RING-Retaining

$4.49

$

Usually ships in 3-7 days

0

10

Homelite 02319

COVER-Handle

$

$

Not available

11

Homelite 95020A

SPRING-Compression

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 95671

PIN-Throttle Lock
(Superseded to UP05997)

$2.49

$

In Stock, only 2 left!

0

13

Homelite 02330

NUT-Hex (10-24)
(Superseded to UP06527)

Note: (Torque Specs 40 In/Lbs, [4.5 Nm])

$

$

Not available

14

Homelite PS03535

SPRING-Isolation (Large)
(Superseded to UP06375)

$

$

Not available

15

Homelite PS03536

SPRING-Isolation (Small)
(Superseded to UP06376)

$

$

Not available

16

Homelite 82536

SCREW-Plastite (8-16 x 5/8")

Note: (Torque Specs 35 In/Lbs, [3.9 Nm])

$

$

Not available

17

Homelite 966201

SCREW-Torx Hd. (10-24 X 1/2")
(Superseded to UP07201)

Note: (Torque Specs 55 In/Lbs, [6.2 Nm])

$4.99

$

Usually ships in 3-7 days

0

18

Homelite A08326

HANDLE BAR

$

$

Not available

19

Homelite 02277A

SPACER
(Superseded to UP06362)

$

$

Not available

20

Homelite 973051A

ISOLATOR-Vibration
(Superseded to UP06468)

$

$

Not available

21

Homelite A03633

KIT-Wear Pad
(Superseded to UP07634)

$

$

Not available

22

Homelite 966201

SCREW-Torx Hd. (10-24 x 1/2")
(Superseded to UP07201)

Note: (Torque Specs 55 In/Lbs, [6.2 Nm])

$4.99

$

Usually ships in 3-7 days

0

23

Homelite 03078

STRAP, Reinforcing

$

$

Not available

24

Homelite 95935

WASHER (#12-11/16)

$

$

Not available

25

Homelite UP03899

SCREW-Truss Hd. (10-24 x 3/4")

$2.99

$

Usually ships in 3-7 days

0
